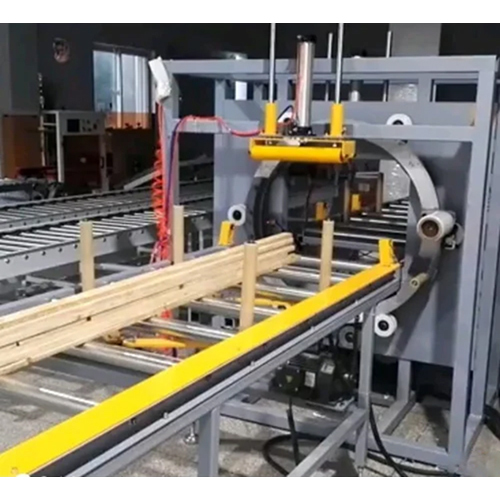

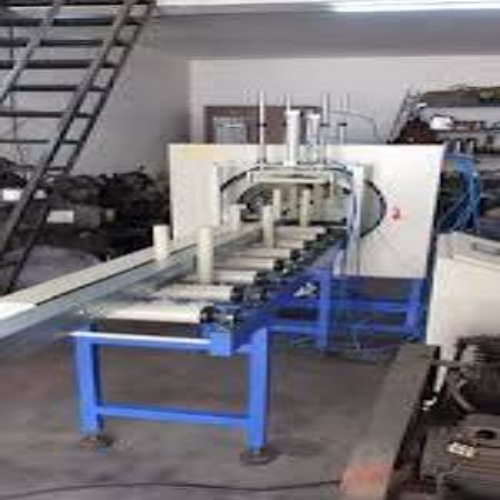

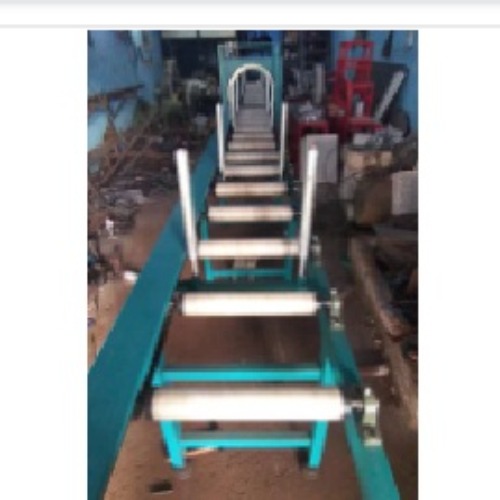

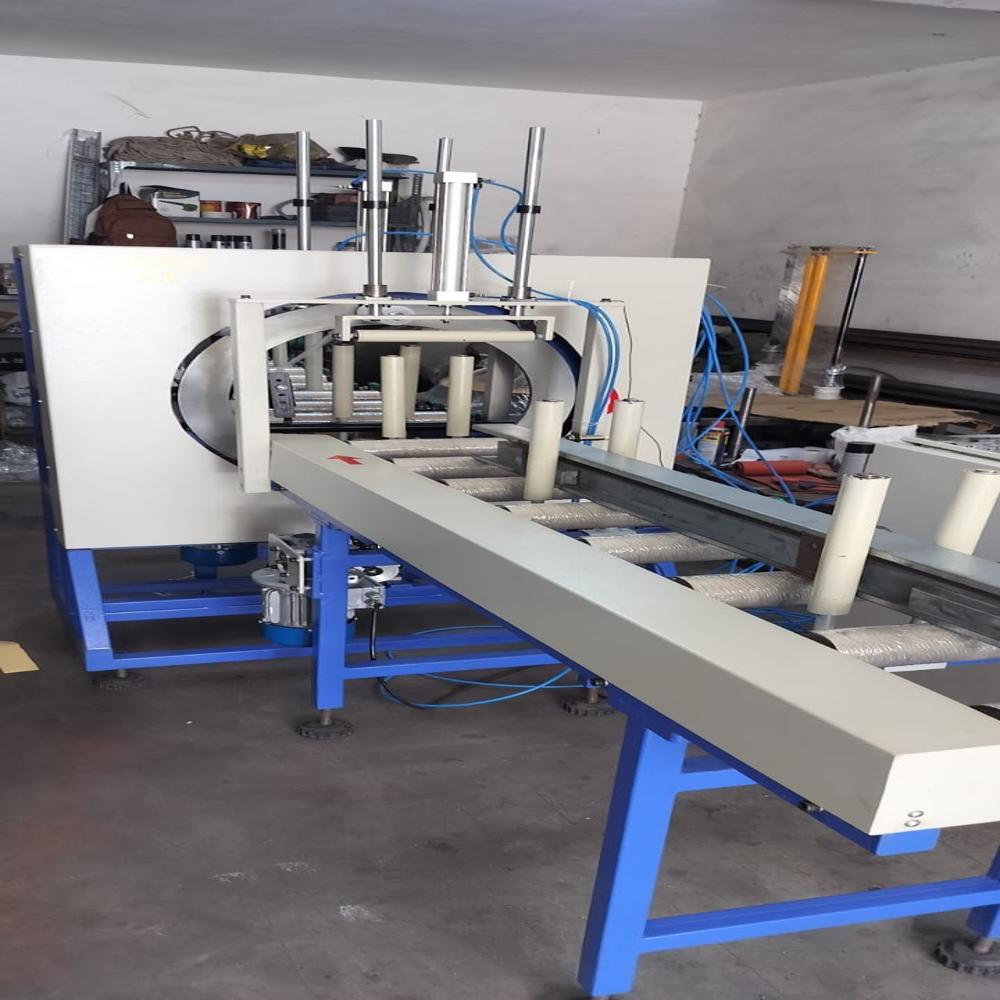

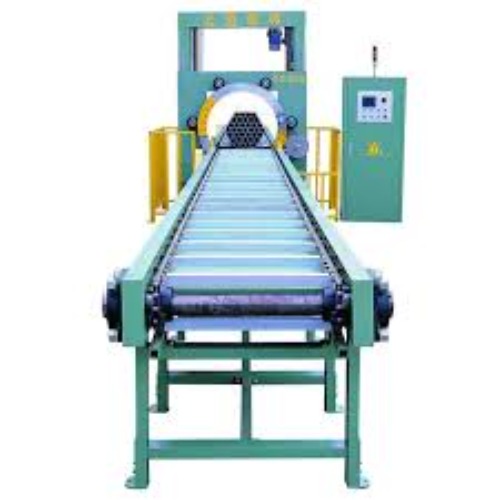

Orbital Stretch Wrapping Machine

Orbital Stretch Wrapping Machine Description

An Orbital Stretch Wrapping Machine is an advanced packaging machine designed to wrap stretch film around long, bulky, or irregularly shaped products using a rotating orbital ring system. The machine applies stretch film in a spiral pattern while the product passes horizontally through the center of the rotating ring, ensuring secure, uniform, and protective packaging. It is widely used for wrapping aluminum profiles, pipes, timber, doors, panels, furniture, coils, and industrial products. (fhopepack.com)

Key Features

• High-speed orbital ring wrapping system
• Suitable for long and oversized products
• Adjustable film overlap and tension control
• PLC and HMI touch-screen control system
• Variable ring and conveyor speed through VFD drives
• Automatic film clamping and cutting system
• Conveyor-based product handling
• Heavy-duty steel structure with stable operation
• Compatible with stretch film, PE film, woven tape, and paper
• Semi-automatic and fully automatic models available (robopac.com)

Working Principle

The product is placed on powered conveyors and moved through the center of a rotating orbital ring carrying the stretch film roll. As the ring rotates, the stretch film wraps spirally around the product with adjustable overlap and tension. The wrapping process provides secure load containment and protects the product from dust, moisture, scratches, and transit damage. (fhopepack.com)

Applications

• Aluminum and UPVC profiles
• Pipes and tubes
• Timber and wooden boards
• Furniture and doors
• Steel sections and metal products
• Textile and carpet rolls
• Cable trays and extrusion products
• Industrial and export packaging (joinpackmachines.com)

Advantages

• Provides tight and uniform wrapping
• Protects products from scratches, dust, and moisture
• Reduces manual packaging effort
• Increases packaging speed and productivity
• Minimizes packaging material wastage
• Suitable for continuous production lines
• Enhances product appearance and transportation safety (robopac.com)

Types of Orbital Stretch Wrapping Machines

1. Semi-Automatic Orbital Wrapper Manual loading with automatic wrapping.
2. Automatic Orbital Wrapper Fully integrated conveyor-based wrapping system.
3. Profile Orbital Wrapper Designed for aluminum and UPVC profiles.
4. Board and Panel Wrapper Suitable for doors, furniture, and wooden panels.
5. Pipe Orbital Wrapper Used for pipe and tube packaging. (fhopepack.com)

Typical Technical Specifications
