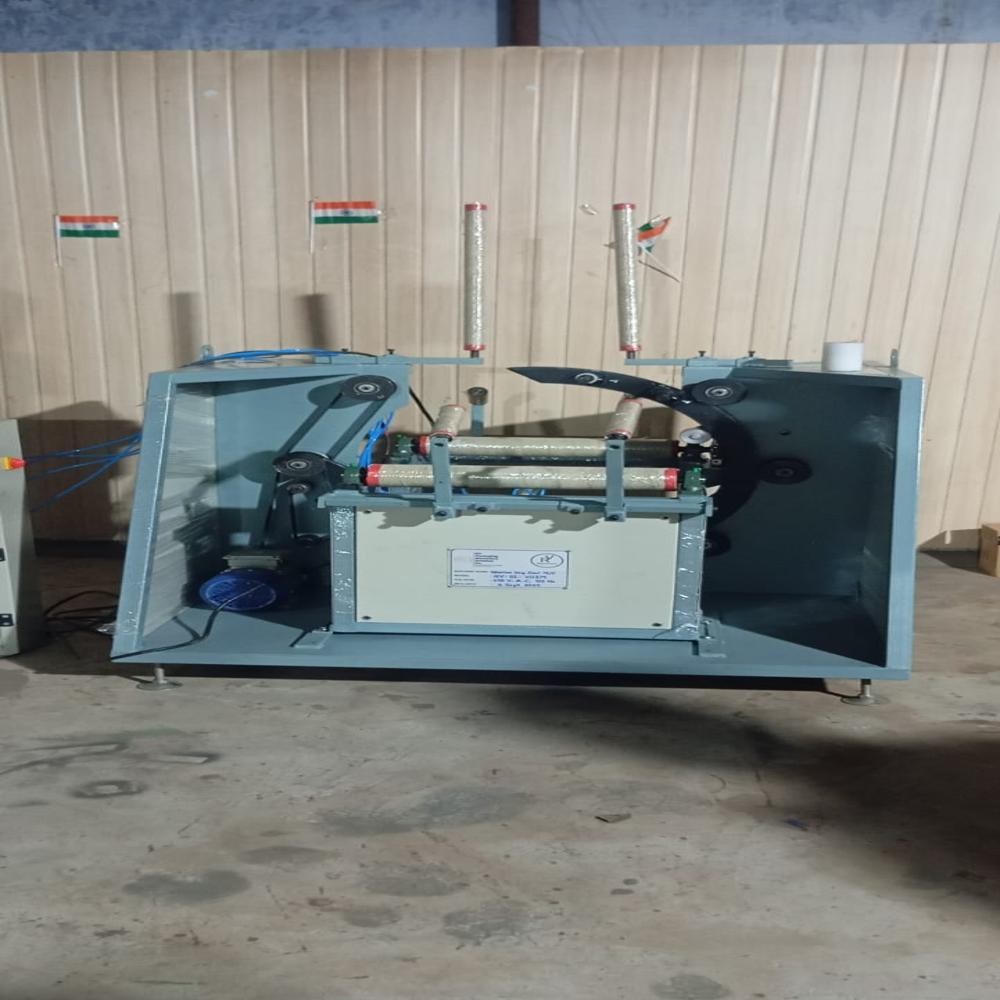

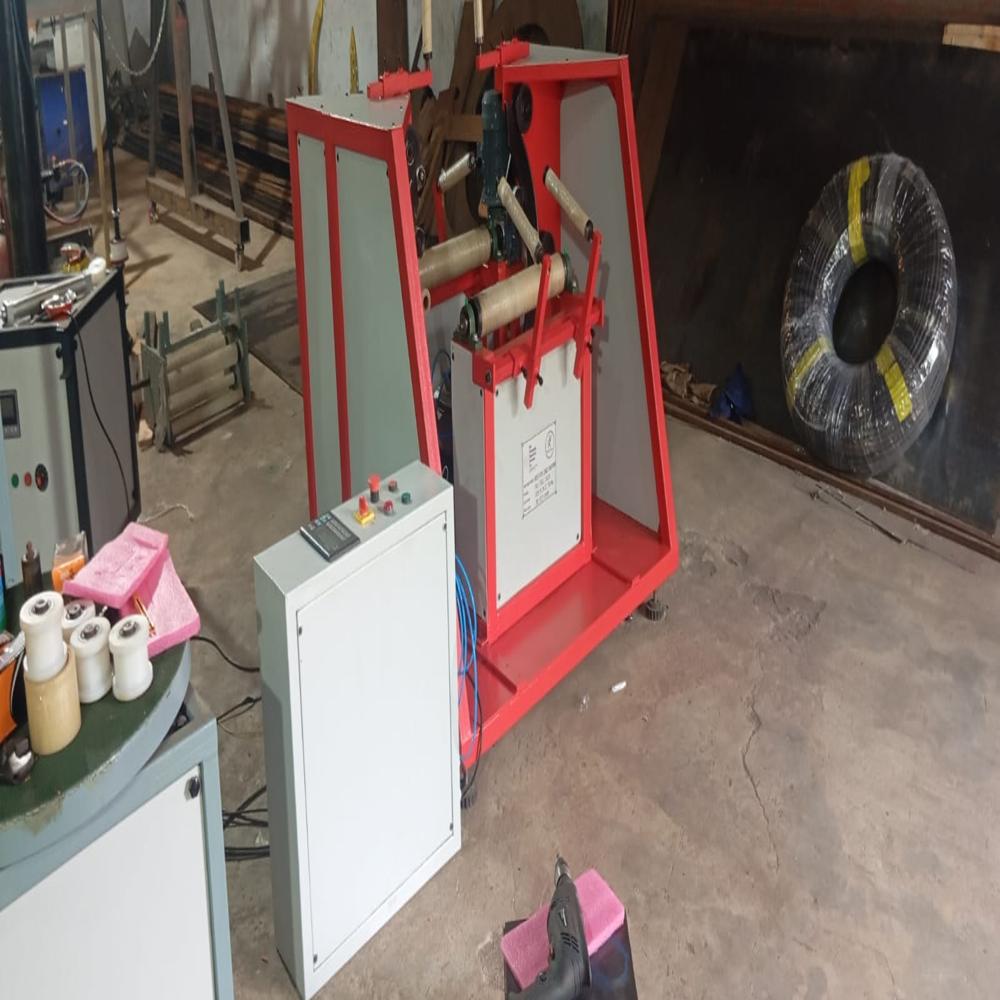

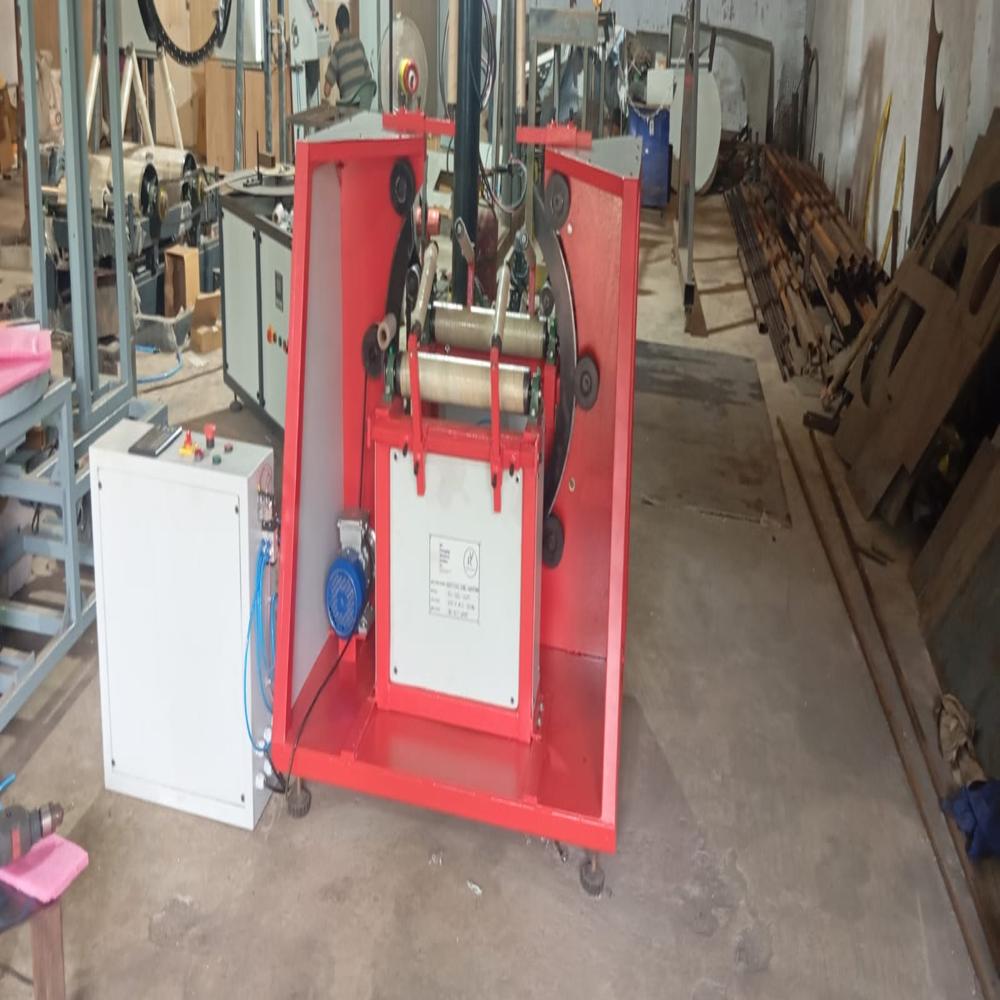

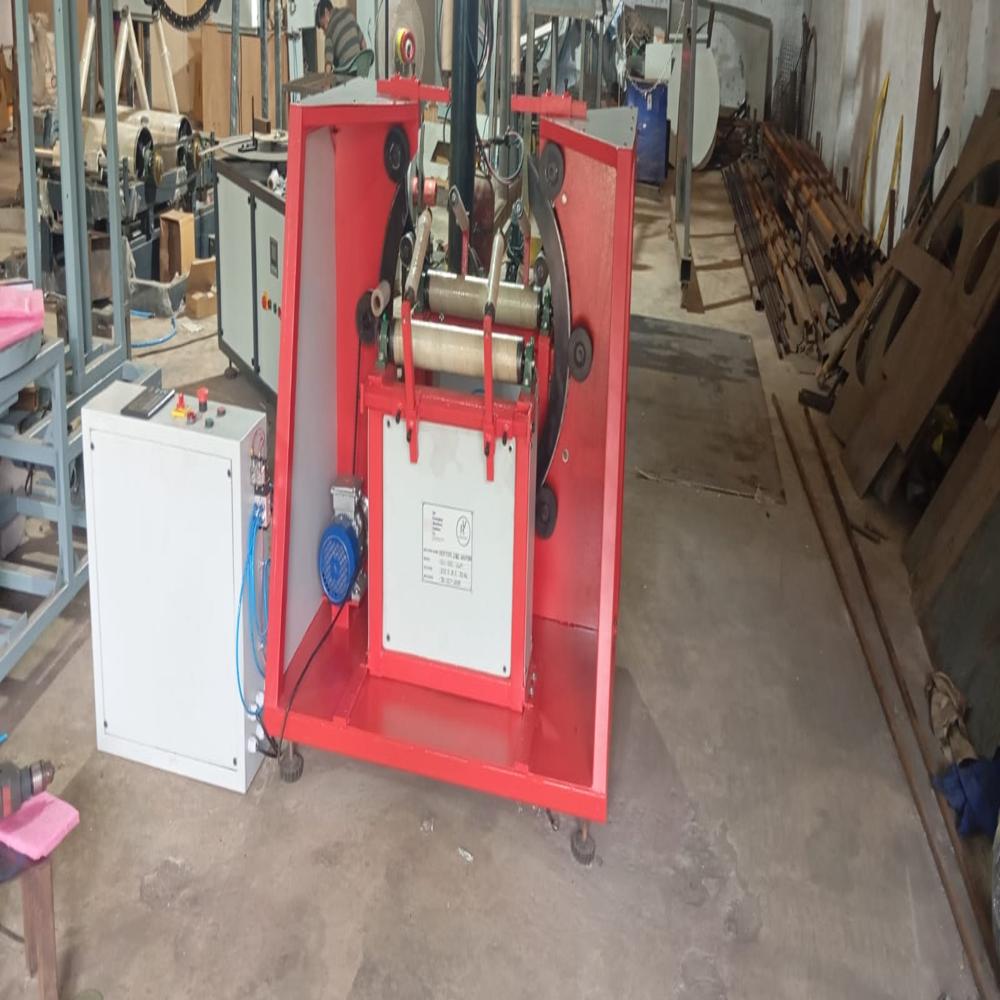

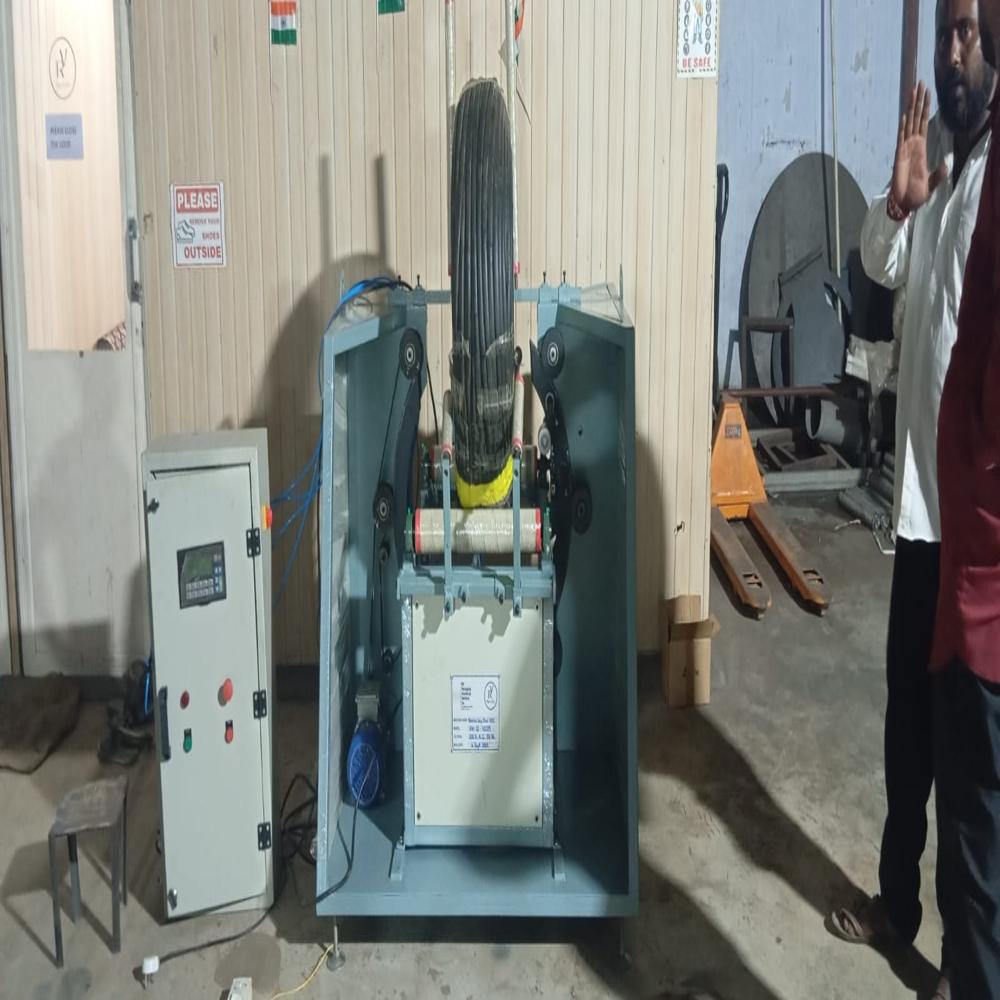

Vertical Drip Pipe Coil Wrapping Machine

Name: Vertical Drip Pipe Coil Wrapping Machine
Brand: R V Packaging Machinery Solution Co
Price: 280000.0 INR
Availability: InStock

Price 280000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vertical Drip Pipe Coil Wrapping Machine Specification

Product Type
Coil Wrapping Machine

Material
Mild Steel

Capacity
90 Pcs/hr

Computerized
Yes

Automatic Grade
Semi-Automatic

Voltage
415 Volt (v)

Power
1 Horsepower (HP)

Rotating Speed
70 RPM

Overlap Scope
Adjustable

Dimension (L*W*H)
750 X 900 X 1200 Millimeter (mm)

Weight (kg)
250 Kilograms (kg)

Color
Powder Coated

Warranty
1 Year

Vertical Drip Pipe Coil Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
1

Main Export Market(s)
North America, South America, Asia, Australia, Central America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Vertical Drip Pipe Coil Wrapping Machine

Vertical Drip Pipe Wrapping Machine Technical Specifications

A Vertical Drip Pipe Wrapping Machine is specially designed for spiral stretch wrapping of drip irrigation pipe coils, lateral pipe bundles, hose coils, and similar round products. The machine wraps the coil vertically through the eye using stretch film or HDPE material to provide secure, dustproof, moisture-resistant, and damage-free packaging during storage and transportation.

Technical Specifications

Parameter	Specification
Machine Type	Vertical Coil / Drip Pipe Wrapping Machine
Wrapping Method	Spiral / Periphery Stretch Wrapping
Automation Grade	Semi-Automatic / Automatic
Power Supply	415V AC, 3 Phase + Neutral + Earthing, 50 Hz
Power Consumption	2 kW
Coil Inner Diameter (ID)	350 mm 500 mm
Coil Outer Diameter (OD)	400 mm 1000 mm
Coil Width	100 mm 350 mm
Coil Weight Capacity	5 kg 50 kg
Wrapping Speed	15 45 sec/coil
Ring Rotation Speed	30 110 RPM Adjustable
Film Overlap Adjustment	10% 90% Adjustable
Stretch Film Width	Up to 60 mm 120 mm
Film Roll Core ID	55 mm 76 mm
Film Roll Outer Diameter	80 mm 150 mm
Machine Structure	Heavy Duty Mild Steel Construction
Control System	PLC + HMI Touch Screen
Drive System	AC Frequency Drive / VFD
Roller Type	Rubber Coated M.S. Rollers
Cutter Type	Automatic HSS Cutter
Pneumatic Requirement	2 5 Bar (Optional)
Machine Dimensions	Approx. 1250 1250 1250 mm
Machine Weight	Approx. 400 kg
Packaging Material	LLDPE Stretch Film / HDPE Film / PE Film
Safety Features	Emergency Stop, Safety Interlock, Soft Start & Stop
Application	Drip Pipe Coil, Lateral Pipe, GI Wire, Hose Pipe, Cable Coil Wrapping

Standard Features

Adjustable wrapping tension and overlap
PLC-based automatic operation
Variable speed control with inverter drives
Automatic film cutting and holding system
Vibration-free operation
Durable powder-coated structure
Low maintenance and energy-efficient design
Easy loading and unloading of coils

Drip irrigation pipe manufacturers
Agricultural pipe packaging
Flexible hose and cable coil packaging
GI wire and steel wire wrapping
Industrial coil and bundle wrapping
