Box Wrapping Machine

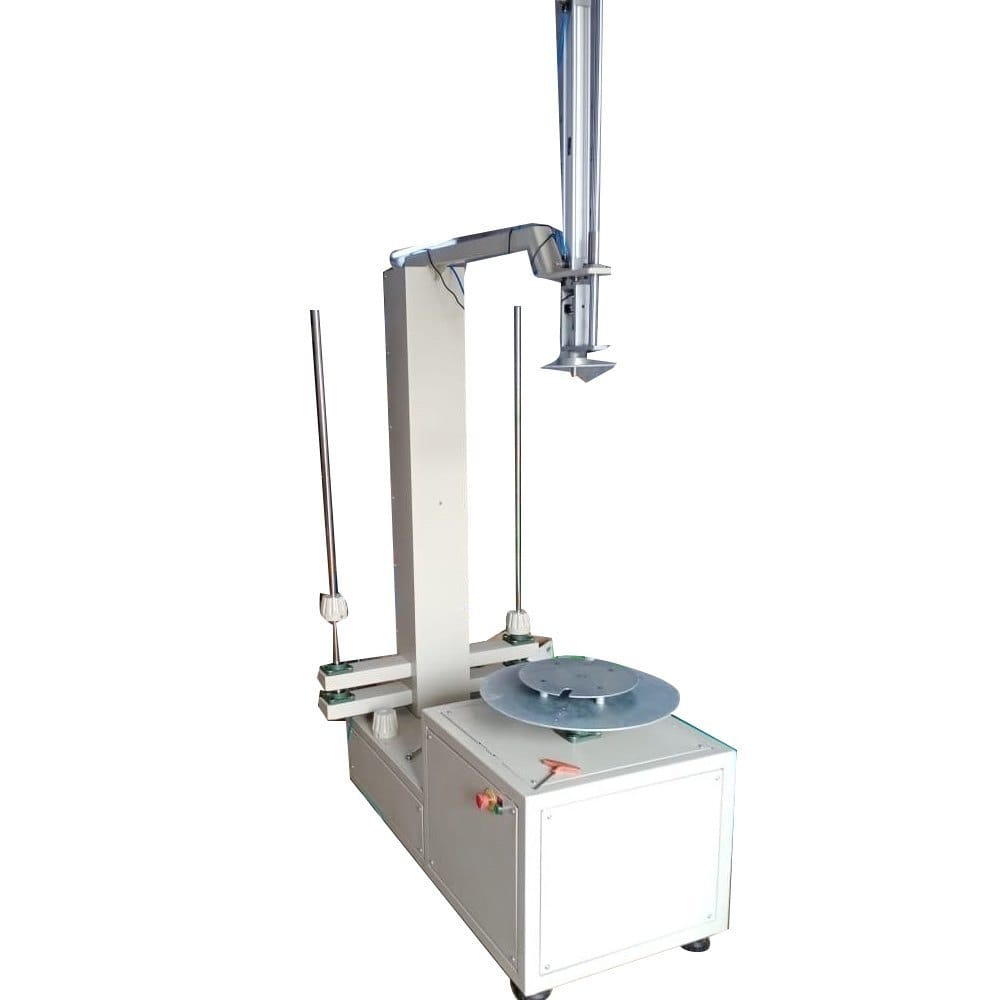

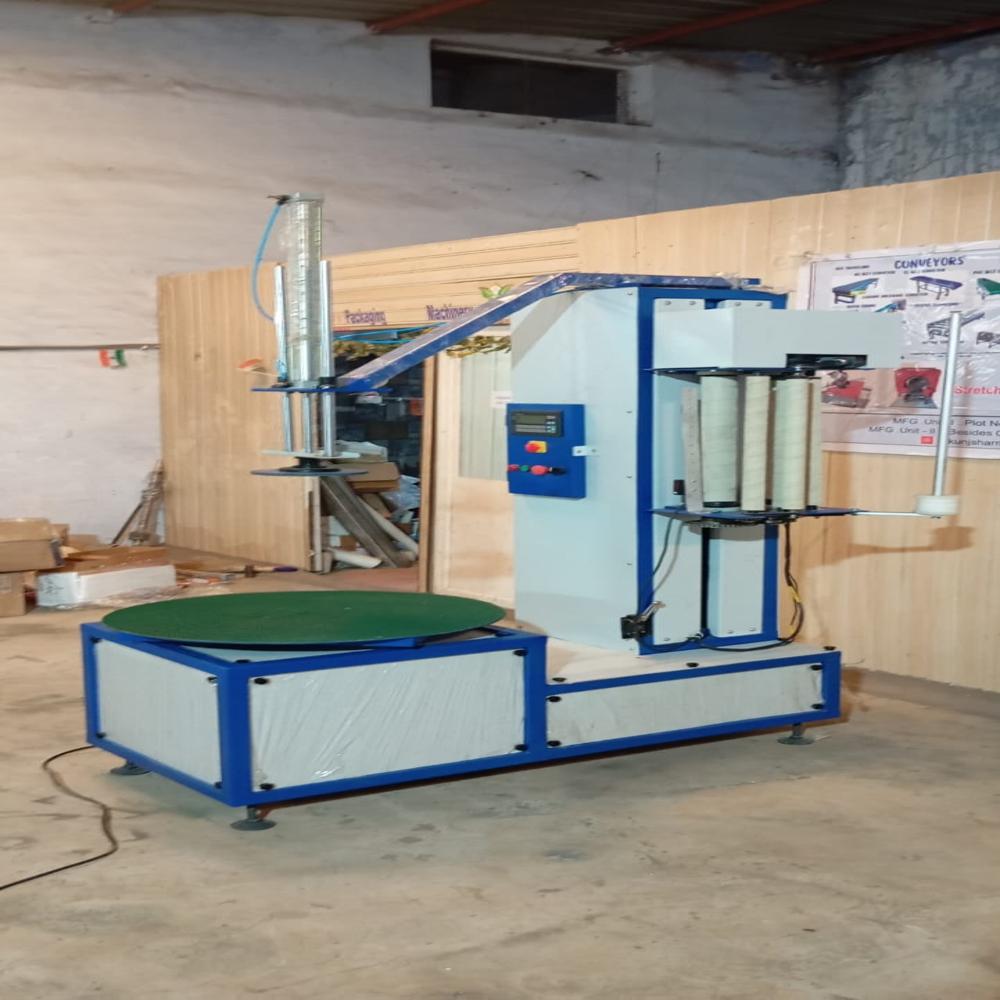

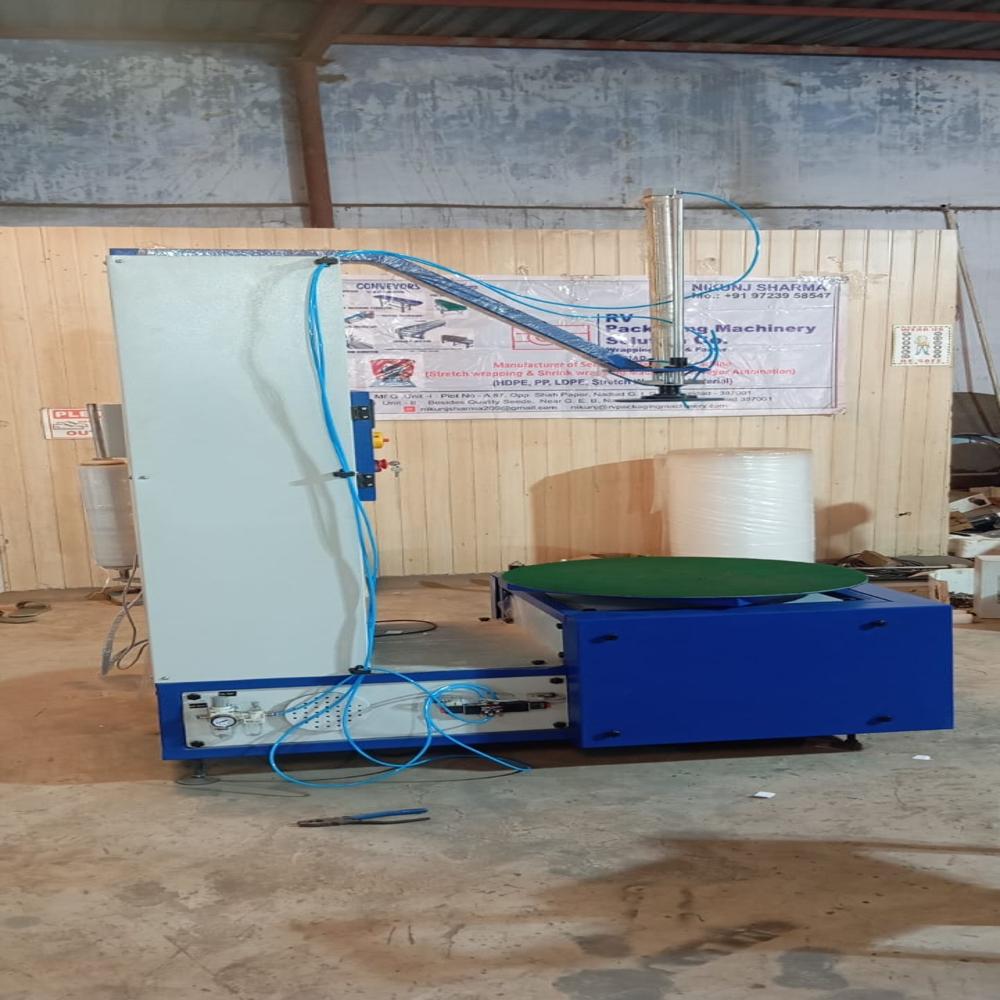

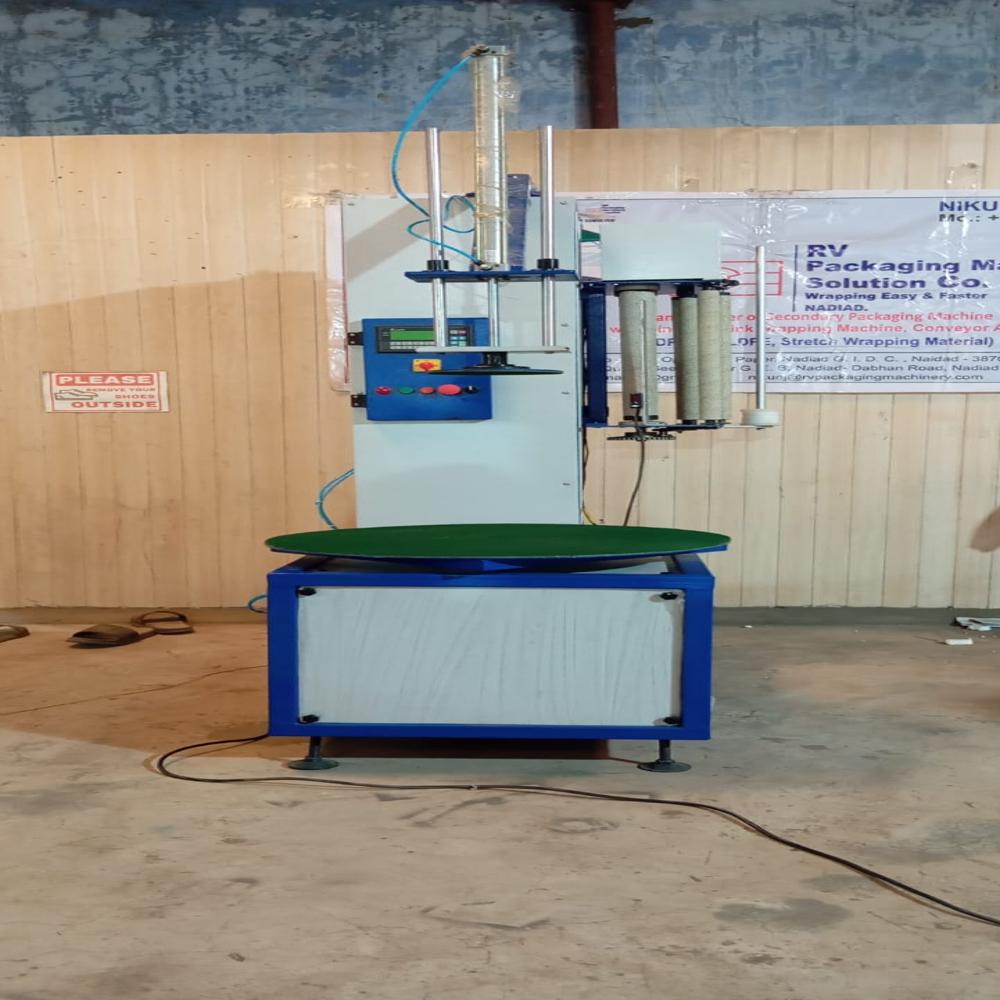

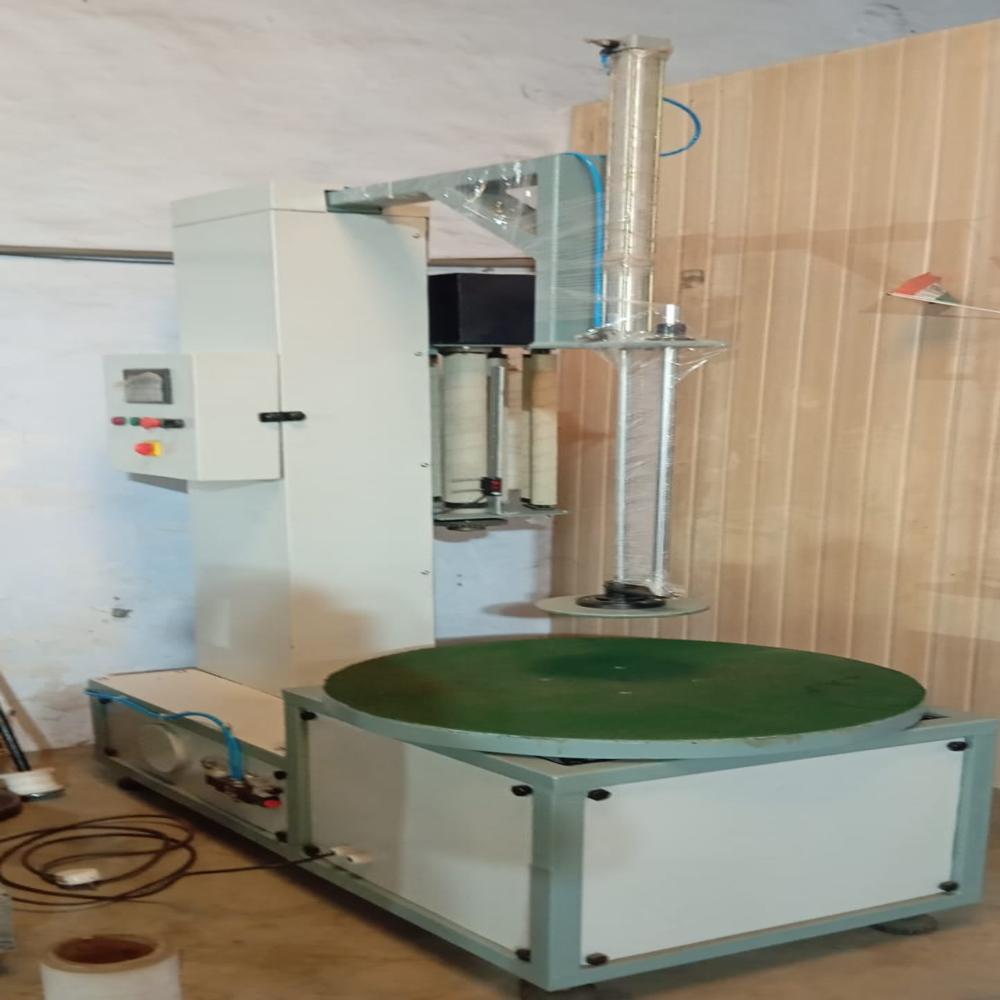

Box Stretch Wrapping Machine With Top Pneumatic Holding Description

A Box Stretch Wrapping Machine With Top Pneumatic Holding is a semi-automatic or automatic packaging machine designed to securely wrap cartons, boxes, and lightweight products using stretch film while stabilizing the load with a pneumatic top holding system. The top pneumatic holder applies controlled pressure on the box during rotation, preventing movement, tilting, or falling while ensuring tight and uniform wrapping. This machine is ideal for unstable, lightweight, or tall carton boxes used in logistics, pharmaceuticals, food, FMCG, and industrial packaging applications.

Key Features

• Pneumatic top holding system for load stabilization
• Adjustable turntable speed and film tension
• Power pre-stretch film carriage for film saving up to 300%
• Semi-automatic or automatic operation
• Suitable for lightweight and unstable boxes
• PLC or digital timer-based control system
• Adjustable wrapping cycles and overlap settings
• Heavy-duty mild steel structure with powder coating
• Low maintenance and easy operation
• Safety emergency stop system and stable wrapping process

Working Principle

The operator places the carton box on the rotating turntable and lowers the pneumatic top holder onto the box surface. Once the cycle starts, the turntable rotates while the stretch film wraps tightly around the product. The pneumatic top holding system keeps the box stable during wrapping, ensuring secure packaging without product displacement. After completion, the top holder lifts automatically for easy unloading.

Applications

• Pharmaceutical carton packaging
• Food and beverage boxes
• FMCG product wrapping
• Cosmetic and personal care products
• Electrical and electronic goods
• Courier and logistics packaging
• Industrial and export packaging

Advantages

• Prevents box movement during wrapping
• Provides tight and uniform film application
• Reduces labor effort and packaging time
• Improves packaging appearance and stability
• Protects products from dust and moisture
• Minimizes film wastage with pre-stretch technology
• Suitable for lightweight and unstable products

Types of Box Stretch Wrapping Machines With Top Holding

1. Semi-Automatic Box Stretch Wrapper Manual loading with automatic wrapping cycle.

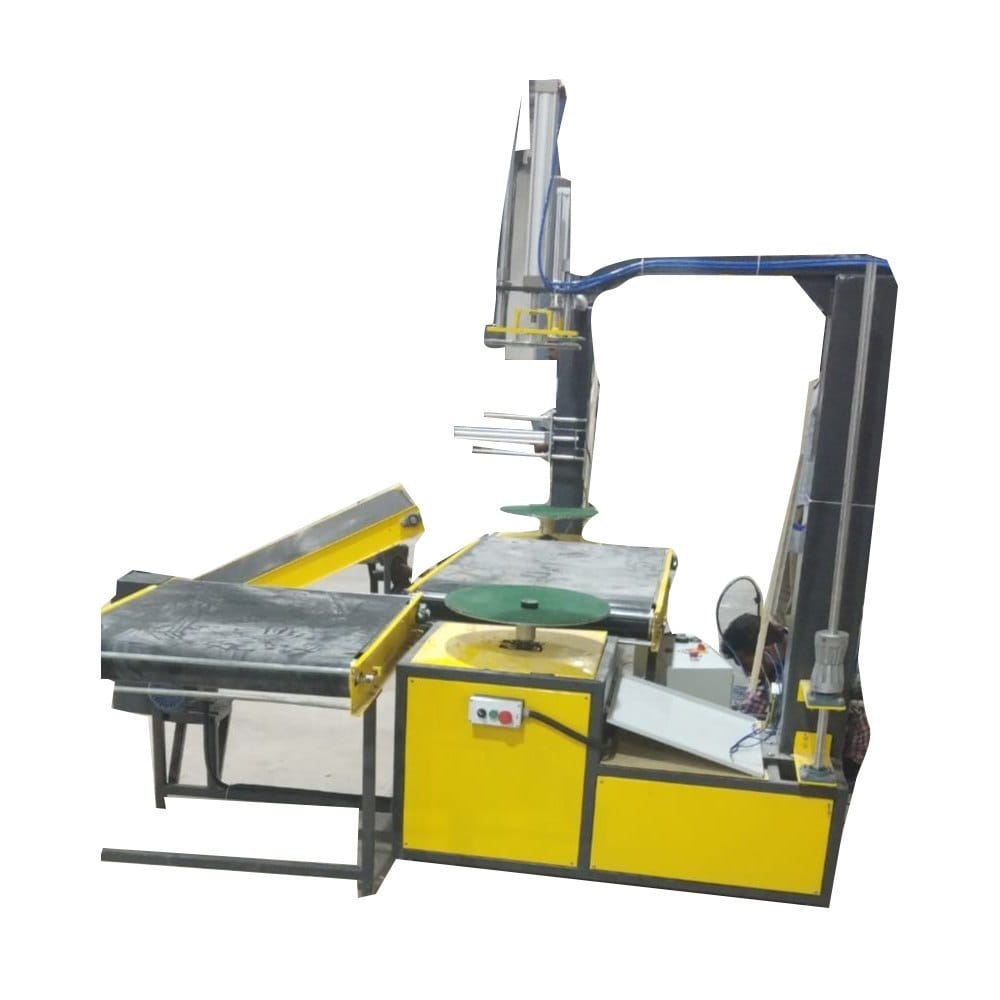

2. Automatic Box Stretch Wrapper Conveyor-integrated fully automatic operation.
3. L-Type Box Stretch Wrapper Designed for taller and larger cartons.
4. Power Pre-Stretch Wrapper Equipped with powered film stretching for reduced film consumption.

Typical Technical Specifications

• Turntable Diameter: 600900 mm
• Maximum Box Size: Up to 900 900 900 mm
• Load Capacity: 80150 kg
• Turntable Speed: Up to 30 RPM
• Film Stretch Ratio: 200300%
• Film Width: 250500 mm
• Pneumatic Pressure Requirement: 410 Bar
• Power Supply: 220V / Single Phase
• Machine Structure: Powder-coated Mild Ste
