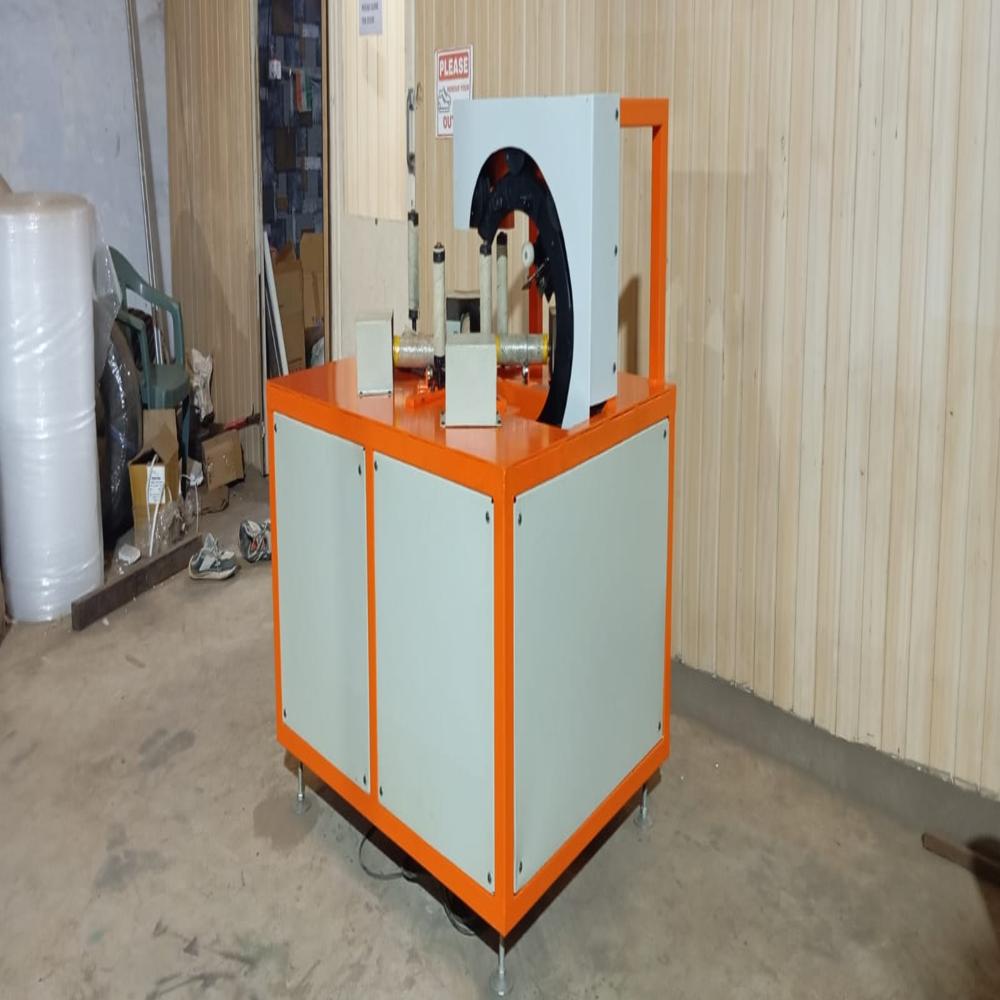

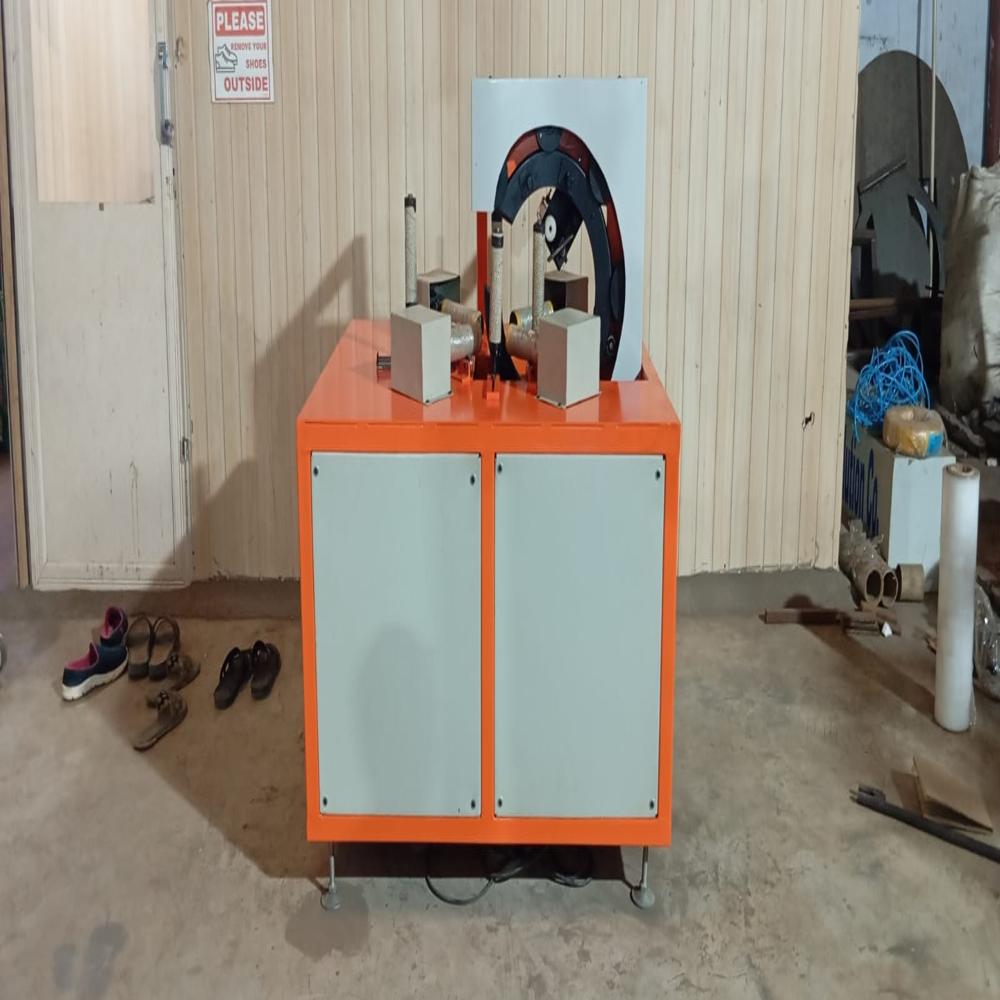

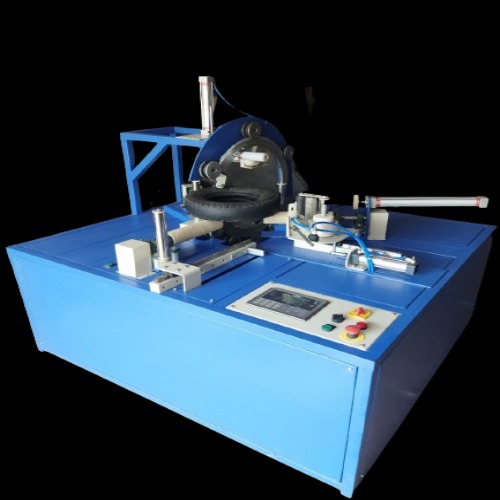

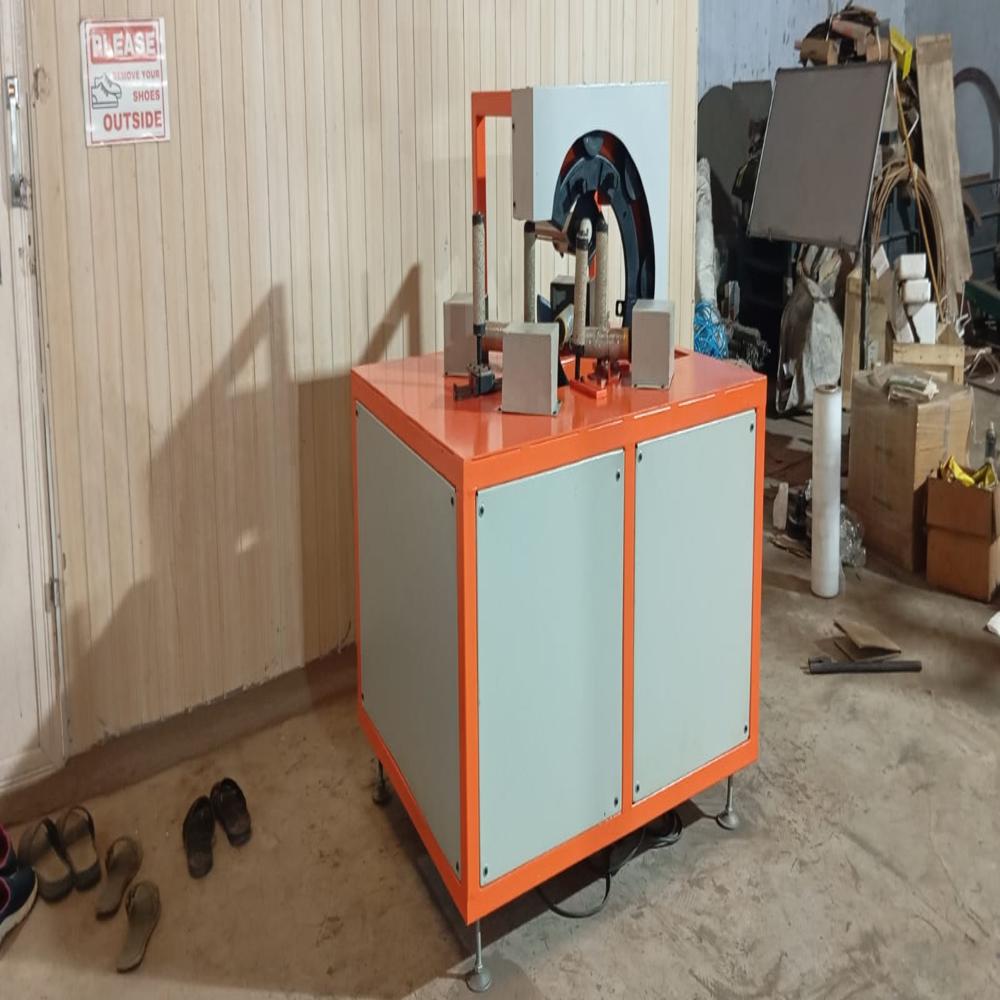

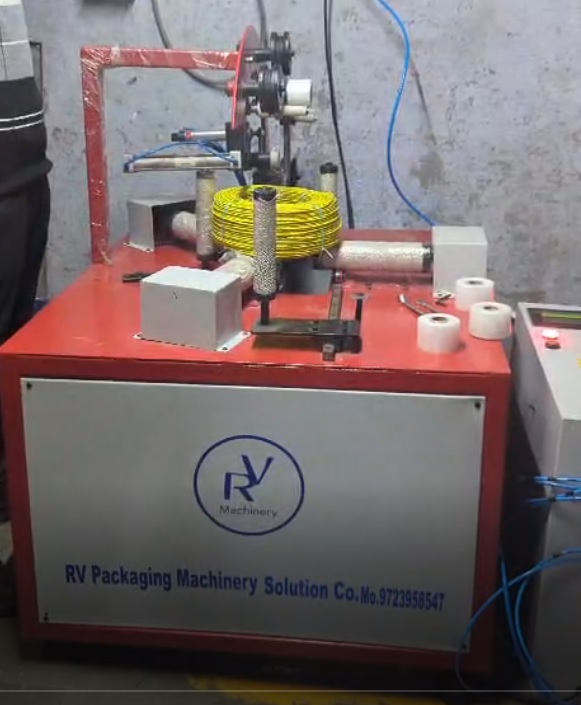

MS Cable Coil Wrapping Machine Specification

Product Type
Coil Wrapping Machine

Material
Mild Steel

Capacity
1-2 Pcs/min

Computerized
Yes

Automatic Grade
Semi-Automatic

Voltage
41 Volt (v)

Power
1 Horsepower (HP)

Rotating Speed
70 RPM

Overlap Scope
Adjustable

Dimension (L*W*H)
1.0 X 1.2 X 1.0 Meter (m)

Weight (kg)
350 Kilograms (kg)

Color
Powder Coated

Warranty
1 Year

MS Cable Coil Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About MS Cable Coil Wrapping Machine

HORIZONTAL COIL WRAPPING MACHINE

High-Speed Industrial Coil Packaging Solution

The Horizontal Coil Wrapping Machine is an advanced industrial packaging system designed for wrapping coils, pipes, hoses, cables, bearings, tires, and ring-shaped products in a horizontal position. The machine provides secure, moisture-proof, dust-resistant, and damage-free packaging using stretch film, VCI film, paper, woven fabric, or other packaging materials.

The machine is specially engineered for continuous industrial operation with high wrapping efficiency and uniform packaging quality.

PRODUCT FEATURES

Heavy-duty horizontal structure
Automatic or semi-automatic operation
PLC + Touch Screen HMI control
Adjustable wrapping overlap and tension
Smooth ring rotation system
Powered conveyor support
Variable speed control
Soft start & stop function
Multi-layer wrapping capability
Compatible with various wrapping materials
Low maintenance design
Safety guards and emergency stop system

WORKING PRINCIPLE

1. Coil Loading

The coil or ring-shaped product is loaded horizontally on the conveyor system.

2. Product Positioning

The conveyor moves the product into the wrapping station automatically.

3. Wrapping Operation

The rotating wrapping ring carries the packaging material around the product while the product rotates slowly or remains stationary depending on design.

4. Wrapping Completion

The machine completes the wrapping cycle with preset overlap and layers.

5. Product Unloading

The wrapped coil is discharged through the conveyor system.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Machine Type	Horizontal Coil Wrapping Machine
Operation	Semi-Automatic / Fully Automatic
Product Type	Coil / Hose / Pipe / Cable / Bearing
Coil Outer Diameter	300 2500 mm
Coil Inner Diameter	150 1200 mm
Coil Width	50 1200 mm
Maximum Product Weight	Up to 5000 kg
Wrapping Material	Stretch Film / VCI / Paper / HDPE
Film Width	50 150 mm
Ring Rotation Speed	20 120 RPM
Conveyor Type	Roller / Belt Conveyor
Conveyor Speed	Variable
Power Supply	415V, 3 Phase, 50 Hz
Installed Power	3 15 kW
Control System	PLC + HMI
Wrapping Overlap	Adjustable
Safety Features	Sensors, Emergency Stop, Guards

APPLICATIONS

Steel Coil Packaging
Copper & Aluminum Coils
Hose Coil Wrapping
Wire & Cable Coils
Pipe Packaging
Bearing Ring Packaging
Tire Packaging
Automotive Components

WRAPPING MATERIAL OPTIONS

Stretch Film
VCI Film
HDPE Film
Woven Fabric
Kraft Paper
Bubble Film

MACHINE ADVANTAGES

Superior Product Protection

Protects products against moisture, corrosion, dust, and transport damage.

High Packaging Efficiency

Suitable for continuous industrial production.

Reduced Labor Cost

Automation minimizes manual handling.

Uniform Wrapping Quality

Ensures tight and professional packaging appearance.

Low Packaging Material Consumption

Optimized wrapping overlap reduces wastage.

OPTIONAL FEATURES

Optional Equipment	Function
Automatic Conveyor System	Product Transfer
Top Press Unit	Product Stabilization
Automatic Film Cutter	Automatic Film Cutting
Barcode Labeling System	Product Identification
Weighing System	Weight Monitoring
Remote Monitoring	Production Tracking
Safety Fencing	Operator Protection

INDUSTRIES SERVED

Steel Industry
Metal Processing Plants
Wire & Cable Industry
Pipe Manufacturing
Automotive Industry
Logistics & Packaging Industry

CUSTOMIZATION AVAILABLE

Machine can be customized according to:

Product dimensions
Product weight
Wrapping material
Automation level
Conveyor layout
Production capacity

SUPPLY SCOPE

Standard machine supply includes:

Horizontal Wrapping Machine
Conveyor System
Wrapping Ring Assembly
Film Carriage Unit
PLC Control Panel
Electrical & Pneumatic Components
Safety Guards
Operating Manual

WHY CHOOSE OUR MACHINE?

Heavy-duty industrial design
Reliable performance
Easy maintenance
Long operational life
Energy-efficient system
Excellent after-sales support
