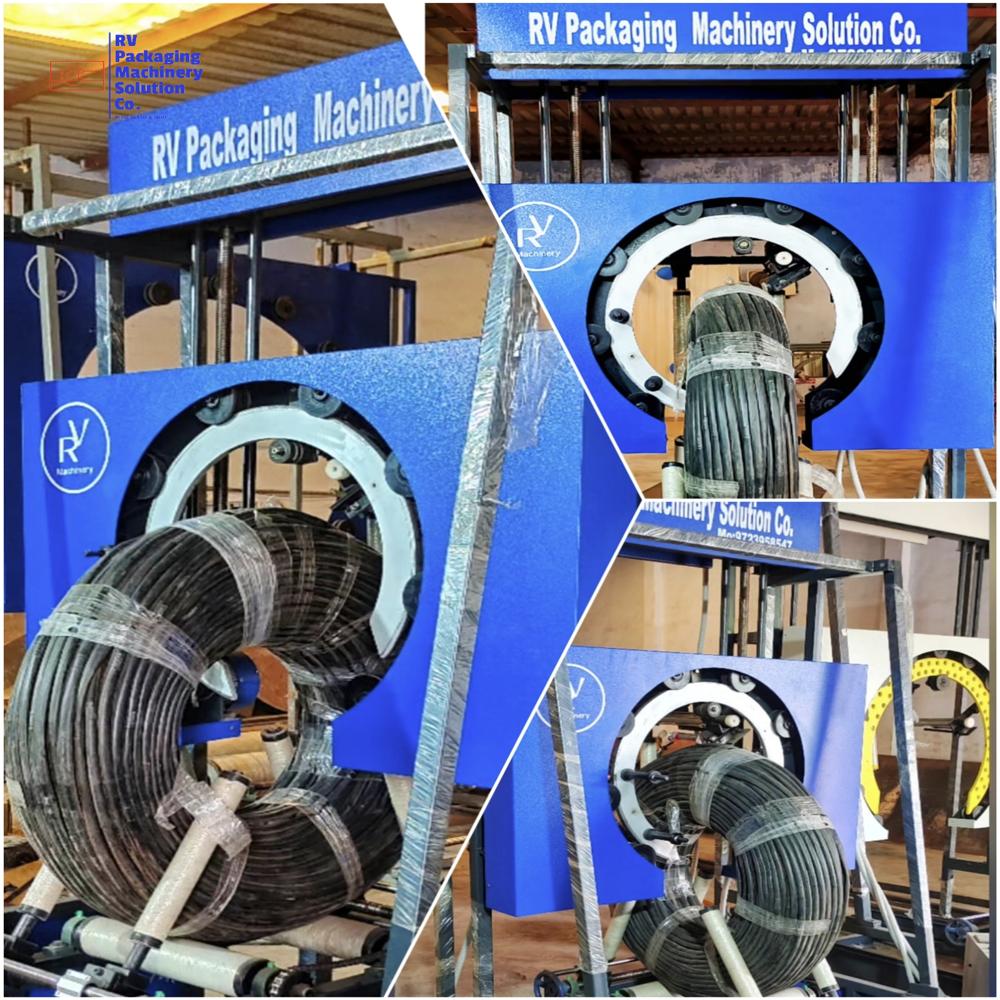

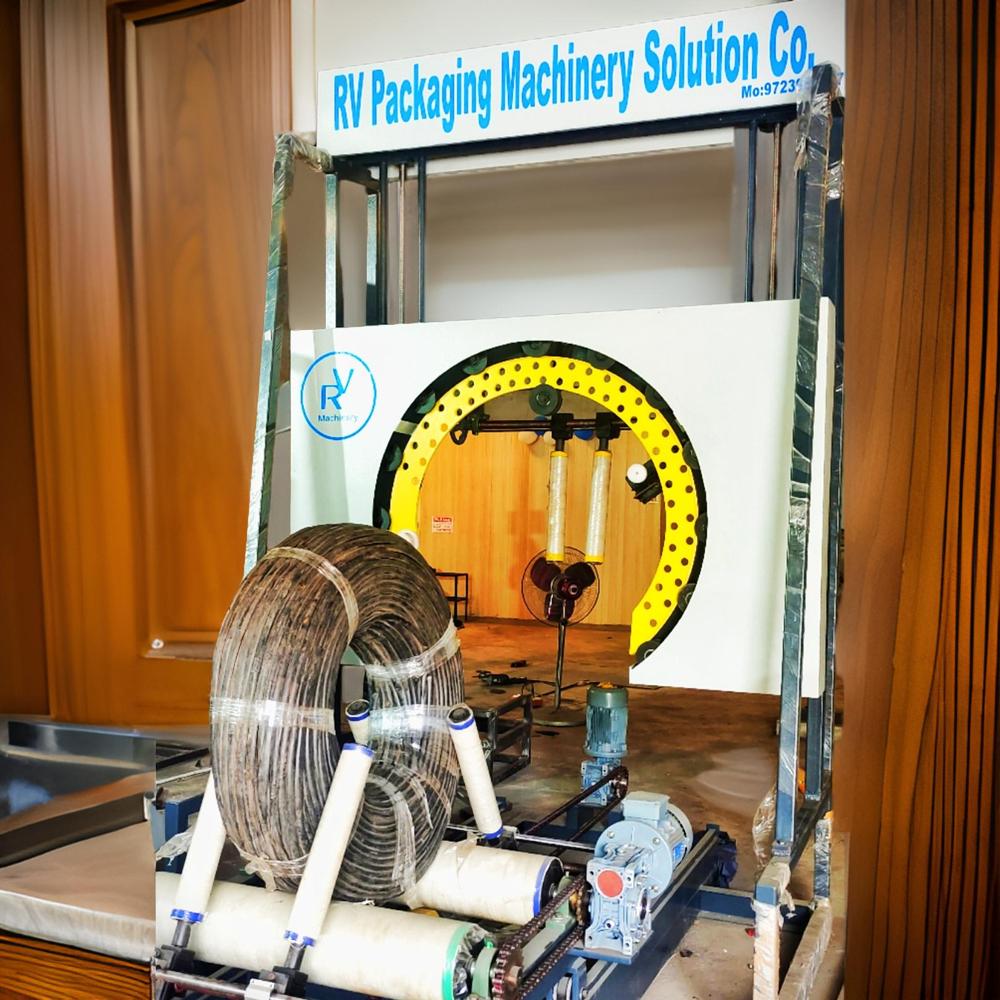

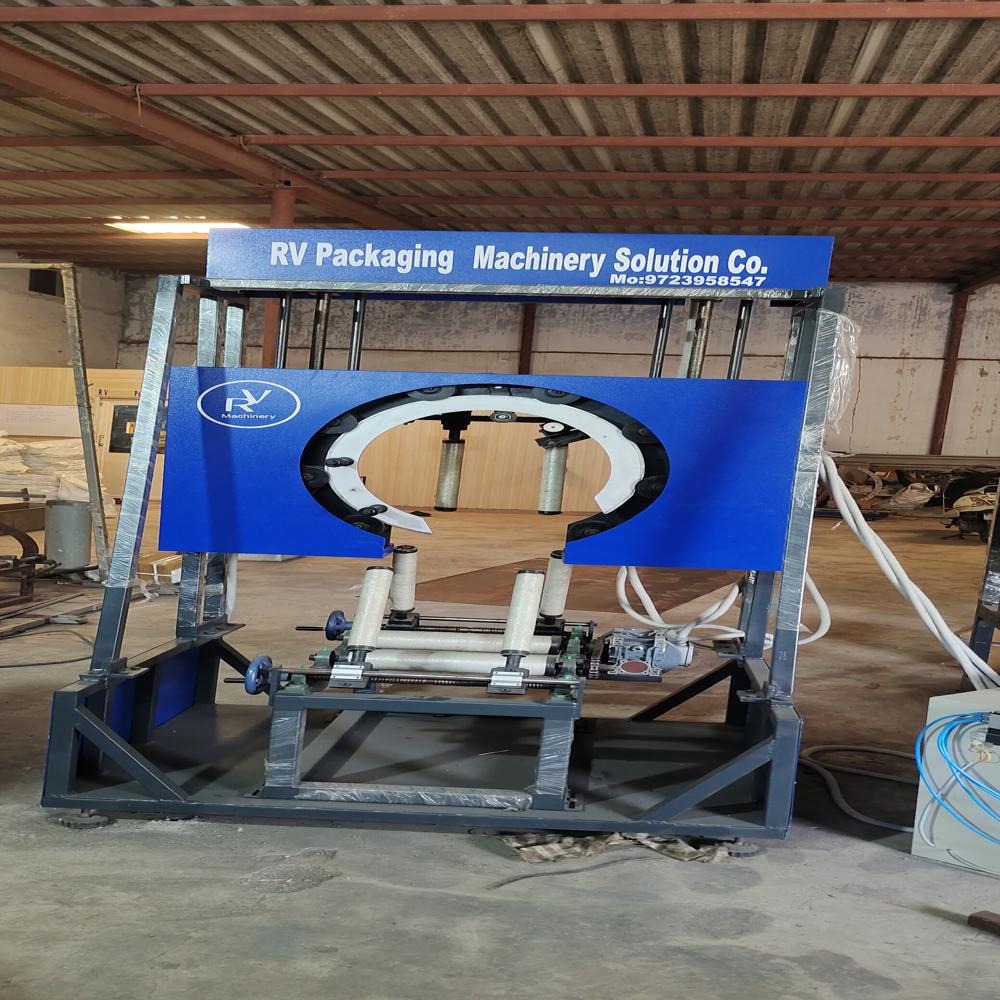

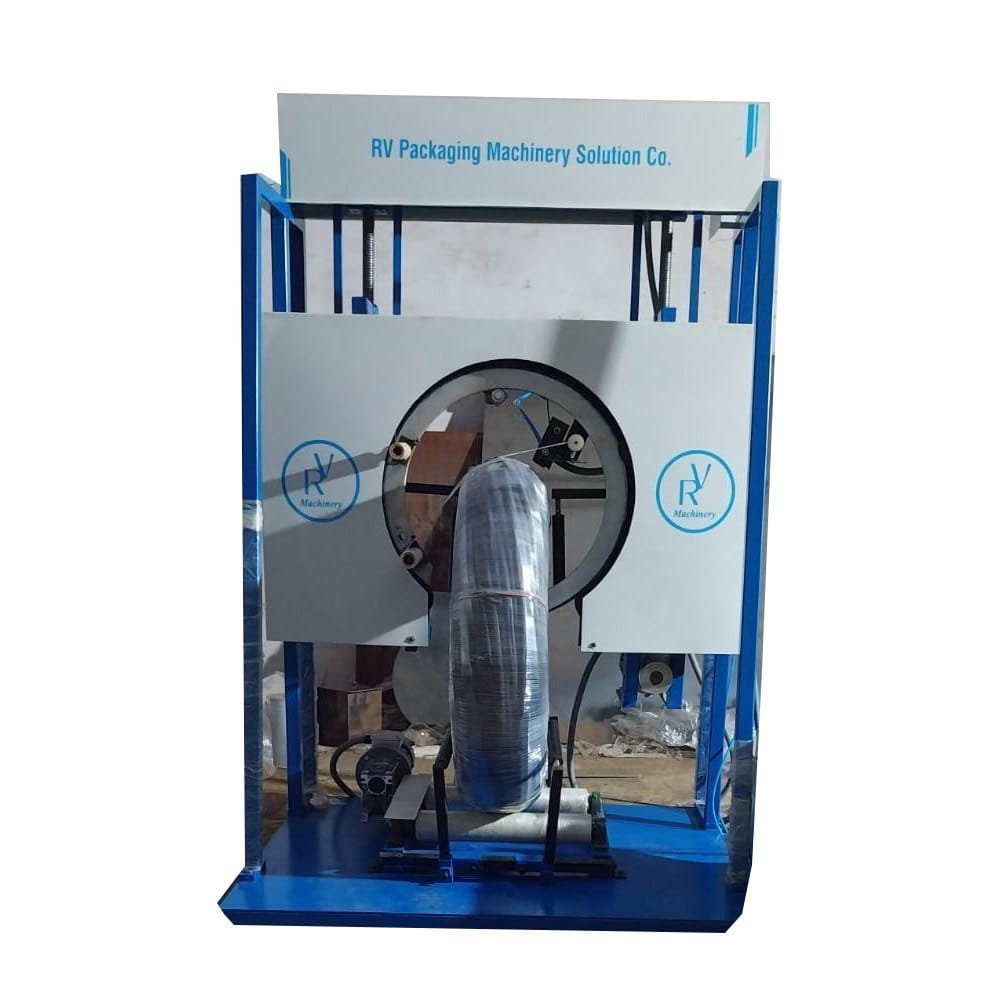

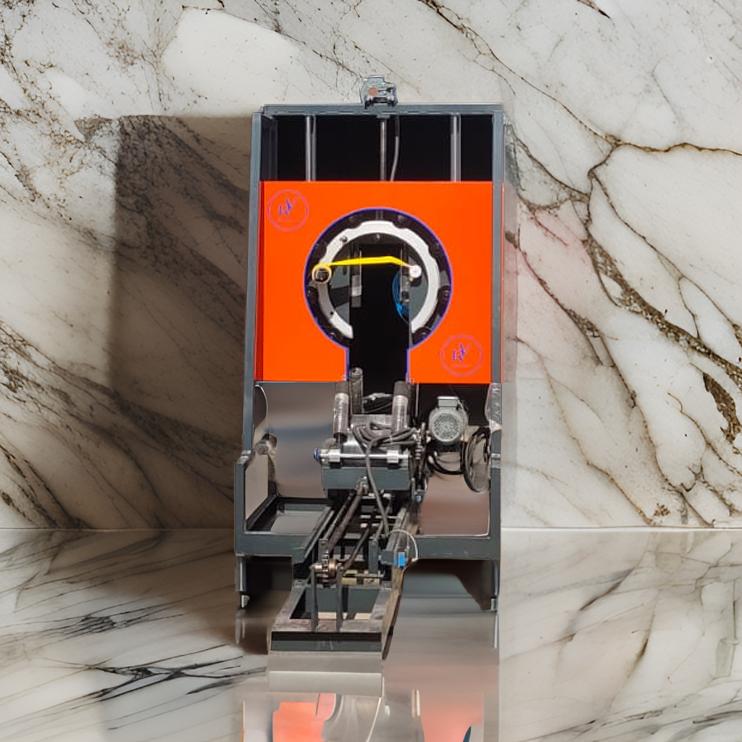

MS Coil Wrappign Machine With Motorized Ring Updown And Trolley

Price 750000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MS Coil Wrappign Machine With Motorized Ring Updown And Trolley Specification

Product Type
Vertical Coil Wrapping Machine

Material
Mild Steel

Capacity
1-2 Pcs/min

Computerized
No

Automatic Grade
Automatic

Voltage
415 Volt (v)

Power
3.5 Horsepower (HP)

Rotating Speed
70 RPM

Overlap Scope
Adjustable

Dimension (L*W*H)
2.0 X 1.0 X 2.5 Meter (m)

Weight (kg)
900 Kilograms (kg)

Color
Powder Coated

Warranty
1 Year

MS Coil Wrappign Machine With Motorized Ring Updown And Trolley Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
36 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About MS Coil Wrappign Machine With Motorized Ring Updown And Trolley

Vertical Coil Wrapping Machine

A Vertical Coil Wrapping Machine is an advanced industrial packaging system specially designed for wrapping coil-shaped products such as steel coils, wire coils, copper coils, hose coils, cable rolls, bearings, and tire coils in a vertical position. The machine provides secure, uniform, and moisture-resistant packaging using stretch film, VCI film, woven tape, paper, or other protective materials to ensure safe storage and transportation.

The machine operates through a vertically rotating wrapping ring while the coil rotates on powered rollers or a support table. This mechanism enables tight and consistent wrapping with adjustable overlap and tension control, resulting in professional-quality packaging and reduced material consumption. Vertical coil wrapping machines are widely used in steel processing plants, wire industries, cable manufacturing units, automotive industries, and export packaging applications.

Key Features

Heavy-duty compact machine structure
PLC-based automatic or semi-automatic operation
Adjustable wrapping speed and overlap ratio
Variable frequency drive for smooth operation
Compatible with stretch film, VCI film, woven tape, and paper
Adjustable film tension control system
Emergency stop and safety interlock system
Automatic film cutting and holding system
Low maintenance and energy-efficient design
Uniform, moisture-proof, and dust-proof packaging

Applications

Steel slit coils
Wire and cable coils
Copper and aluminum coils
Hose and pipe coils
Bearings and tire packaging
Industrial ring-shaped products

Technical Specifications

Parameter	Specification
Machine Type	Vertical Coil Stretch Wrapping Machine
Coil Weight Capacity	50 kg 6000 kg
Coil Inner Diameter (ID)	250 mm 1200 mm
Coil Outer Diameter (OD)	500 mm 2500 mm
Coil Width	50 mm 600 mm
Wrapping Material	LLDPE Stretch Film / VCI Film / Woven Tape / Paper
Film Width	Up to 200 mm
Film Thickness	23 50 Micron
Wrapping Speed	20 60 sec per coil
Overlap Range	20% 90% Adjustable
Control System	PLC with Touchscreen HMI
Power Supply	380V 440V, 3 Phase, 50/60 Hz
Power Consumption	2 kW 7 kW
Machine Structure	Mild Steel with Powder Coating
Drive System	Variable Frequency AC Drives
Safety Features	Emergency Stop, Safety Guards, Interlock System
Operation Mode	Semi-Automatic / Fully Automatic

Advantages

Improves packaging productivity and consistency
Reduces manual labor and packaging time
Protects coils from moisture, corrosion, and dust
Minimizes film wastage with controlled tension system
Enhances product appearance and transportation safety
Suitable for export-quality packaging applications

Vertical Coil Wrapping Machines are ideal for industries requiring safe, efficient, and high-speed packaging solutions for coil-shaped products while maintaining superior packaging quality and operational reliability.
