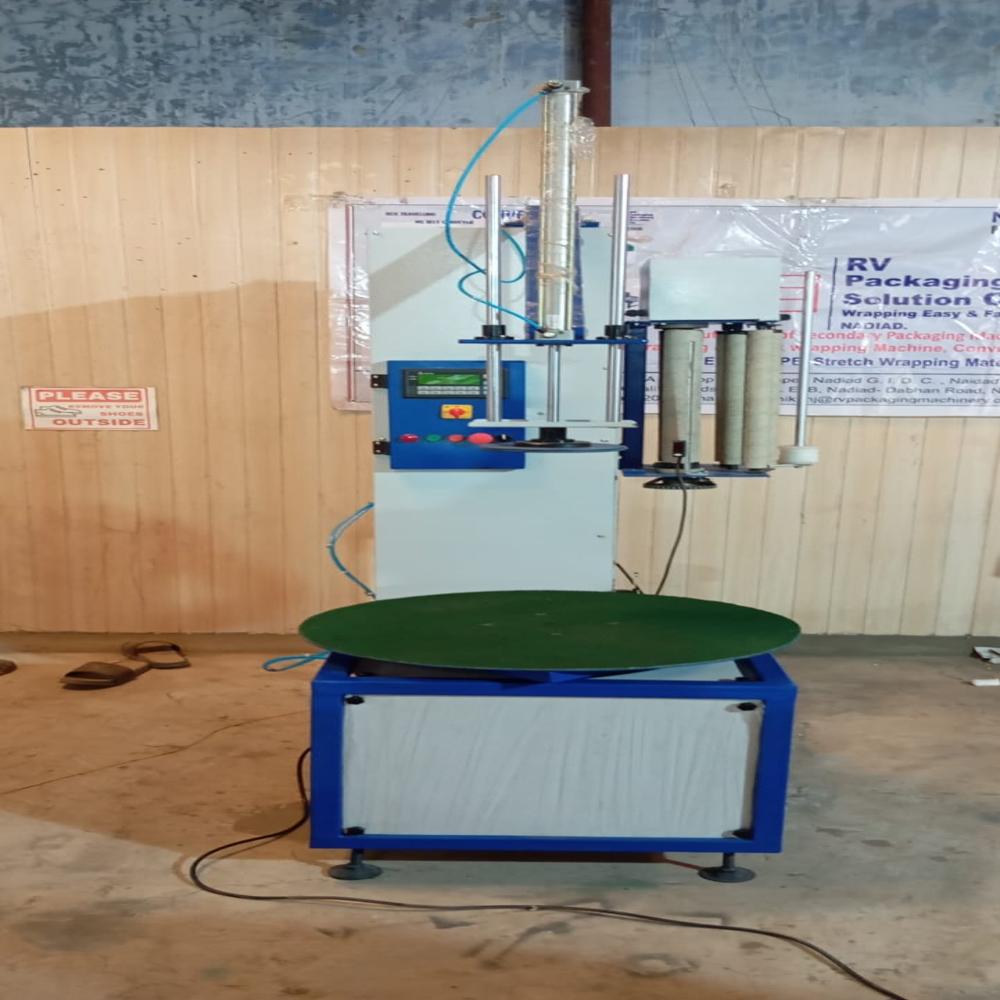

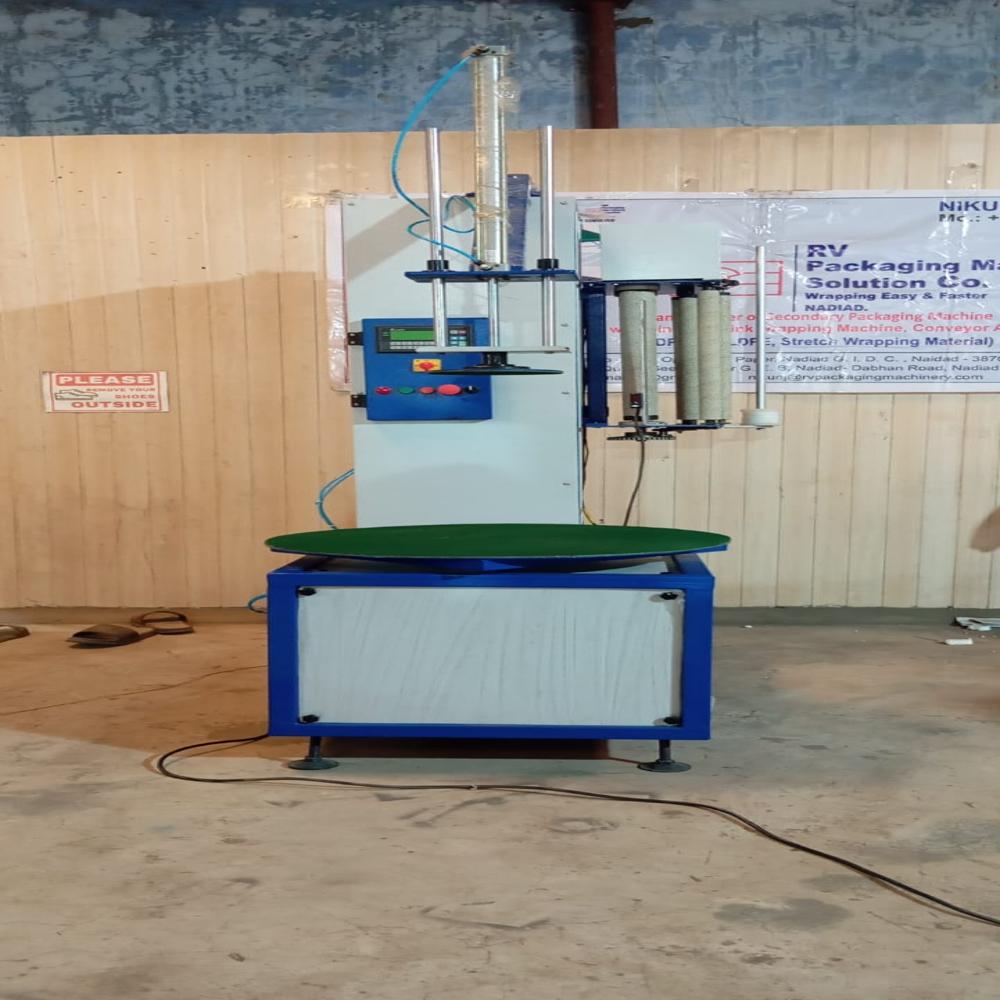

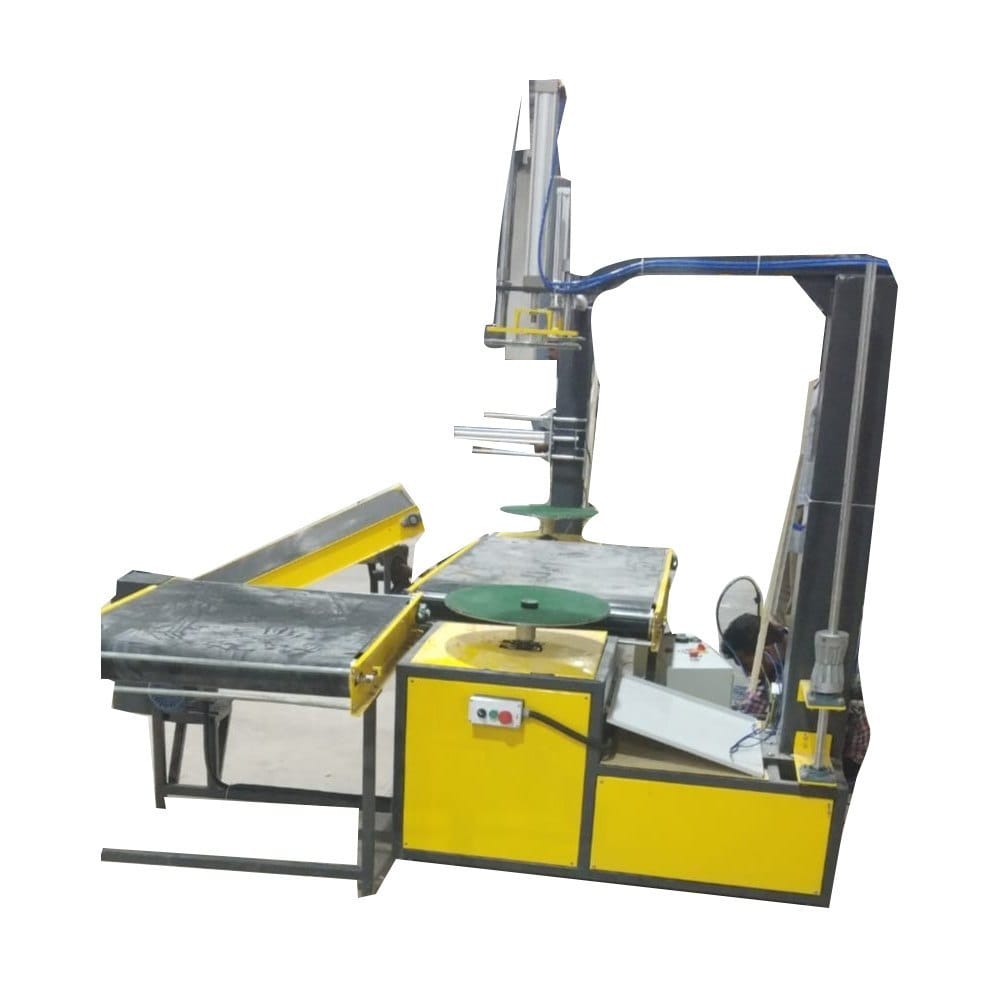

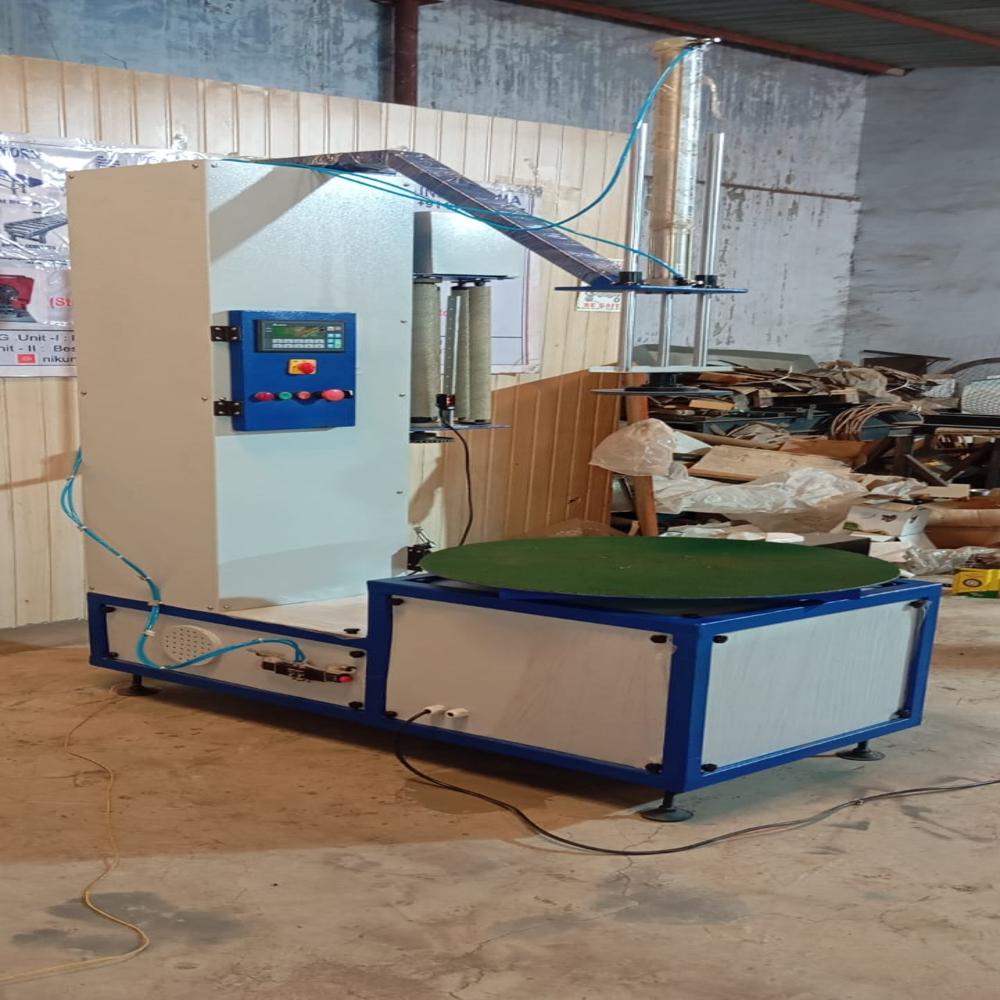

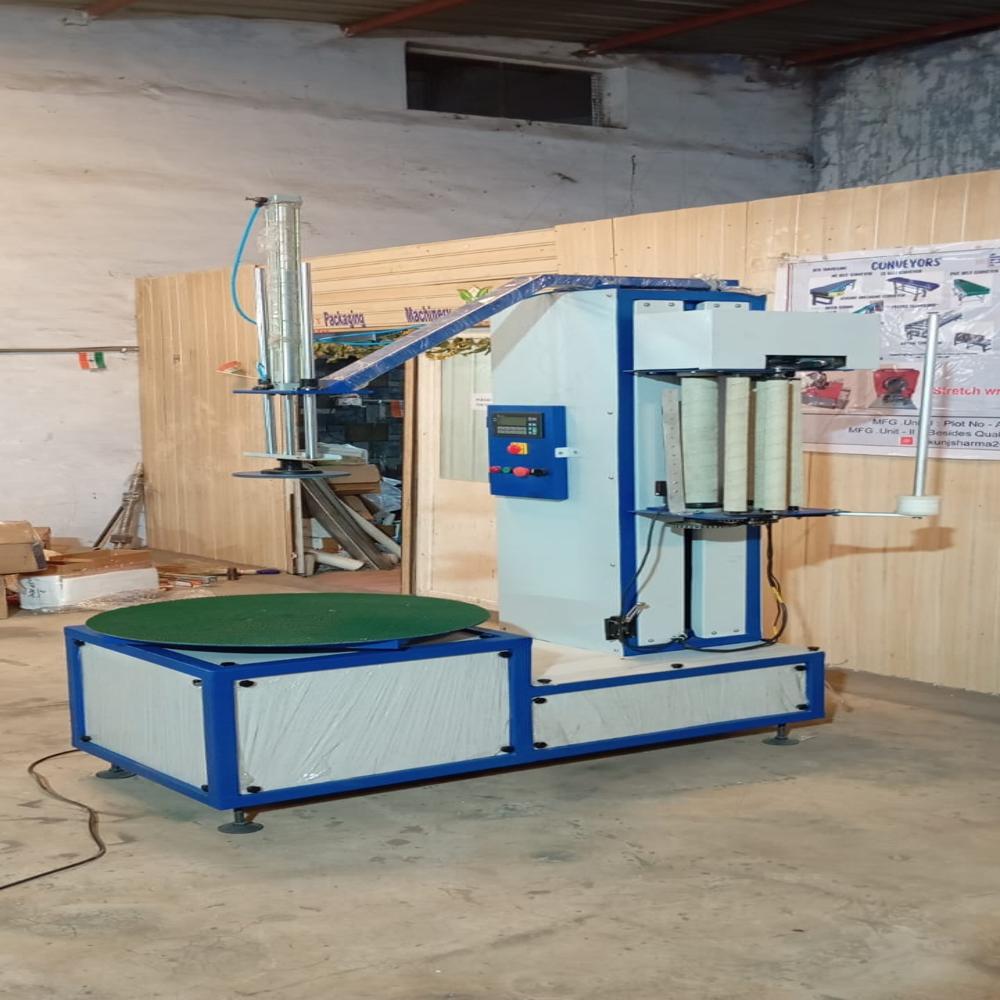

BOX WRAPPING MACHINE WITH TOP PNEUMATIC HOLDING

Advanced Stretch Wrapping Solution for Box & Carton Packaging

The Box Wrapping Machine with Top Pneumatic Holding is a high-performance automatic wrapping system specially designed for wrapping lightweight, unstable, or tall boxes using stretch film. The machine is equipped with a top pneumatic holding unit that securely presses the product during the wrapping cycle to prevent movement, tilting, or falling.

This machine is ideal for industries requiring safe, stable, and professional packaging of cartons, corrugated boxes, containers, and stacked products.

---

PRODUCT FEATURES

• Top Pneumatic Holding System
• Automatic Stretch Film Wrapping
• Adjustable Wrapping Tension
• PLC Based Control System
• Touch Screen HMI Interface
• Variable Turntable Speed
• Adjustable Film Overlap
• Soft Start & Stop Function
• Pneumatic Product Stabilization
• Heavy-Duty Structure
• Safety Sensors & Emergency Stop
• Low Maintenance Design

---

WORKING PRINCIPLE

1. Product Loading

The box or carton is placed on the rotating turntable.

2. Top Holding Operation

The pneumatic top press moves downward and securely holds the product from the top.

3. Wrapping Process

The turntable rotates while the film carriage moves vertically to apply stretch film uniformly around the product.

4. Wrapping Completion

After the wrapping cycle is completed, the top holding unit lifts automatically, and the wrapped product is unloaded.

---

TECHNICAL SPECIFICATIONS

---

TOP PNEUMATIC HOLDING SYSTEM

The machine is equipped with a pneumatic top press unit specially designed for:

• Lightweight cartons
• Tall products
• Unstable stacked boxes
• Fragile packaged goods

Benefits of Pneumatic Holding

Prevents product movement
Improves wrapping stability
Ensures tight wrapping quality
Reduces packaging damage
Suitable for high-speed operation

---

APPLICATIONS

• Corrugated Box Packaging
• FMCG Industry
• Food & Beverage Packaging
• Pharmaceutical Cartons
• Logistics & Warehousing
• Consumer Goods Packaging
• E-Commerce Packaging
• Textile & Garment Boxes

---

OPTIONAL FEATURES

---

MACHINE ADVANTAGES

Improved Packaging Stability

Top pneumatic holding prevents product displacement during wrapping.

Better Film Application

Ensures uniform and tight stretch wrapping.

Reduced Labor Requirement

Semi or fully automatic operation reduces manual work.

Enhanced Product Safety

Protects products during handling and transportation.

High Productivity

Suitable for continuous industrial packaging operations.

---

INDUSTRIES SERVED

• Packaging Industry
• FMCG Manufacturing
• Warehousing & Logistics
• Food Processing
• Pharmaceuticals
• E-Commerce
• Textile Industry

---

CUSTOMIZATION AVAILABLE

Machine can be customized based on:

• Box dimensions
• Product weight
• Wrapping height
• Conveyor integration
• Automation level
• Production capacity

---

SUPPLY SCOPE

Standard machine supply includes:

• Turntable Wrapping Machine
• Pneumatic Top Holding Unit
• Stretch Film Carriage
• PLC Control Panel
• Pneumatic Components
• Safety Guards
• Operating Manual
