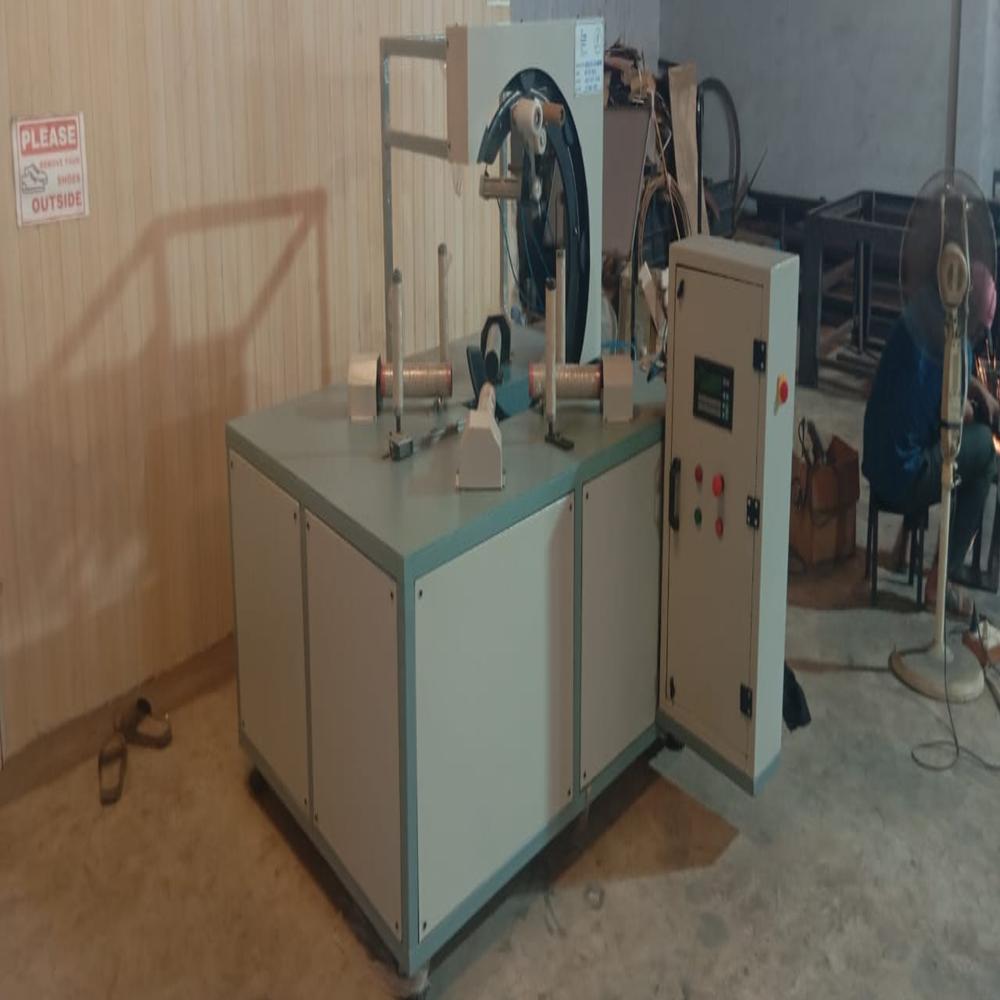

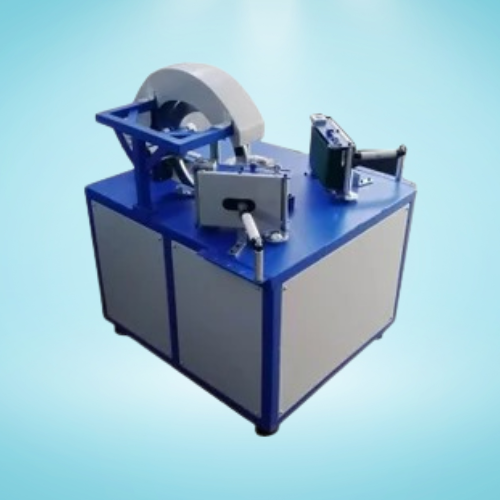

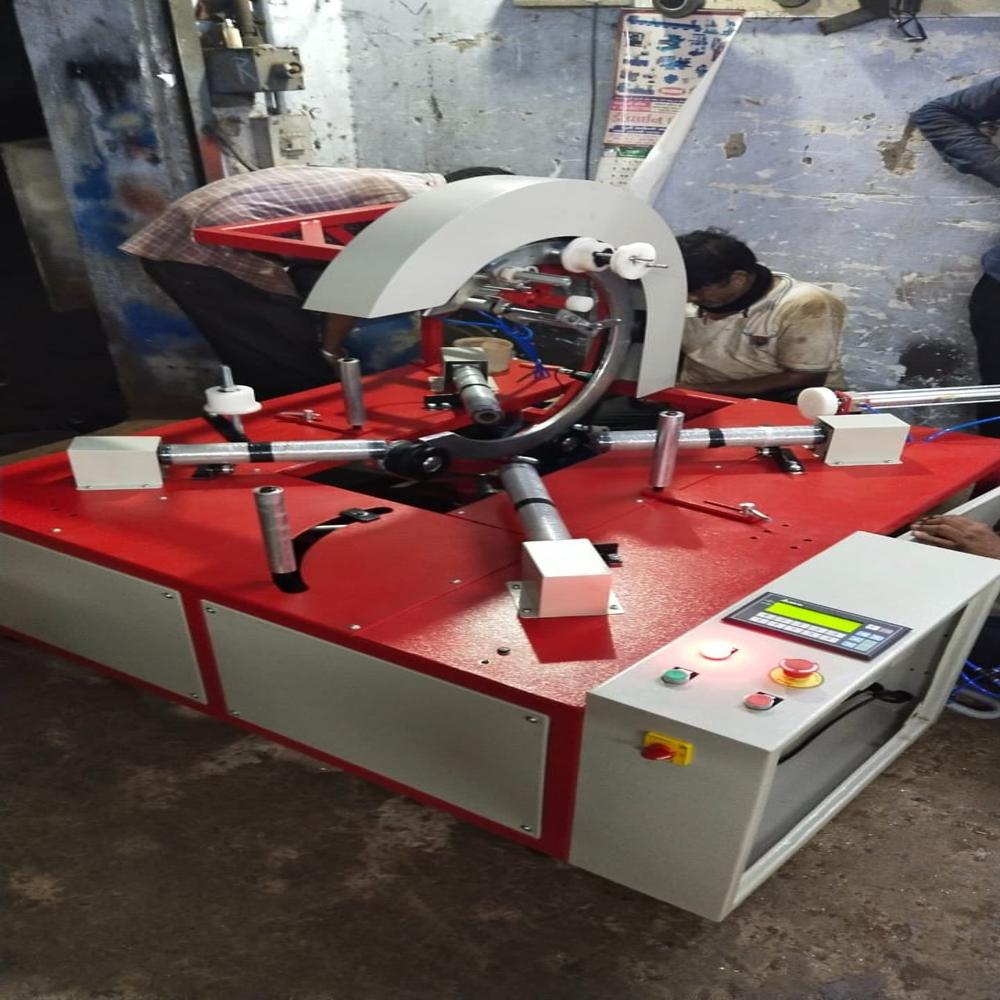

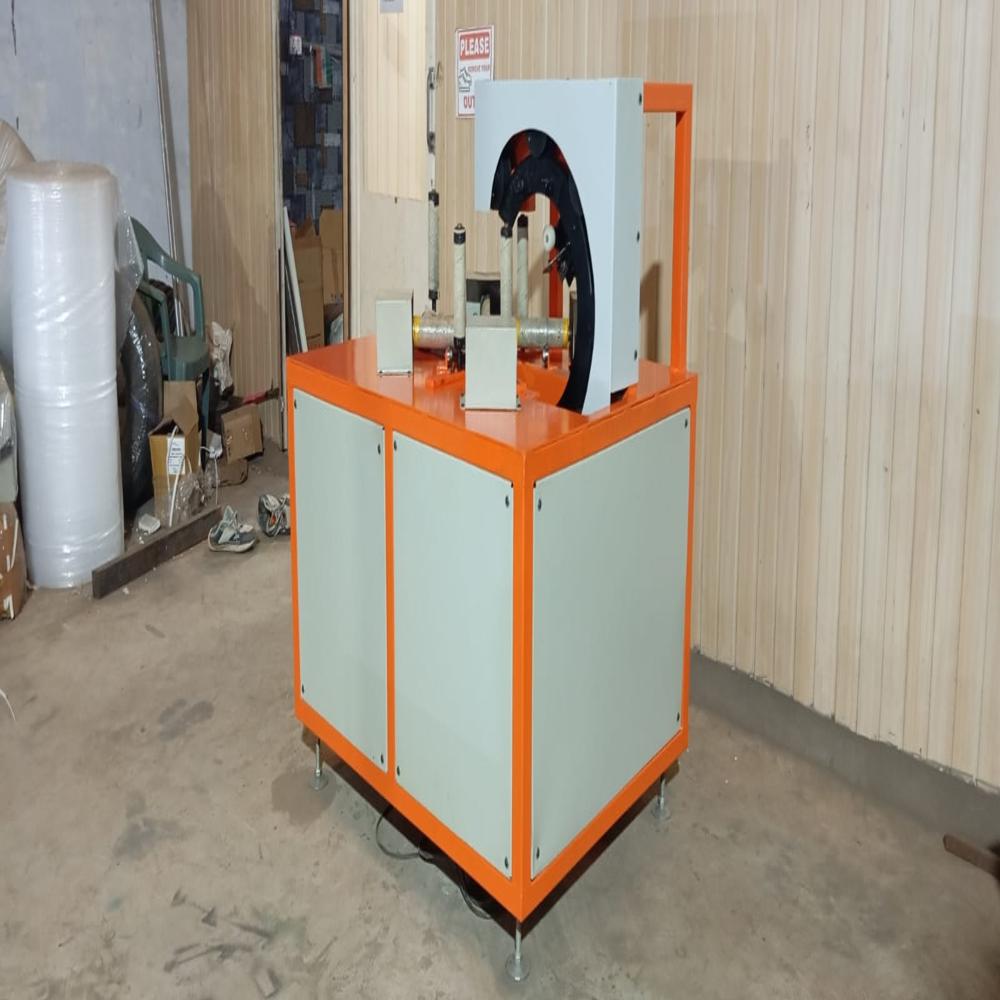

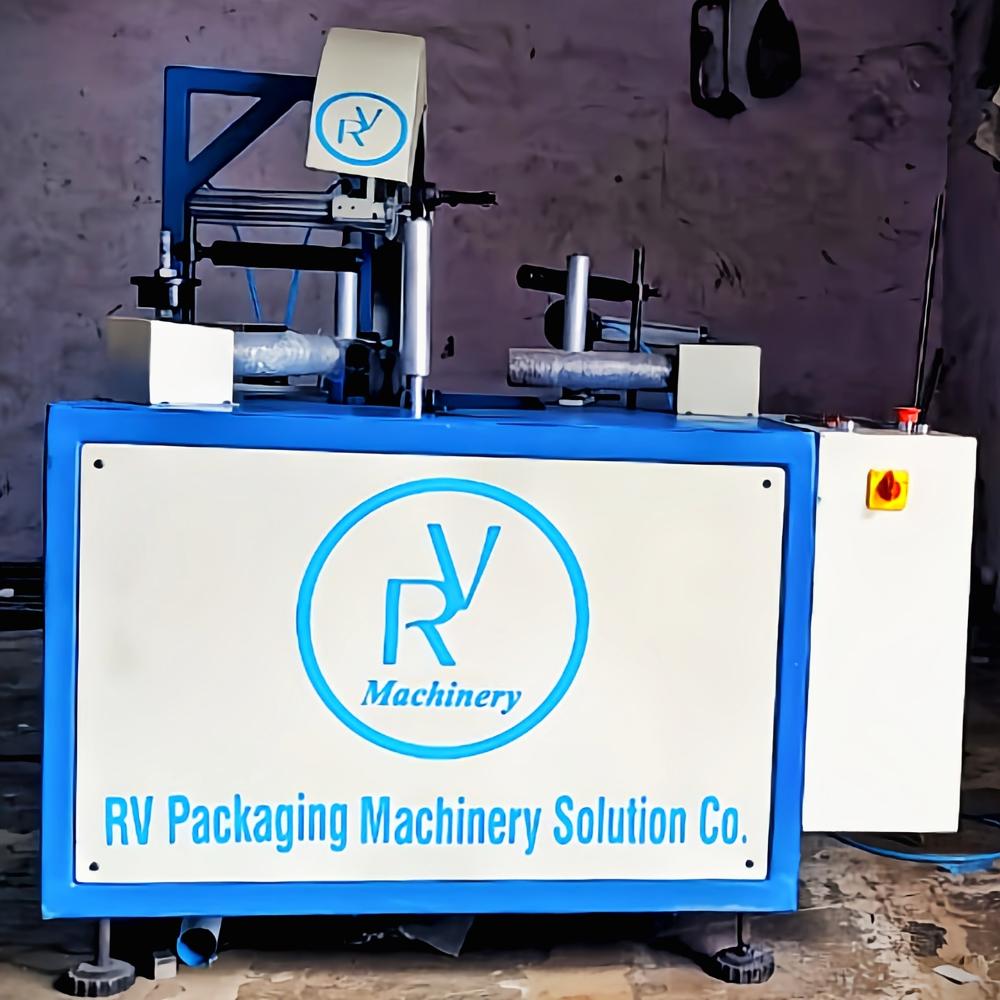

Garden Pipe Coil Wrapping Machine

Garden Pipe Coil Wrapping Machine Description

A Garden Pipe Coil Wrapping Machine is a specialized industrial packaging machine designed for wrapping coiled garden hoses, PVC pipes, flexible pipes, irrigation pipes, and hose bundles using stretch film, PE film, or protective wrapping material. The machine performs spiral or orbital wrapping through the eye of the coil, ensuring secure, compact, dustproof, and moisture-resistant packaging during storage and transportation. It is widely used in pipe manufacturing industries, irrigation equipment plants, and industrial packaging applications.

Key Features

• Suitable for garden hose coils, PVC pipes, and irrigation pipes
• Spiral / periphery stretch wrapping system
• Adjustable film overlap and tension control
• PLC and HMI-based automatic control system
• Variable ring rotation speed with VFD drive
• Automatic film cutting and clamping system
• Heavy-duty mild steel machine structure
• Rubber-coated rollers for smooth coil rotation
• Low maintenance and vibration-free operation
• Compatible with stretch film, PE film, woven tape, and paper wrapping materials

Working Principle

The garden pipe coil is placed on support rollers or a wrapping station. During operation, the rollers rotate the coil while a rotating ring carries the stretch film around the product in a spiral motion. The film wraps tightly around the hose coil with adjustable overlap and tension, providing secure packaging and protection against dust, moisture, scratches, and transit damage.

Applications

• Garden hose coil packaging
• PVC and PE pipe coil wrapping
• Irrigation and drip pipe packaging
• Flexible hose and suction pipe wrapping
• Corrugated pipe packaging
• Agricultural pipe coil packaging
• Industrial hose and tubing coil wrapping

Advantages

• Provides tight and uniform wrapping
• Protects hose coils from moisture and dust
• Reduces manual labor and packaging time
• Improves product appearance and handling safety
• Minimizes packaging material wastage
• Increases packaging productivity and consistency
• Suitable for export-quality packaging

Typical Technical Specifications
