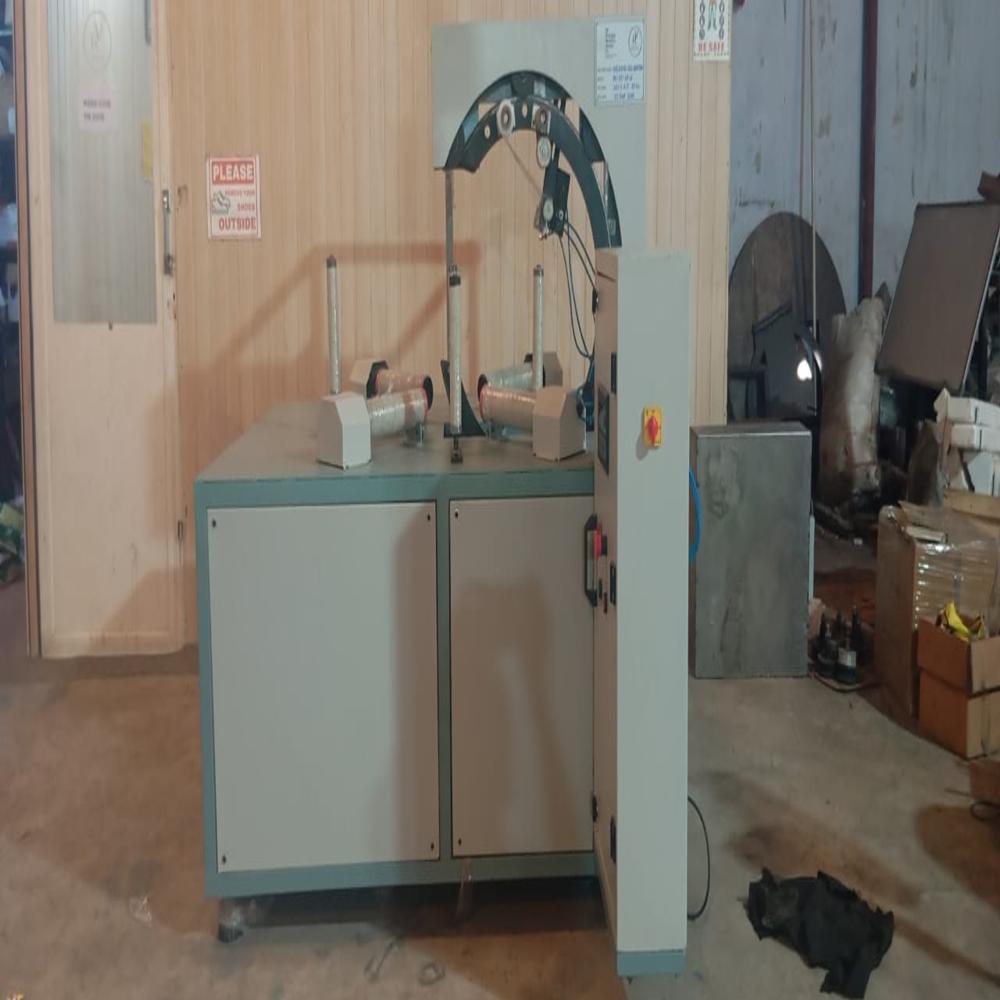

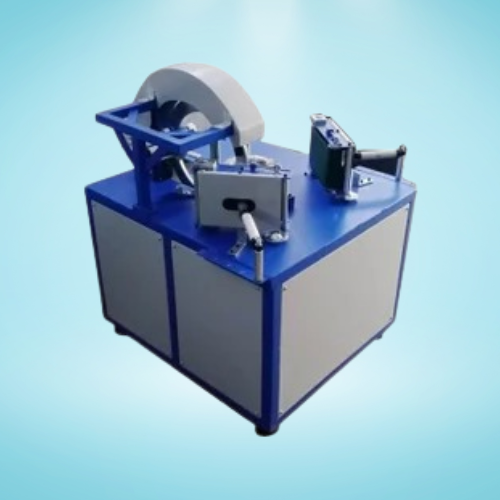

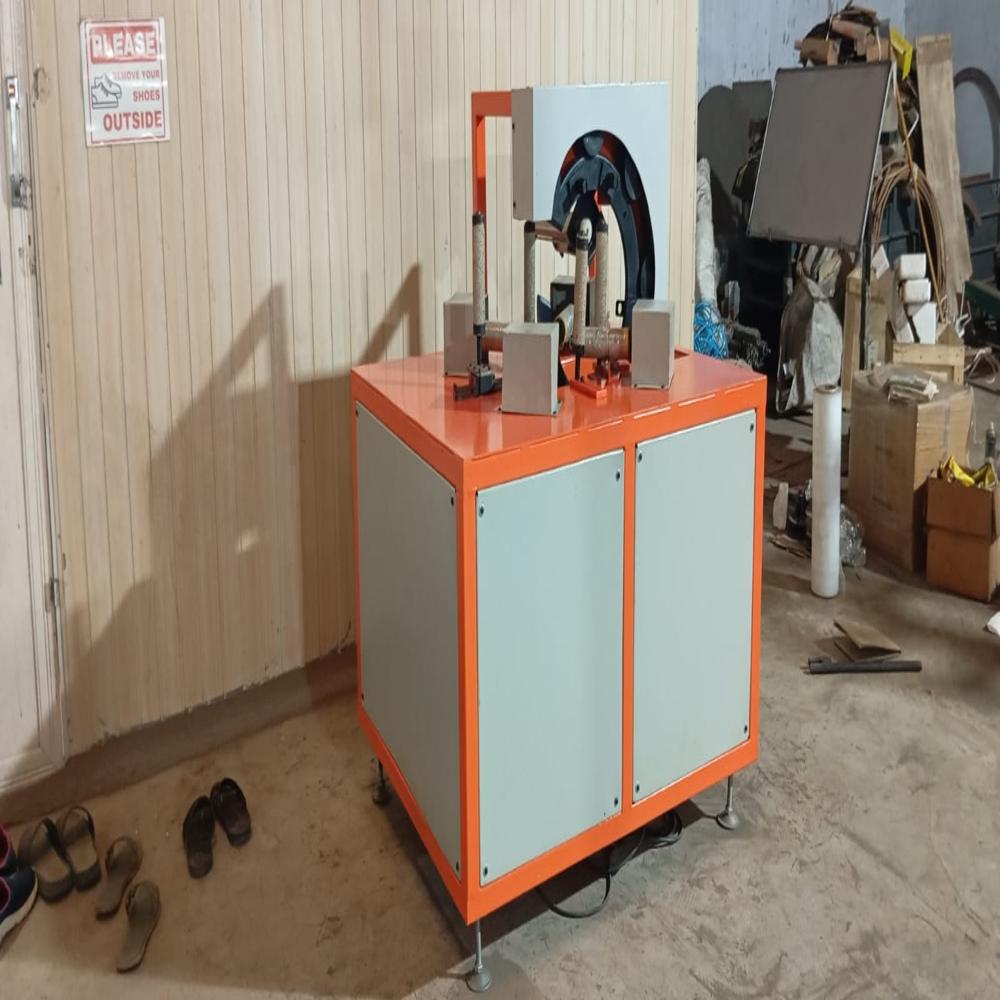

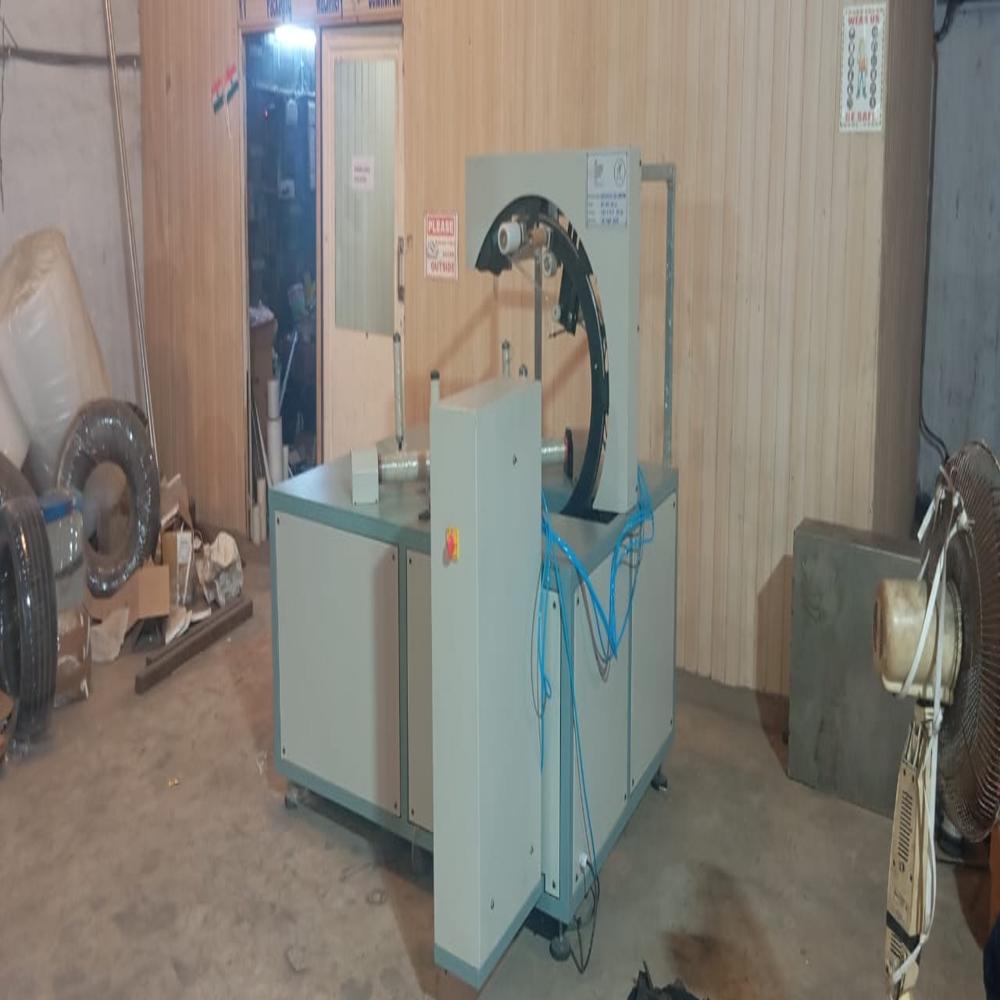

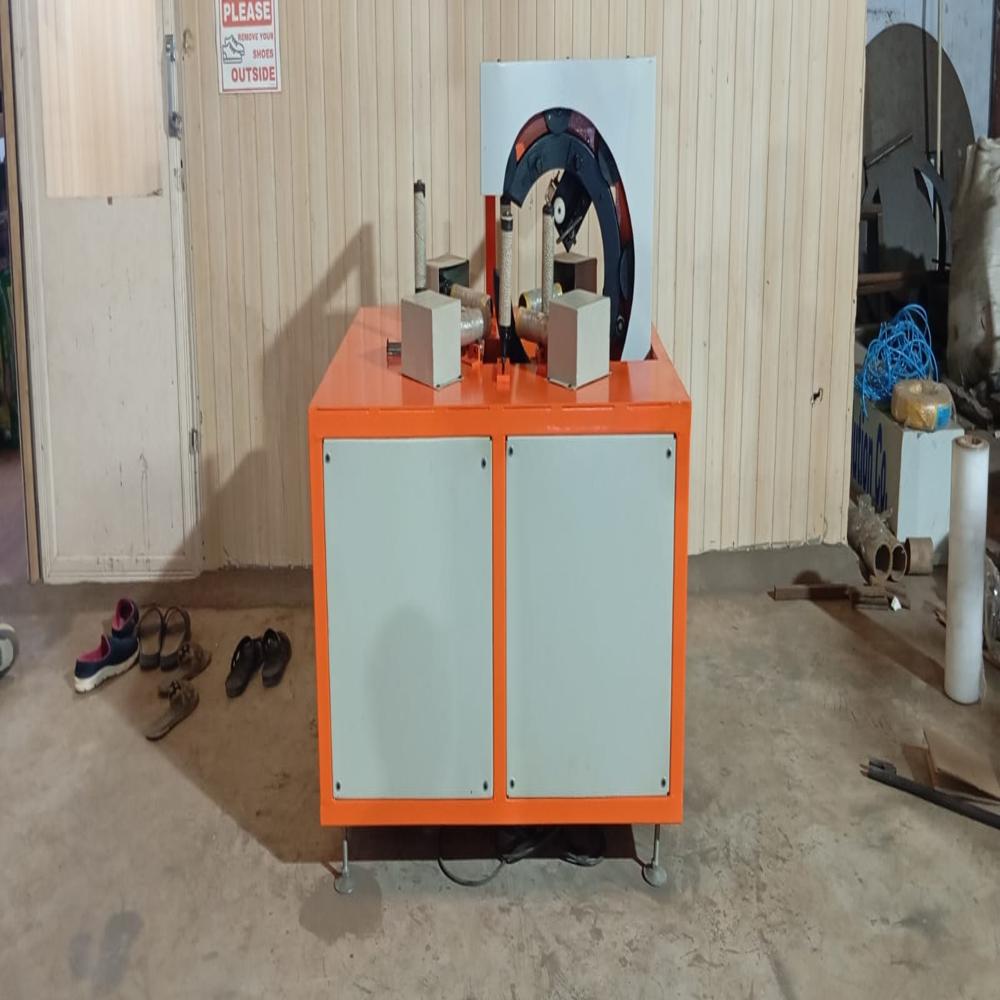

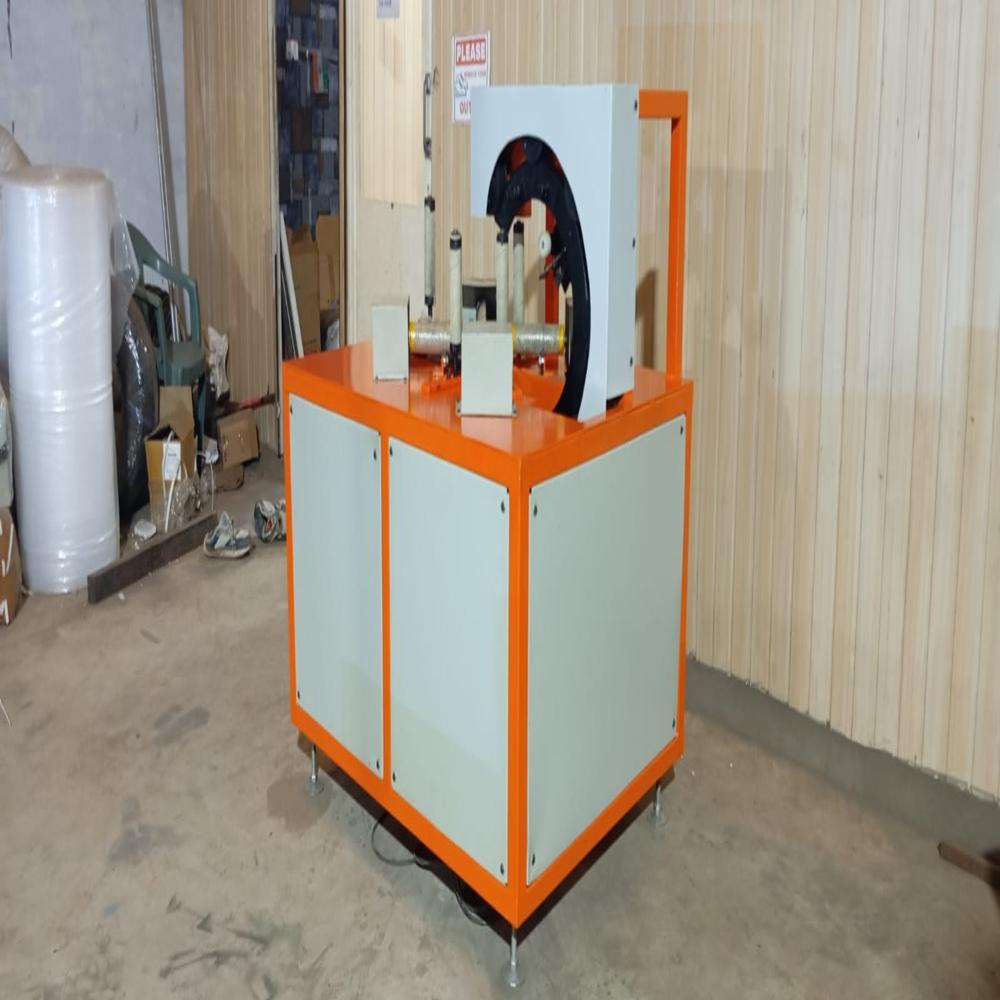

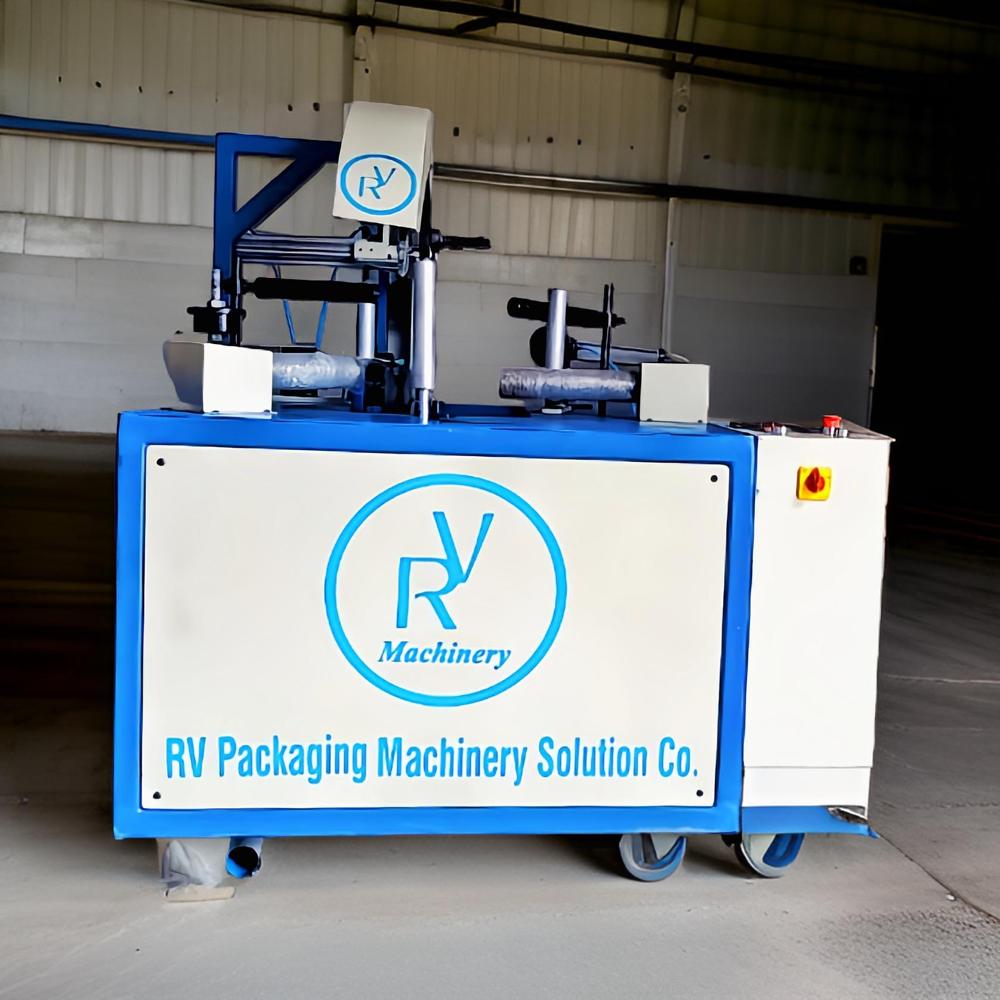

Binding Wire Stretch Wrapping Machine Description
A Binding Wire Stretch Wrapping Machine is a specialized industrial packaging machine designed for wrapping binding wire coils, GI wire coils, steel wire bundles, and cable coils using stretch film, HDPE film, or protective wrapping materials. The machine performs spiral or orbital wrapping through the eye of the coil to provide secure, dustproof, moisture-resistant, and damage-free packaging during storage and transportation. It is widely used in wire manufacturing, steel processing, cable industries, and industrial packaging applications.
Key Features
- Suitable for binding wire, GI wire, steel wire, and cable coils
- Spiral / periphery stretch wrapping system
- Adjustable film overlap and tension control
- PLC and HMI-based automatic control system
- Variable speed ring rotation using inverter drive
- Automatic film cutting and holding mechanism
- Heavy-duty mild steel machine structure
- Rubber-coated powered rollers for smooth rotation
- Low maintenance and vibration-free operation
- Compatible with stretch film, HDPE film, and PE film
Working Principle
The binding wire coil is placed on powered cradle rollers or a wrapping station. The rollers rotate the wire coil while a rotating ring carries the stretch film around the coil in a spiral motion. The film is wrapped tightly around the wire bundle with adjustable overlap and tension, ensuring safe handling and protection from dust, moisture, scratches, and corrosion.
Applications
- Binding wire coil packaging
- GI wire and steel wire wrapping
- Cable and telecom wire coil packaging
- Welding wire coil wrapping
- Agricultural wire packaging
- Hose pipe and flexible pipe coil wrapping
- Industrial coil and bundle packaging
Advantages
- Provides tight and uniform wrapping
- Protects wire coils from moisture and rust
- Reduces manual labor and packaging time
- Improves packaging appearance and handling safety
- Minimizes film wastage with adjustable overlap
- Increases packaging productivity and consistency
- Suitable for export-quality industrial packaging
Typical Technical Specifications
| Parameter |
Specification |
| Machine Type |
Binding Wire Coil Stretch Wrapping Machine |
| Automation Grade |
Semi-Automatic / Automatic |
| Wrapping Method |
Spiral / Periphery Wrapping |
| Power Supply |
415V AC, 3 Phase, 50 Hz |
| Power Consumption |
2 kW |
| Coil Inner Diameter (ID) |
200 350 mm |
| Coil Outer Diameter (OD) |
250 600 mm |
| Coil Width |
50 200 mm |
| Coil Weight Capacity |
5 30 kg |
| Ring Rotation Speed |
20 110 RPM |
| Wrapping Speed |
15 45 sec/coil |
| Stretch Film Width |
25 60 mm |
| Film Roll OD |
Up to 130 mm |
| Drive System |
AC Frequency Drive / VFD |
| Control System |
PLC + HMI Touch Screen |
| Roller Type |
Rubber Coated M.S. Rollers |
| Cutter Type |
HSS Automatic Cutter |
| Machine Structure |
Heavy Duty Mild Steel |
| Machine Dimensions |
Approx. 1250 1250 1250 mm |
| Machine Weight |
Approx. 400 kg |
| Safety Features |
Emergency Stop, Safety Guard, Soft Start & Stop |
