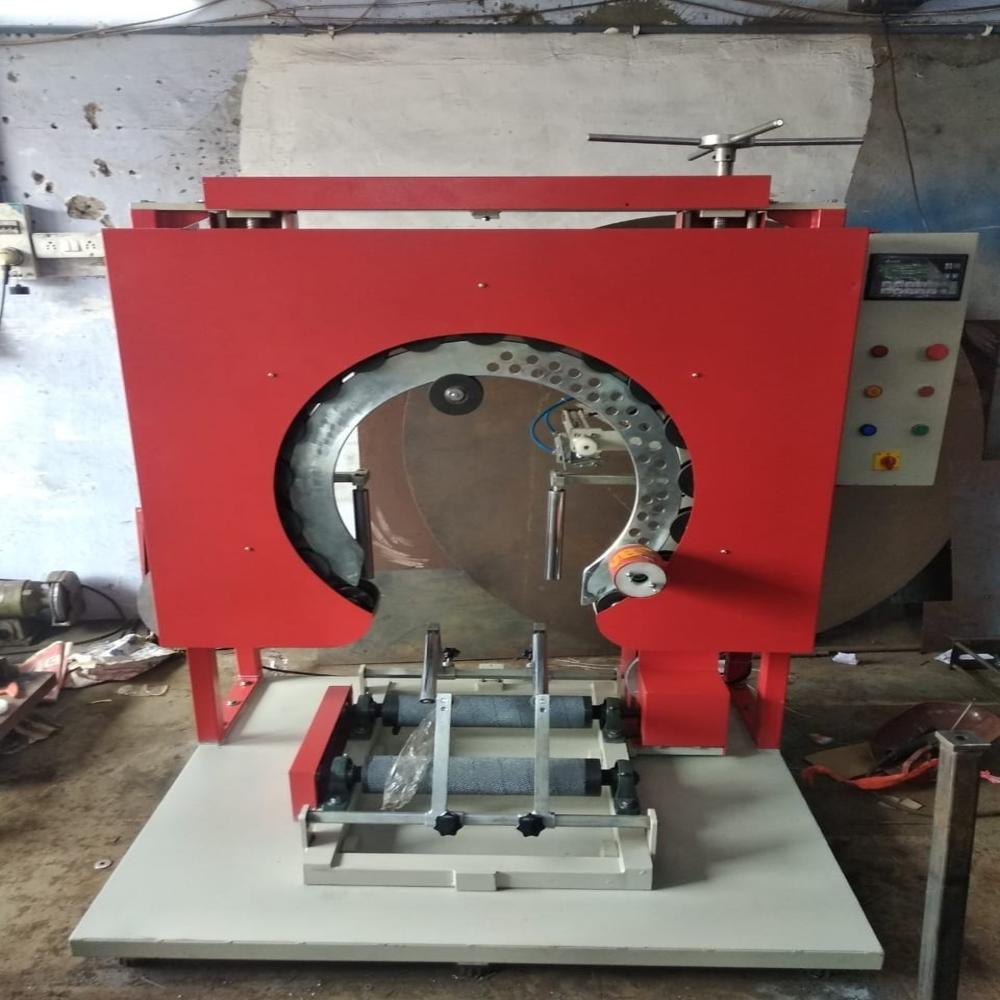

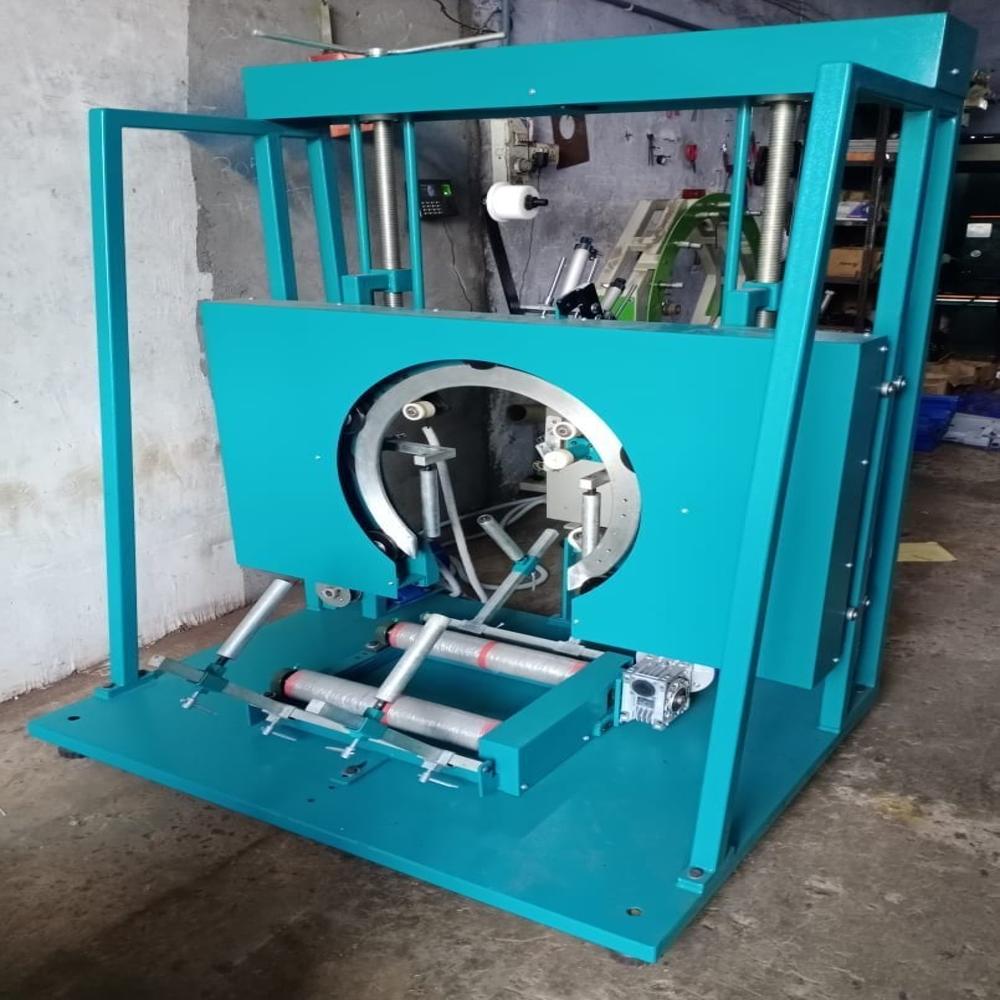

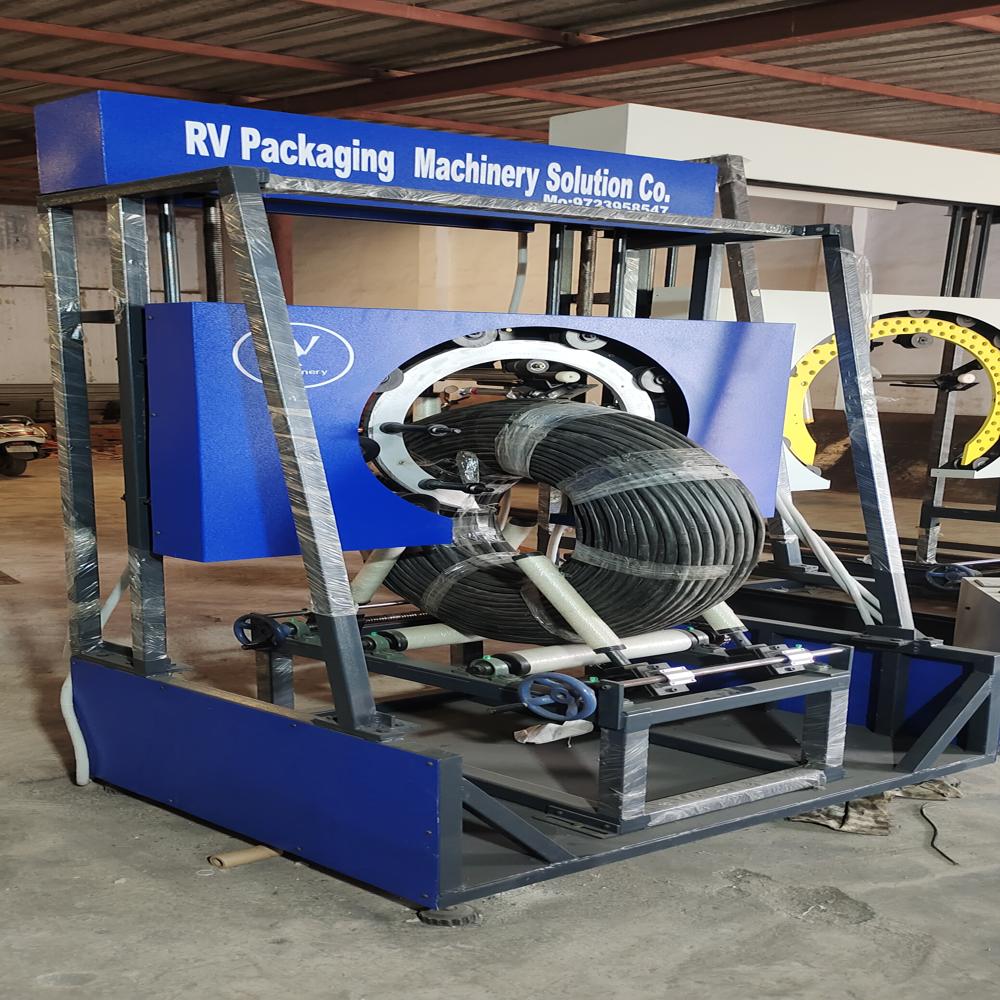

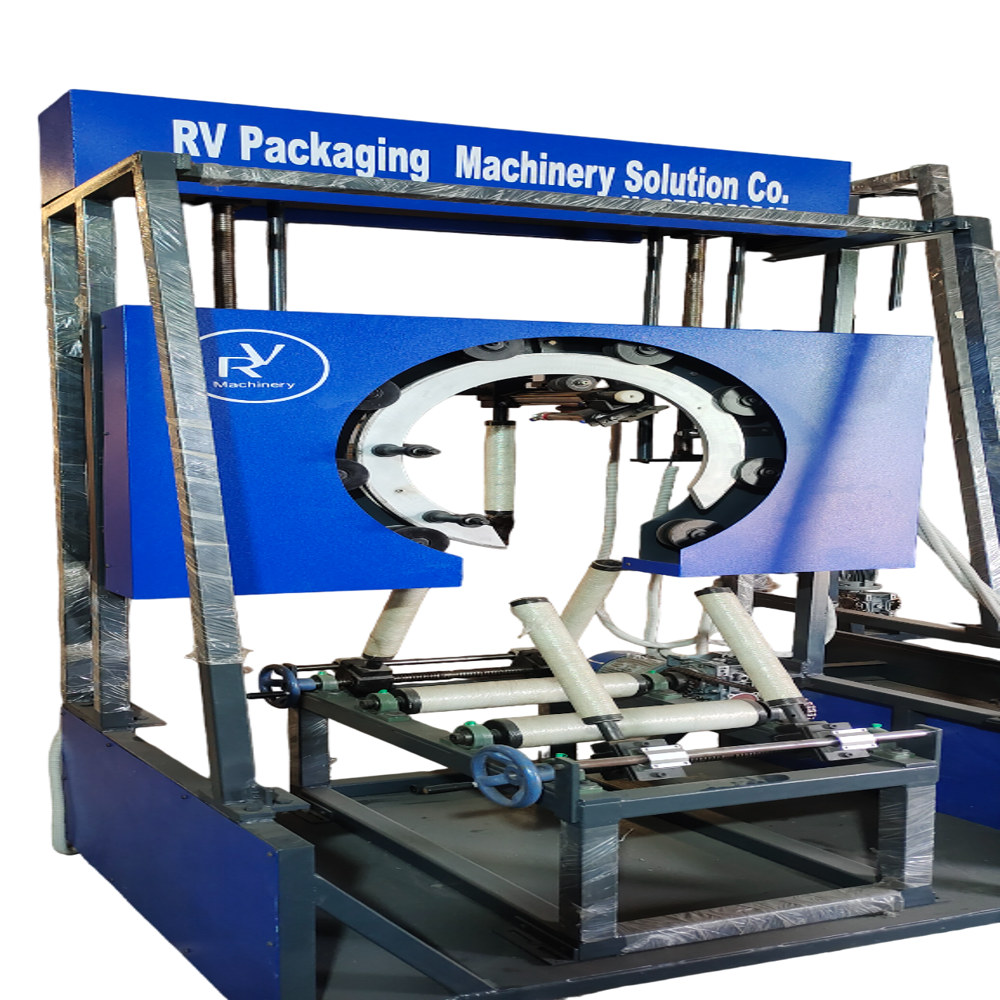

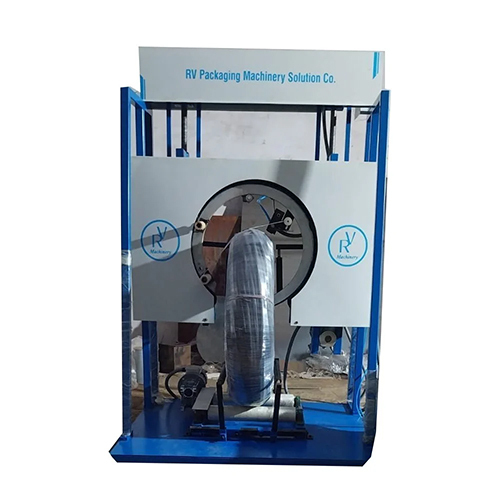

Vertical Coil Wrapping Machine

Vertical Stretch Wrapping Machine Description

A Vertical Stretch Wrapping Machine is an industrial packaging machine used to wrap stretch film vertically around palletized products or stacked loads to secure and stabilize them during storage and transportation. The machine applies stretch film by rotating either the pallet or the wrapping arm around the load, ensuring strong load containment and protection against dust, moisture, and transit damage. It is widely used in logistics, warehousing, food processing, pharmaceuticals, chemicals, and manufacturing industries.

Key Features

• Heavy-duty rotating turntable or rotary arm system
• Automatic or semi-automatic operation
• Adjustable wrapping speed and film tension
• PLC and touch-screen control panel
• Pre-stretch film carriage for film saving up to 300%
• Automatic load height sensing with photoelectric sensor
• Soft start and stop mechanism
• Multiple wrapping programs for different load sizes
• Safety sensors and emergency stop system
• Suitable for light, heavy, and unstable pallet loads

Working Principle

The palletized load is placed on the machine platform or wrapping station. In a turntable model, the pallet rotates while the film carriage moves vertically up and down, wrapping stretch film tightly around the load. In rotary arm models, the pallet remains stationary while the wrapping arm rotates around it. This process stabilizes the product and protects it from external damage during transportation and storage.

Applications

• Palletized cartons and boxes
• Food and beverage products
• Pharmaceutical and chemical industries
• Cement and bagged products
• Consumer goods packaging
• Warehouse and logistics operations
• Building materials and industrial products

Advantages

• Improves pallet load stability
• Reduces manual labor and packaging time
• Minimizes product damage during transport
• Saves stretch film consumption
• Provides dustproof and moisture-resistant packaging
• Enhances packaging consistency and appearance
• Increases warehouse productivity and safety

Types of Vertical Stretch Wrapping Machines

1. Turntable Stretch Wrapper The pallet rotates on a turntable while film wraps around it.
2. Rotary Arm Stretch Wrapper The wrapping arm rotates around a stationary pallet.
3. Robotic Stretch Wrapper Mobile robotic machine moves around the pallet for wrapping.
4. Fully Automatic Stretch Wrapper Integrated with conveyor systems for high-speed production lines.

Typical Technical Specifications

• Wrapping Capacity: 20100 pallets/hour
• Turntable Diameter: 15001800 mm
• Maximum Load Weight: Up to 2000 kg or more
• Maximum Wrapping Height: Up to 3000 mm
• Film Stretch Ratio: Up to 300%
• Power Supply: 220V / 415V
• Automation Type: Semi-Automatic / Fully Automatic
