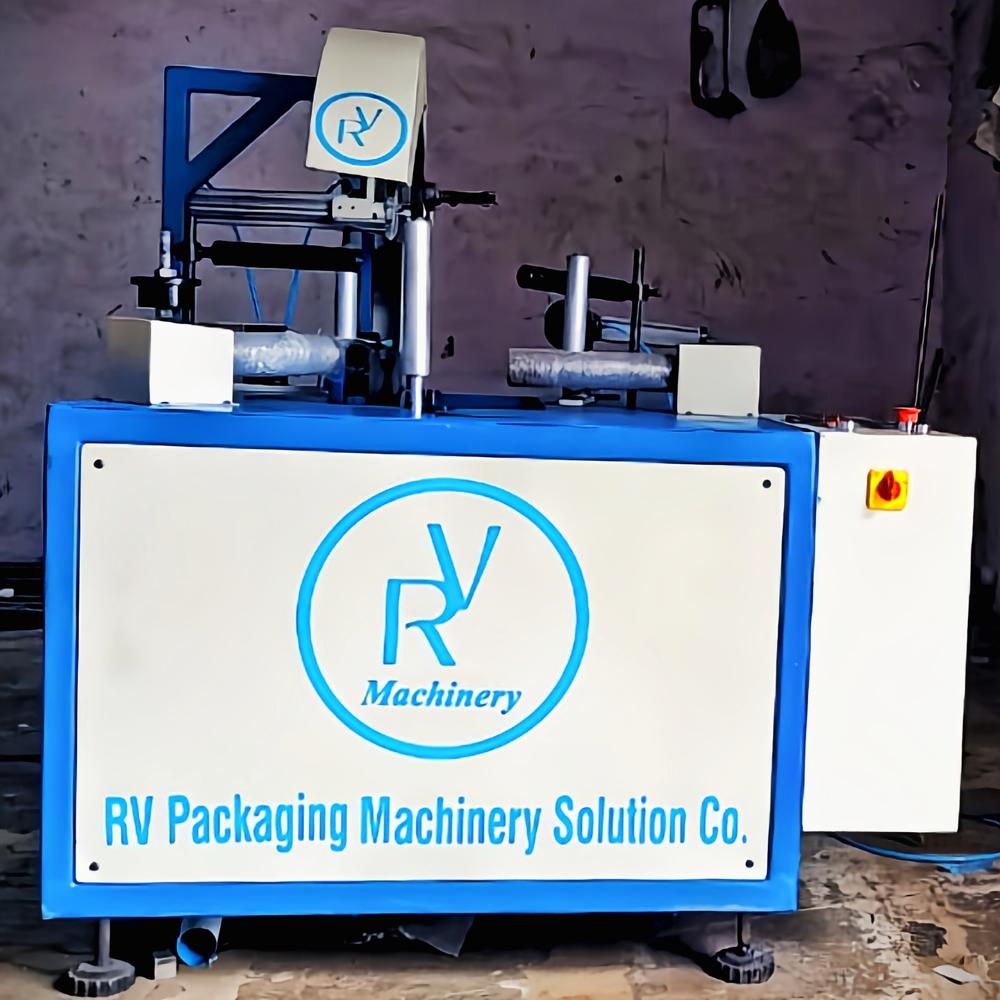

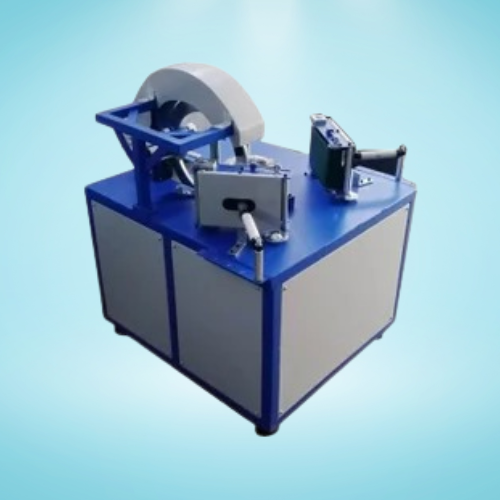

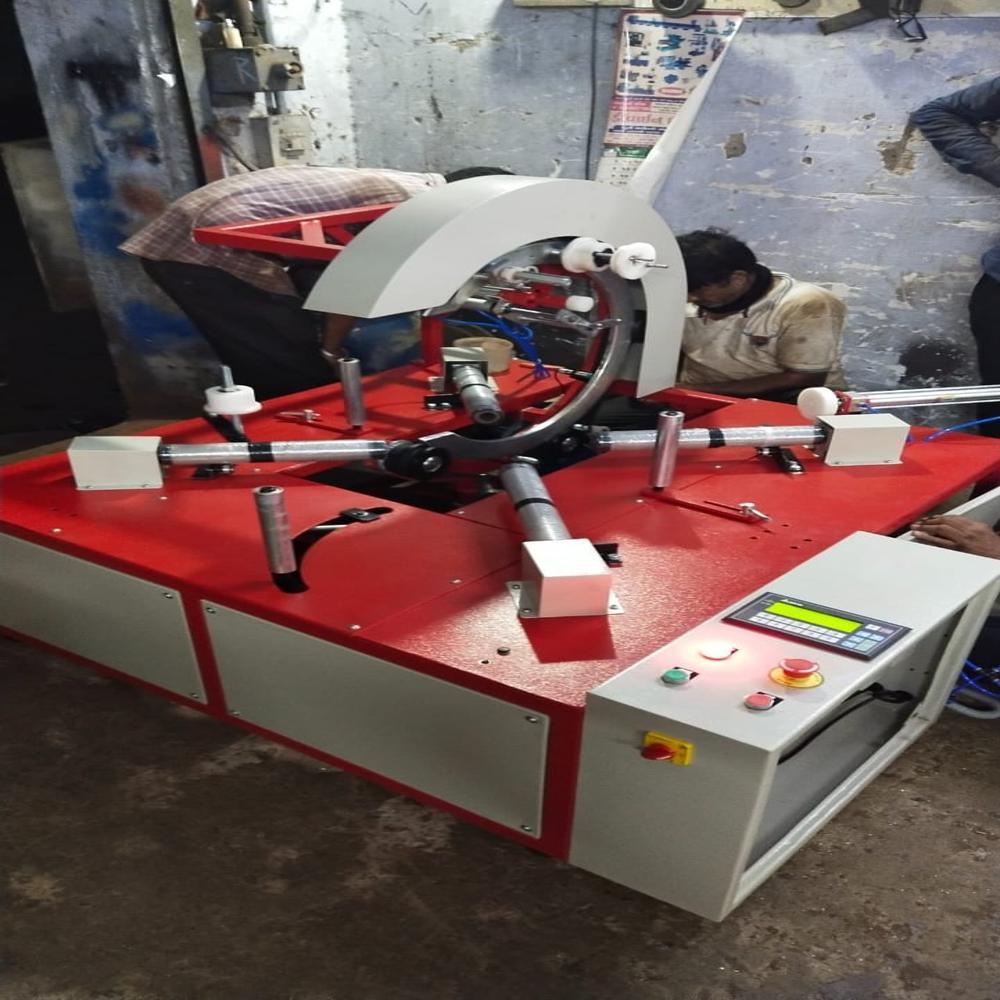

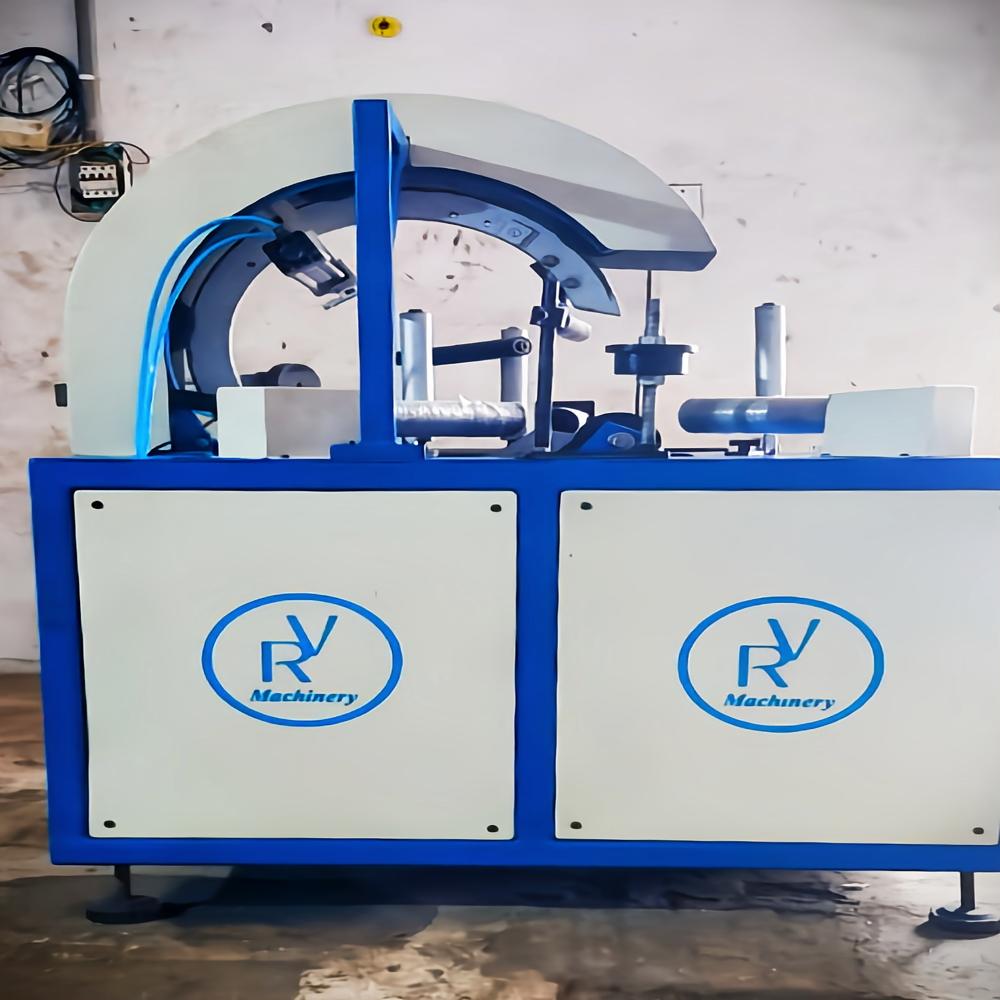

MS Wire Coil Strech Wrapping Machine

MS Wire Coil Stretch Wrapping Machine

Based on your technical specifications and industrial standards, here is a detailed description of the MS (Mild Steel) Wire Coil Stretch Wrapping Machine, designed for high-durability packaging.

Machine Overview

The MS Wire Coil Stretch Wrapping Machine is a specialized horizontal wrapping system engineered to protect mild steel wire coils from corrosion, dust, and moisture. It utilizes an "Eye-Through-Wrap" mechanism where the packaging film rotates through the center of the coil while the coil itself is rotated on heavy-duty rollers.

Key Technical Features

• Wrapping Method: Automatic wrapping cycle using LDPE stretch film, PP, or HDPE woven fabric.

• Operational Capacity: High-efficiency output of 120 to 180 coils per hour, making it ideal for continuous manufacturing environments.

• Tension Control: Precise film tensioning system to ensure a tight, uniform wrap that prevents "coil set" and shifting during transit.

• Automation Options: For heavy-duty wire coils, an Automatic Coil Loading/Unloading system is available to minimize manual handling and improve safety.

Technical Specifications (Model: RV-01-CWMH500)

• Coil Outer Diameter (OD): 240 mm to 600 mm (specific ranges include 240-340 mm, 350-500 mm, and 400-600 mm).

• Coil Inner Diameter (ID): Minimum 150 mm up to 500 mm.

• Coil Thickness/Width: 10 mm to 300 mm.

• Power Requirements: Standard 1 Phase 230 V or 3 Phase industrial supply depending on motor torque requirements.

Industrial Applications

While optimized for MS Wire, this machine is versatile enough to wrap:

• Metal Products: Binding Wire, G.I. Wire, Copper Strips, and Steel Strips.

• Piping: Garden pipes, PVC pipes, and rubber hoses.

• Specialty Items: HB Wire and Braided pipes.

Why Use Stretch Wrapping for MS Wire?

1. Rust Prevention: When used with VCI (Volatile Corrosion Inhibitor) film, it provides a chemical barrier against oxidation.

2. Stability: The tight stretch keeps the wire strands perfectly aligned, preventing tangling.

3. Cost-Efficiency: Reduces the need for expensive secondary packaging like wooden crates or heavy plastic tubs.
