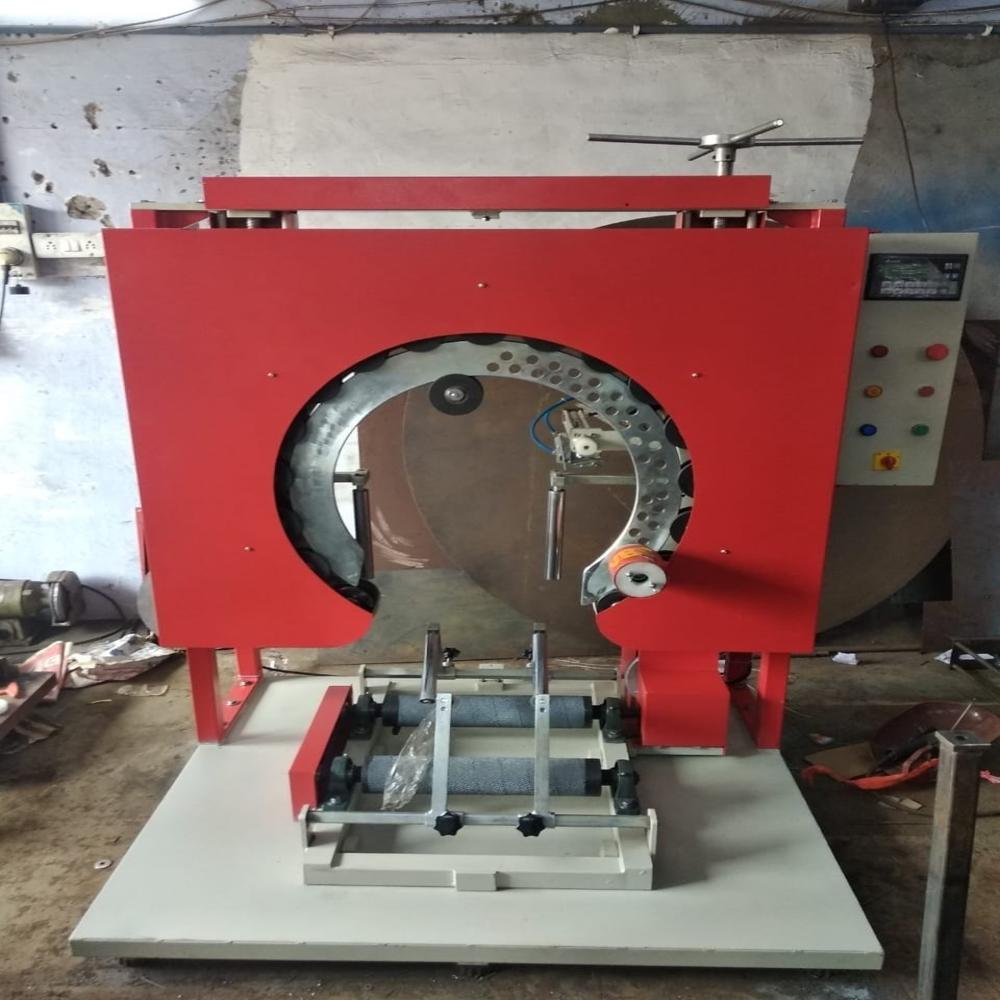

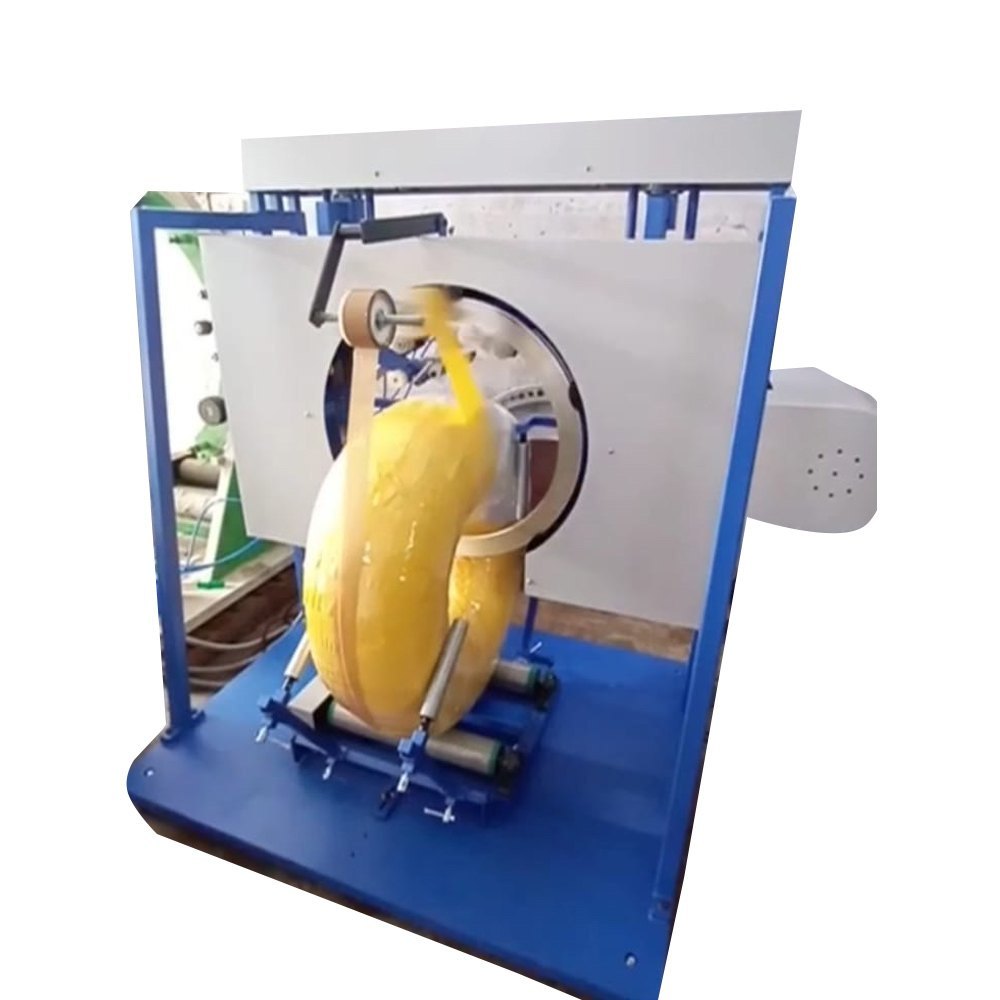

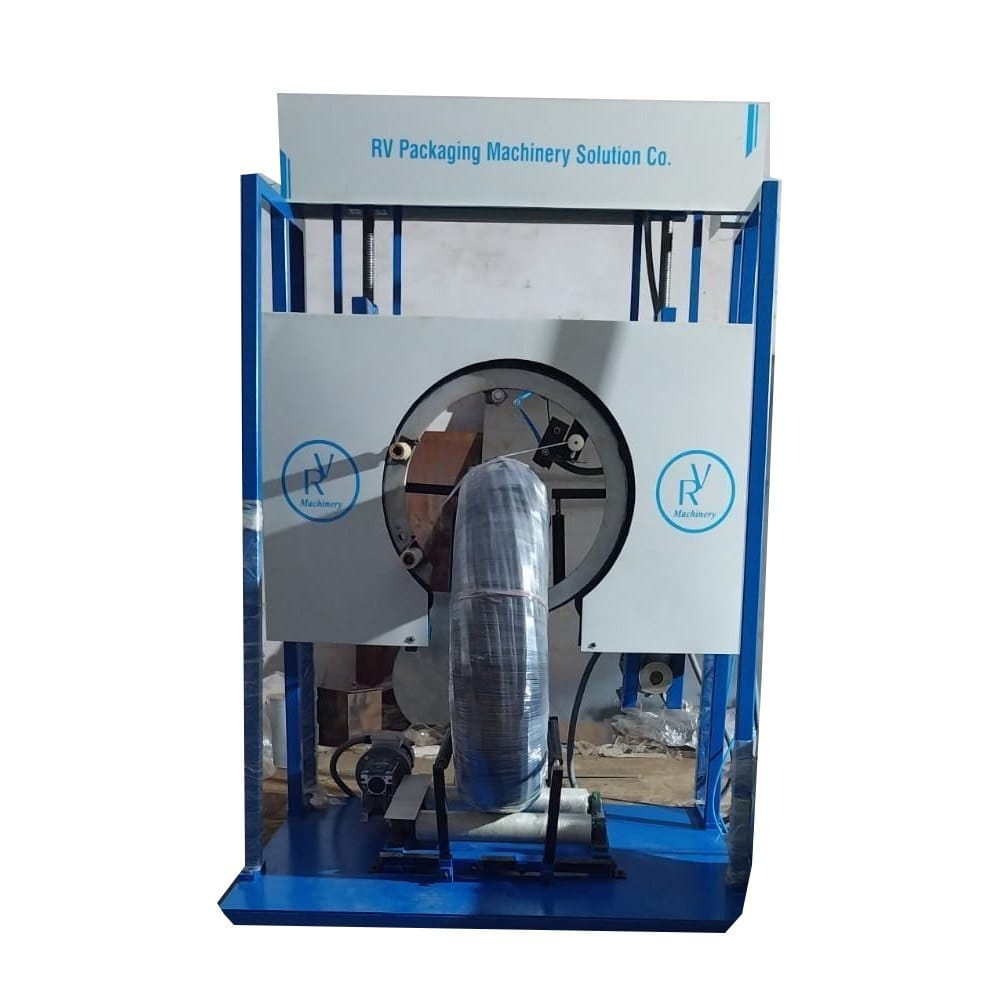

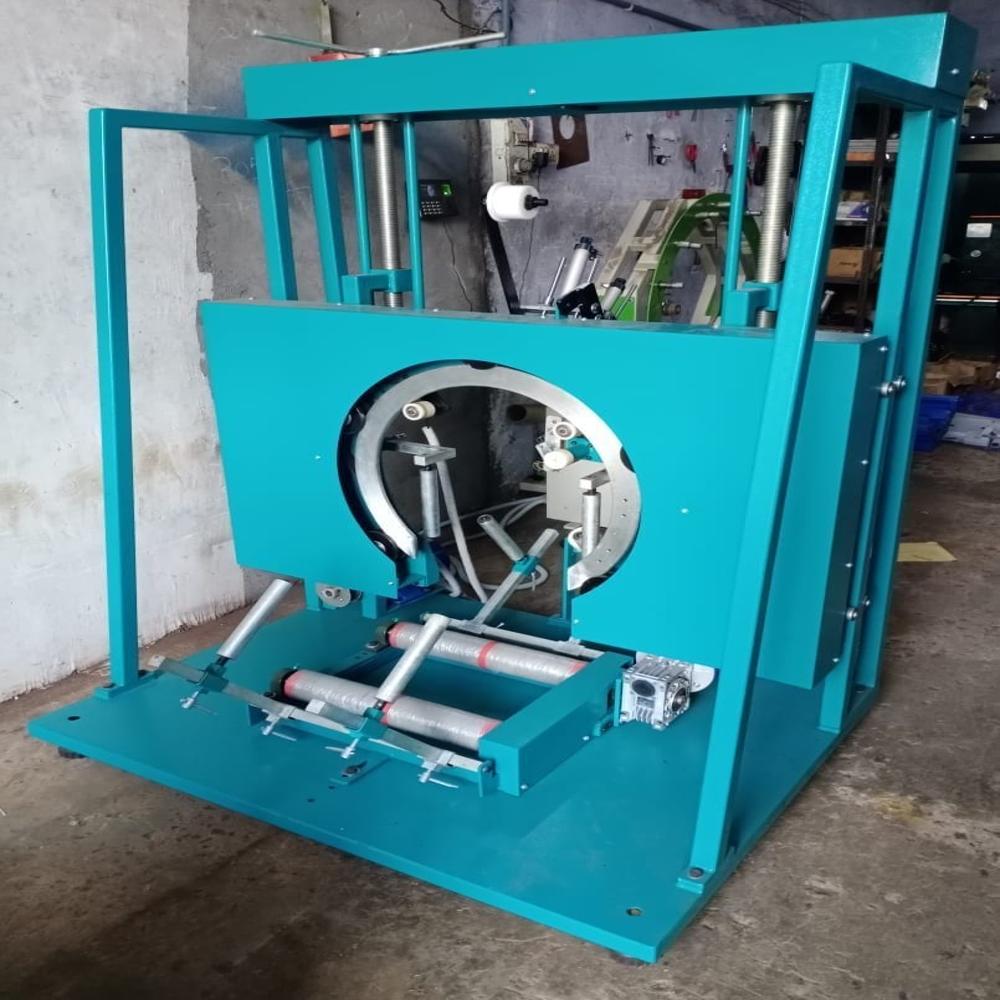

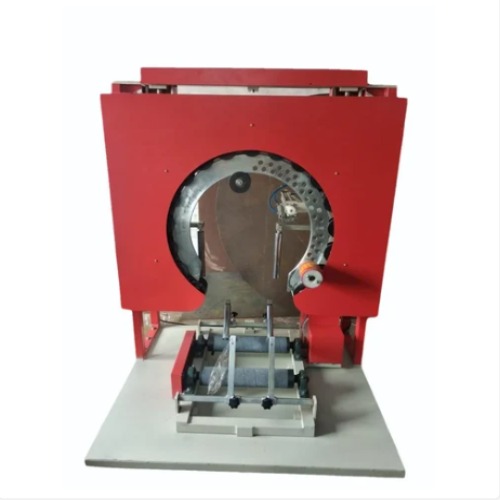

Standard Vertical Coil Wrapping Machine

Price 350000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Standard Vertical Coil Wrapping Machine Specification

Product Type
Coil Wrapping Machine

Material
Mild Steel

Capacity
60-90 Pcs/hr

Computerized
No

Automatic Grade
Automatic

Voltage
415 Volt (v)

Power
2 Horsepower (HP)

Rotating Speed
70 RPM

Overlap Scope
Adjustable

Dimension (L*W*H)
1.2 X 1.5 X 1.8 Meter (m)

Weight (kg)
300 Kilograms (kg)

Color
Powder Coated

Warranty
1 Year

Standard Vertical Coil Wrapping Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Export Market(s)
Middle East, Africa, Asia, Western Europe, North America, South America, Australia, Central America, Eastern Europe

Main Domestic Market
All India

About Standard Vertical Coil Wrapping Machine

Standard Vertical Coil Wrapping Machine Description

A Standard Vertical Coil Wrapping Machine is an industrial packaging machine designed for vertical spiral wrapping of coil-shaped products such as steel coils, wire coils, cable coils, hose pipes, bearings, and binding wire bundles. The machine wraps protective material through the eye of the coil using a vertically rotating ring system to provide secure, dustproof, moisture-resistant, and damage-free packaging during storage and transportation. It is widely used in steel plants, wire industries, cable manufacturing units, and industrial packaging applications.

Key Features

Vertical ring-type stretch wrapping system
Suitable for small, medium, and standard coil sizes
Adjustable film overlap and tension control
PLC and HMI-based control system
Variable ring rotation speed with VFD drive
Heavy-duty mild steel construction
Rubber-coated support rollers for smooth coil rotation
Automatic or semi-automatic operation
Compact design with low floor space requirement
Compatible with stretch film, VCI film, HDPE film, woven tape, and paper wrapping materials

Working Principle

The coil is placed vertically on support rollers or a rotating cradle. During operation, the rollers rotate the coil while the wrapping ring revolves around the coil carrying the stretch film roll. The wrapping material is applied spirally with adjustable overlap and tension, ensuring uniform and secure packaging. This process protects the coil from moisture, corrosion, dust, scratches, and transit damage.

Applications

Steel wire coil packaging
Cable and hose pipe coil wrapping
Bearing and tire wrapping
Copper and aluminum strip coil packaging
GI binding wire packaging
Industrial and export packaging applications

Advantages

Provides tight and uniform coil packaging
Reduces manual labor and packaging time
Protects coils from moisture, dust, and corrosion
Improves packaging consistency and product appearance
Minimizes packaging material wastage
Compact structure suitable for limited floor space
Increases operational safety and packaging productivity

Typical Technical Specifications

Parameter	Specification
Machine Type	Standard Vertical Coil Wrapping Machine
Wrapping Method	Spiral / Periphery Wrapping
Automation Grade	Semi-Automatic / Automatic
Coil Inner Diameter (ID)	300 1200 mm
Coil Outer Diameter (OD)	500 2500 mm
Coil Width	50 600 mm
Coil Weight Capacity	50 6000 kg
Ring Rotation Speed	20 120 RPM
Wrapping Speed	20 60 sec/coil
Film Overlap	20% 90% Adjustable
Wrapping Material	Stretch Film / HDPE / VCI Film / Woven Tape
Film Width	50 125 mm
Power Supply	380V 440V, 3 Phase, 50 Hz
Power Consumption	2 7 kW
Control System	PLC + HMI Touch Screen
Drive System	AC Frequency Drive / VFD
Roller Type	Rubber Coated M.S. Rollers
Machine Structure	Heavy Duty Mild Steel
Safety Features	Emergency Stop, Safety Guard, Soft Start & Stop
