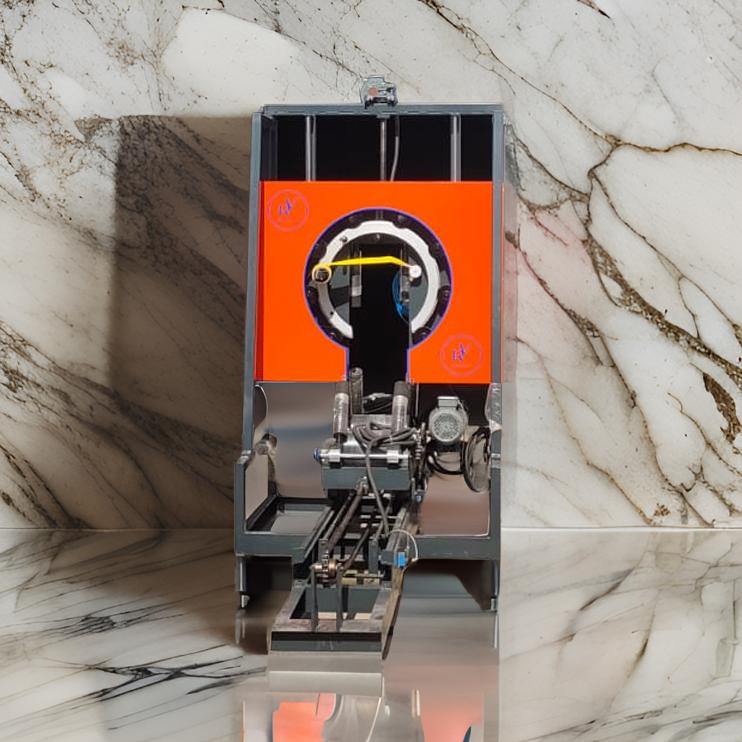

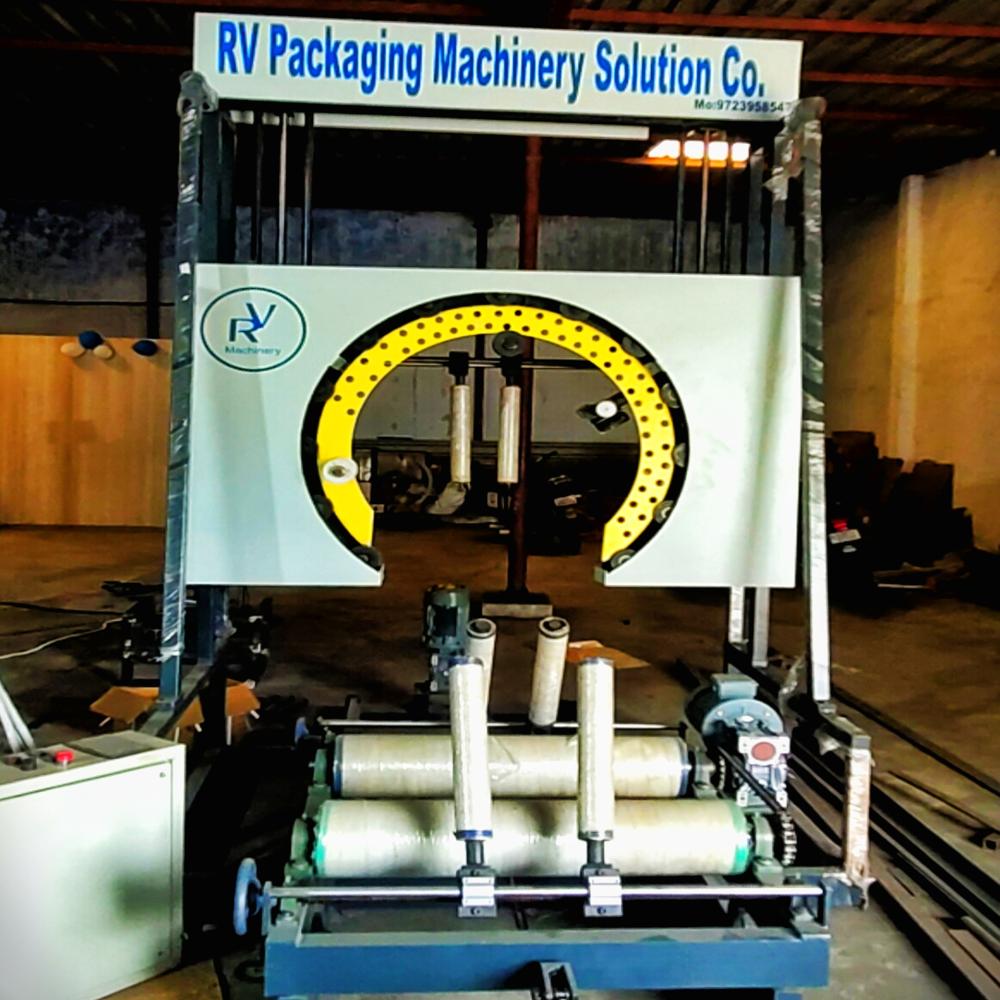

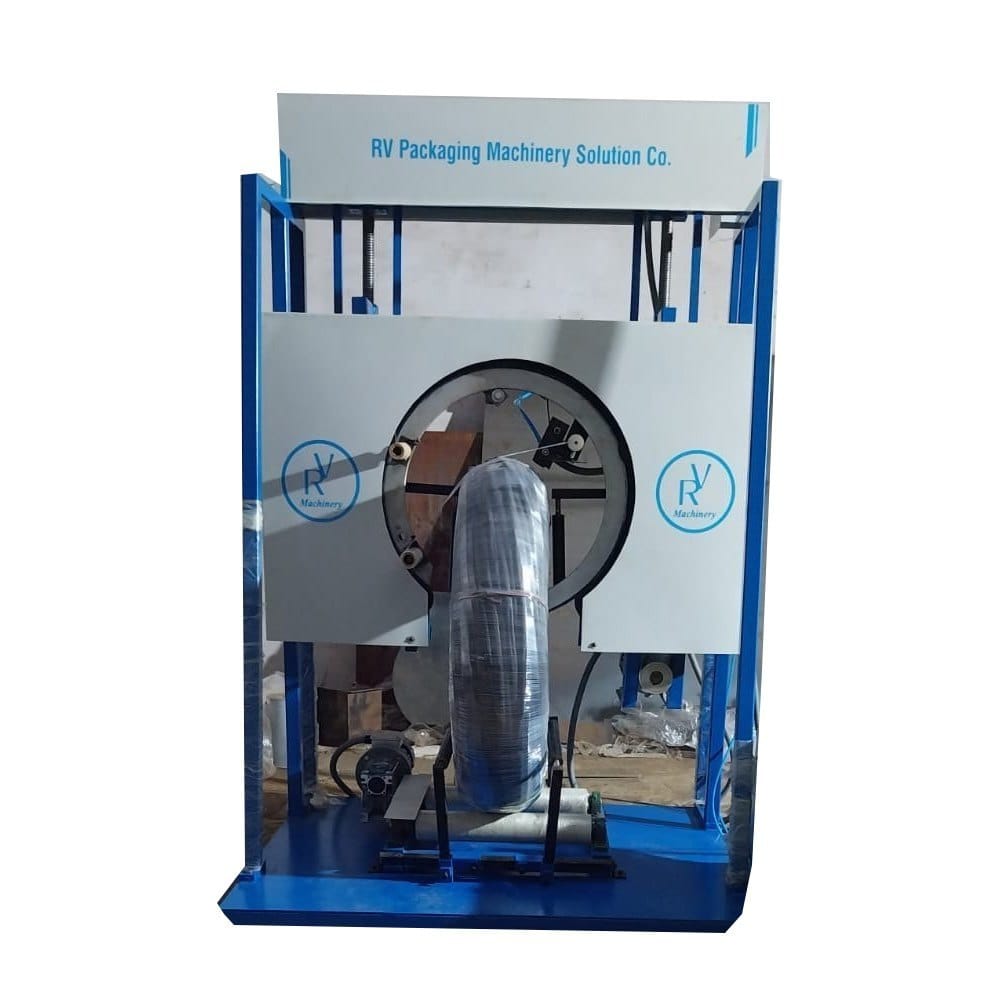

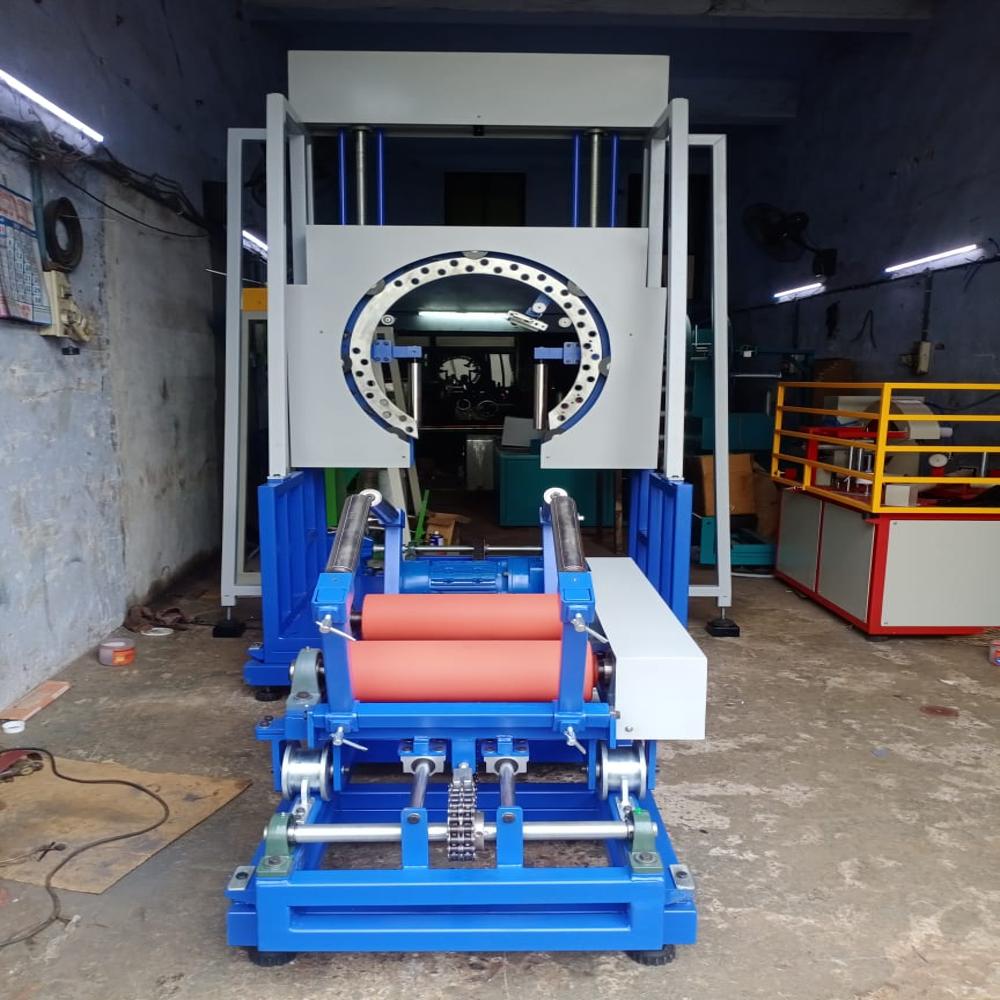

MS Vertical Coil Wrapping Machine Description

An MS Vertical Coil Wrapping Machine is a heavy-duty industrial packaging machine manufactured with a Mild Steel (MS) structure and designed for vertical spiral wrapping of coil-shaped products such as steel coils, wire coils, cable coils, hose pipes, copper strips, and binding wire bundles. The machine wraps stretch film, HDPE film, or protective packaging material through the eye of the coil to provide secure, dustproof, moisture-resistant, and damage-free packaging during storage and transportation. It is widely used in steel plants, wire industries, cable manufacturing units, and industrial packaging applications.

Key Features

Heavy-duty mild steel (MS) machine construction
Vertical spiral / periphery wrapping system
Suitable for wire coils, steel coils, and cable bundles
Adjustable film overlap and tension control
PLC and HMI-based automatic operation
Variable ring rotation speed with VFD drive
Rubber-coated powered rollers for smooth coil rotation
Automatic film cutting and holding system
Compact design with vibration-free operation
Compatible with stretch film, HDPE film, woven tape, and VCI film

Working Principle

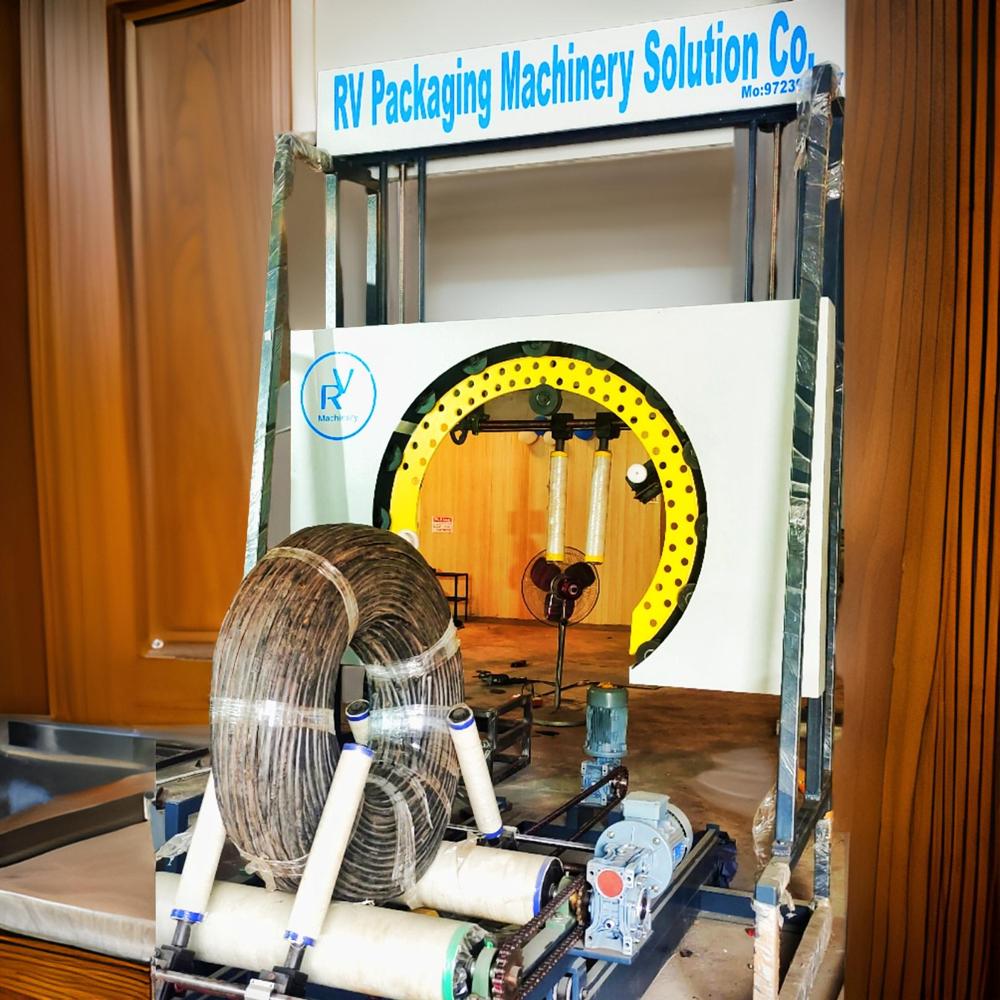

The coil is placed vertically on powered support rollers. During operation, the rollers rotate the coil while the wrapping ring rotates around the coil carrying the stretch film roll. The film wraps spirally through the eye of the coil with adjustable overlap and tension. This process provides tight and uniform packaging that protects the product from dust, corrosion, scratches, and transit damage.

Applications

Steel wire coil wrapping
GI binding wire packaging
Copper and aluminum coil packaging
Cable and hose pipe coil wrapping
CHQ wire and strip coil packaging
Tire and bearing wrapping
Industrial export packaging

Advantages

Provides strong and uniform coil packaging
Protects products from moisture and rust
Reduces manual labor and packaging time
Improves packaging consistency and appearance
Minimizes packaging material wastage
Suitable for continuous industrial operation
Compact structure saves factory floor space

Typical Technical Specifications

Parameter	Specification
Machine Type	MS Vertical Coil Wrapping Machine
Wrapping Method	Spiral / Periphery Stretch Wrapping
Automation Grade	Semi-Automatic / Automatic
Structure Material	Heavy Duty Mild Steel (MS)
Coil Inner Diameter (ID)	300 1200 mm
Coil Outer Diameter (OD)	400 2500 mm
Coil Width	50 600 mm
Coil Weight Capacity	5 6000 kg
Ring Rotation Speed	20 120 RPM
Wrapping Speed	20 60 sec/coil
Film Overlap Adjustment	20% 90% Adjustable
Wrapping Material	Stretch Film / HDPE / VCI Film / Woven Tape
Film Width	50 125 mm
Power Supply	380V 440V, 3 Phase, 50 Hz
Power Consumption	2 7 kW
Drive System	AC Frequency Drive / VFD
Control System	PLC + HMI Touch Screen
Roller Type	Rubber Coated M.S. Rollers
Cutter Type	Automatic HSS Cutter
Machine Dimensions	Approx. 1250 1250 1250 mm
Safety Features	Emergency Stop, Safety Interlock, Soft Start & Stop
