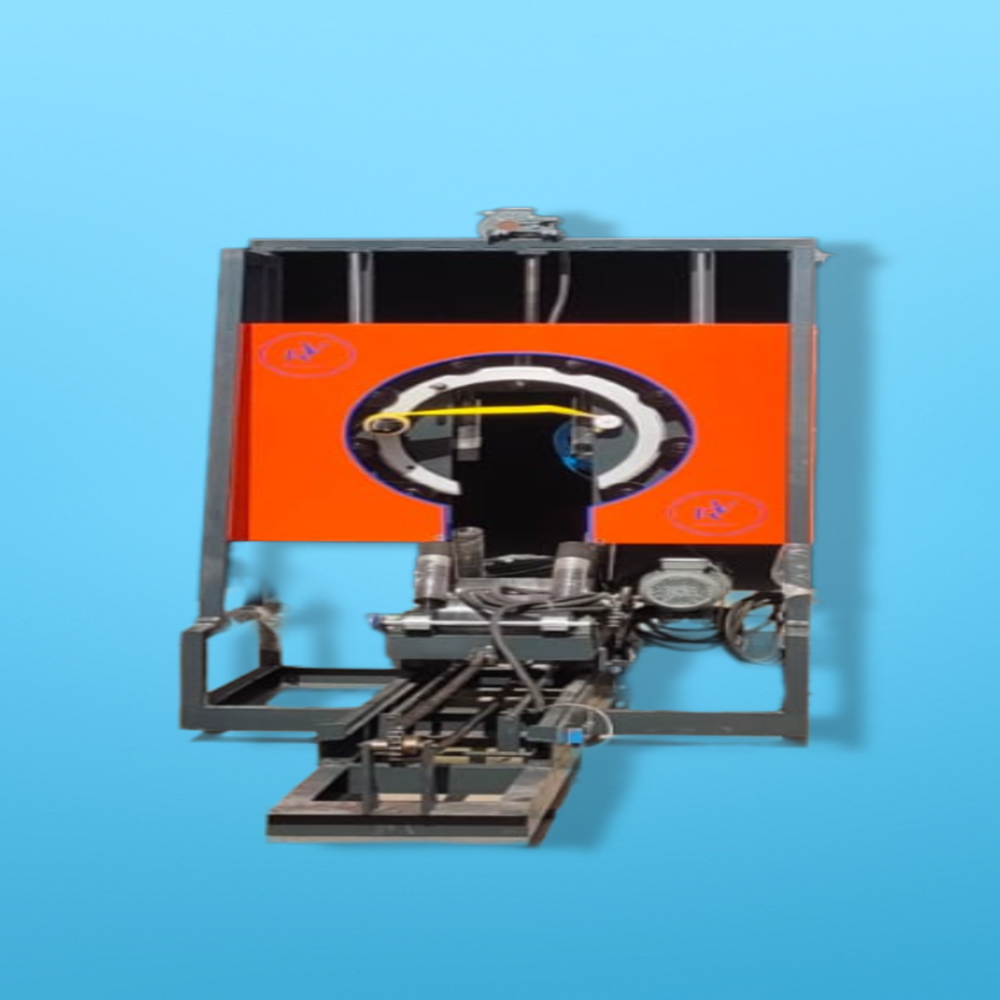

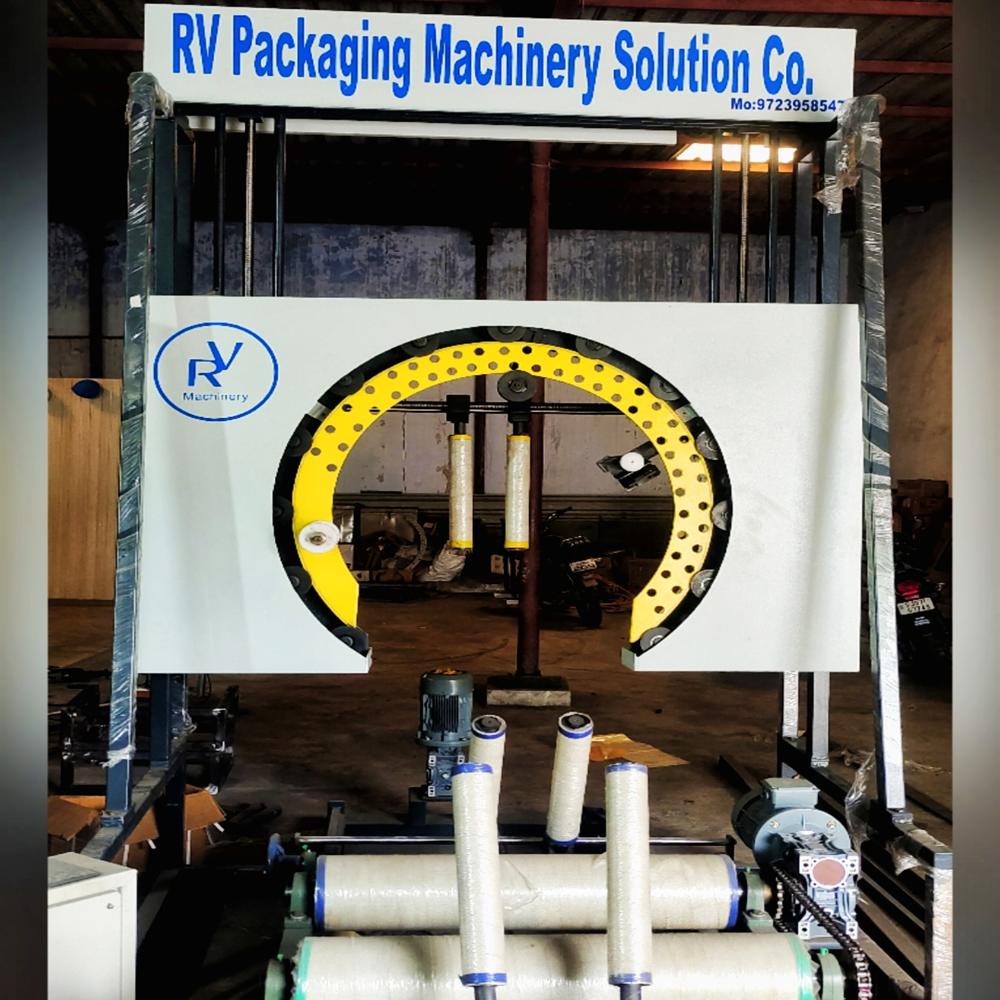

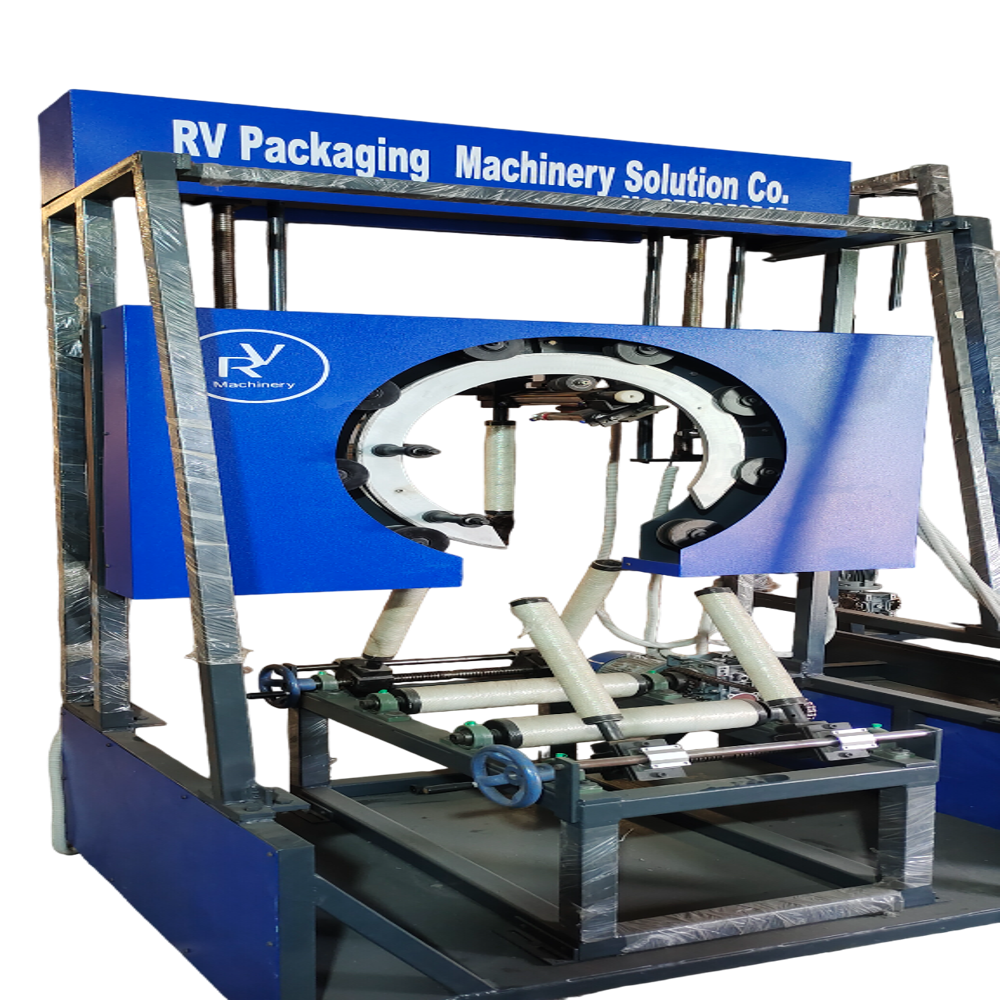

Vertical Coil Wrapping Machine Description & Technical Specifications

A Vertical Coil Wrapping Machine is an industrial packaging system designed for wrapping steel coils, copper coils, wire coils, hose coils, bearing rings, tires, and similar circular products in a vertical position. The machine provides secure, moisture-resistant, dust-proof, and damage-free packaging using stretch film, VCI film, woven fabric, paper, or other wrapping materials.

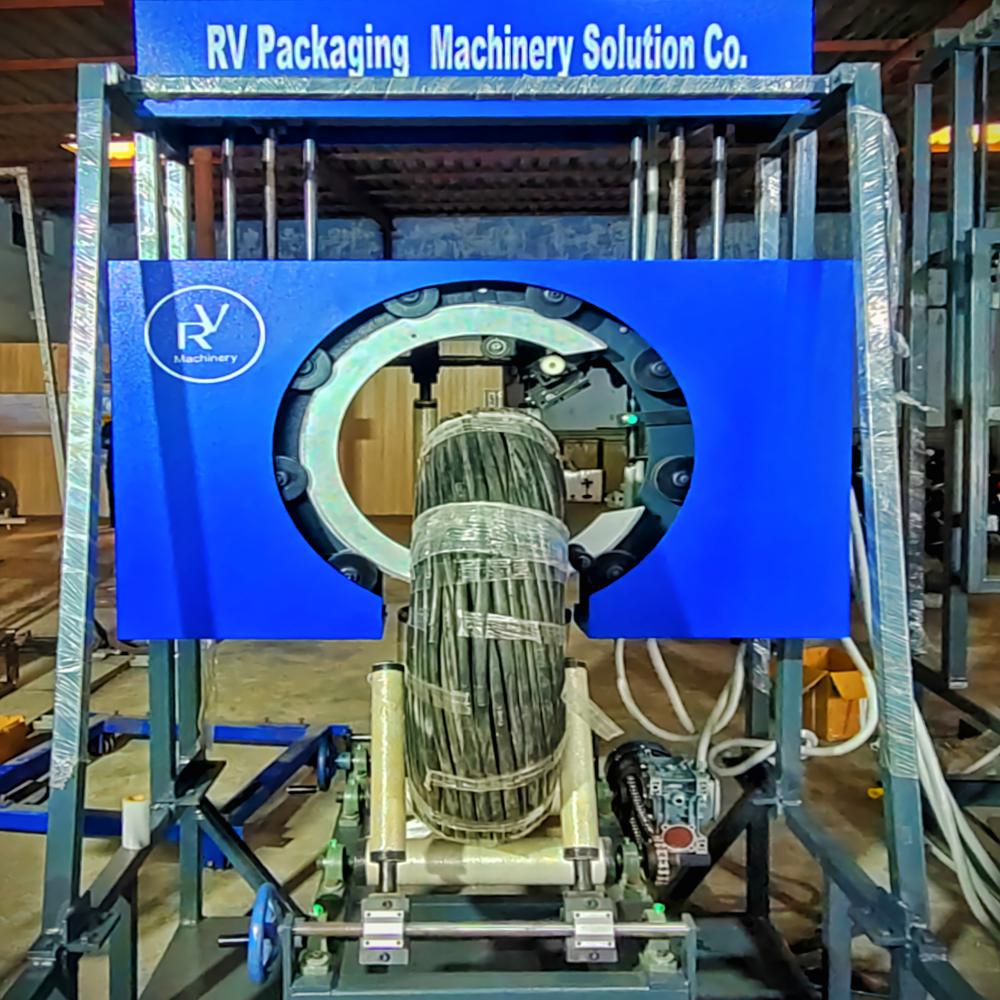

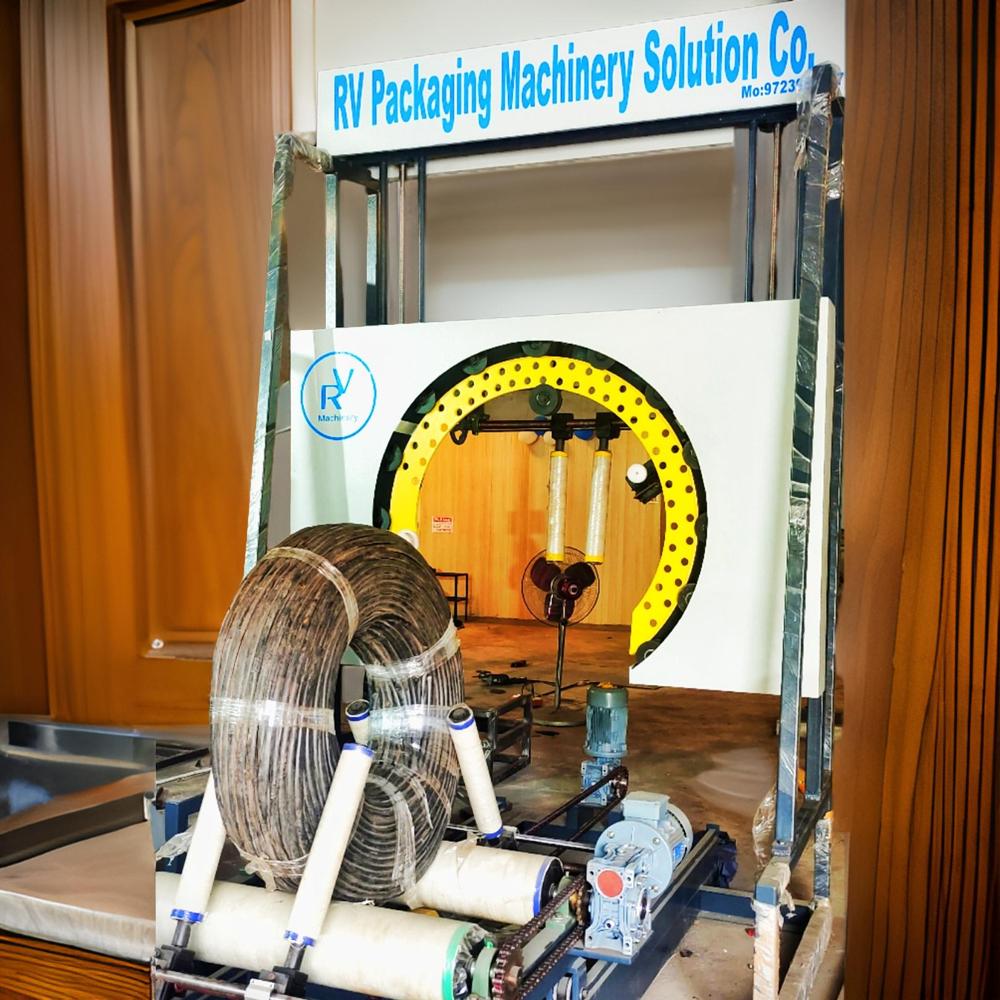

The coil is placed vertically on support rollers, and the wrapping ring rotates around the product to apply packaging material evenly across the entire surface. These machines are widely used in the steel, wire, cable, automotive, and metal-processing industries.

Main Features

• Heavy-duty vertical structure
• Automatic or semi-automatic operation
• Adjustable wrapping tension and overlap
• PLC + HMI touch screen control
• Soft start and stop system
• Roller conveyor loading/unloading
• Sensor-based coil positioning
• Safety guards and emergency stop
• Suitable for stretch film, VCI paper, HDPE, woven fabric, etc.
• Compact and low-maintenance design

Working Principle

1. Coil is loaded vertically on support rollers.
2. Coil rotates slowly using powered rollers.
3. Wrapping ring rotates around the coil.
4. Packaging material is applied with adjustable overlap.
5. Wrapping cycle completes automatically.
6. Coil is unloaded for storage or dispatch.

Technical Specifications (Typical)

Applications

• Steel coil packaging
• Copper strip coils
• Aluminum coils
• Wire & cable coils
• Bearing rings
• Hose and pipe coils
• Automotive components

Advantages

• Reduces packaging labor
• Improves product protection
• Prevents corrosion and dust damage
• Uniform and professional packaging
• High-speed operation
• Low packaging material wastage

Optional Attachments

• Automatic conveyor system
• Top press device
• Weighing system
• Barcode printer
• Remote monitoring
• Moisture-proof wrapping unit
• Automatic film cutter
