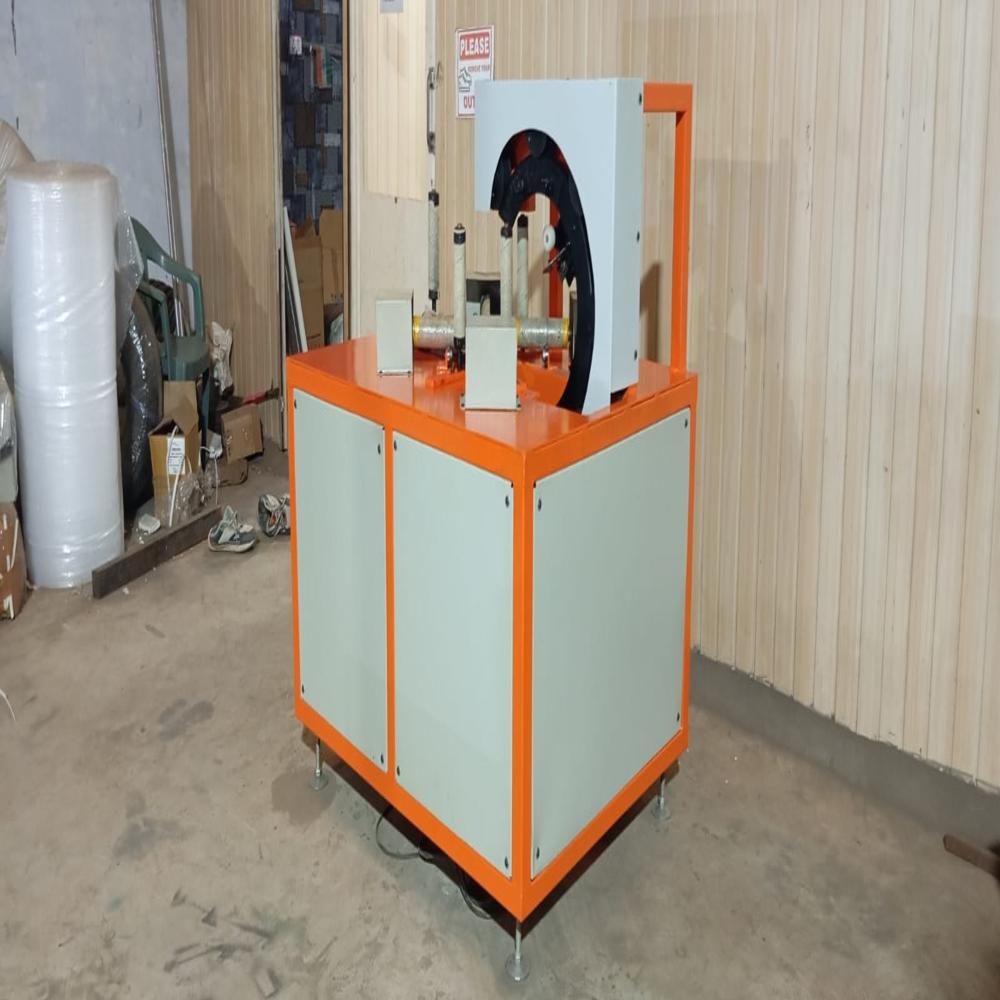

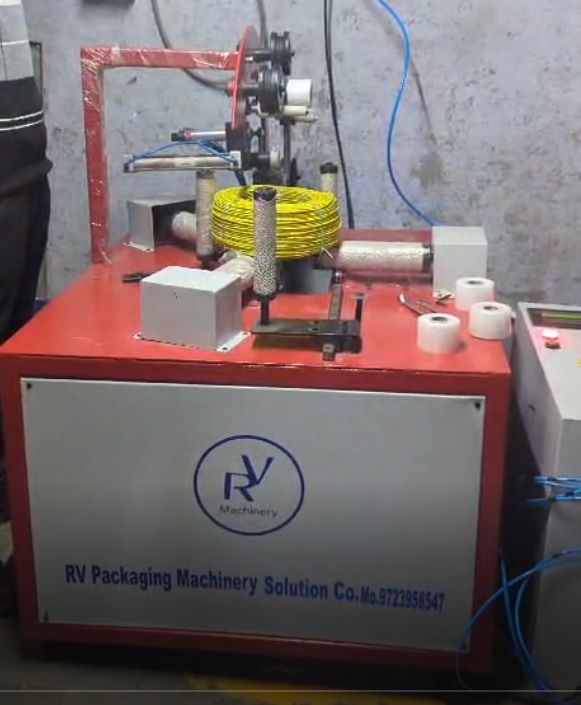

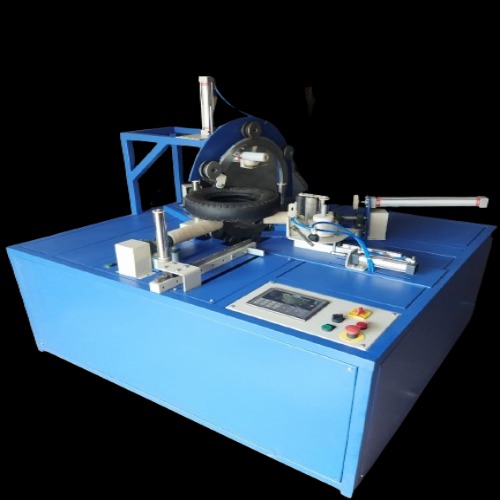

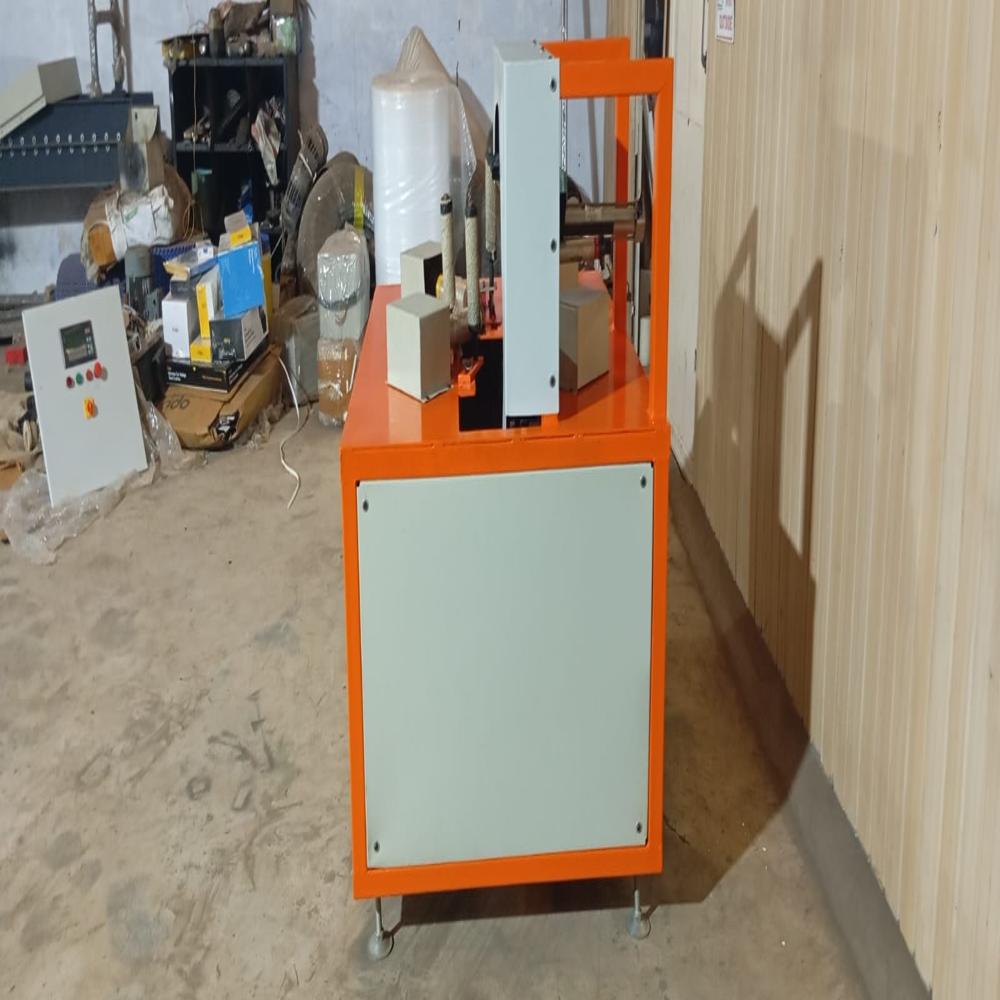

Cable Coil Wrapping Machine

Cable Coil Wrapping Machine Description

A Cable Coil Wrapping Machine is a specialized industrial packaging machine designed for wrapping cable coils, wire coils, hose coils, and similar circular products using stretch film, PE film, HDPE film, paper, or woven tape. The machine performs spiral or orbital wrapping through the eye of the coil to provide secure, dustproof, moisture-resistant, and damage-free packaging during storage and transportation. It is widely used in cable manufacturing plants, wire industries, electrical industries, telecom sectors, and industrial packaging applications.

Key Features

• Suitable for cable coils, wire coils, hose coils, and pipe coils
• Spiral / orbital wrapping through the eye
• Adjustable film overlap and tension control
• PLC and HMI-based automatic control system
• Variable ring rotation speed with VFD drive
• Automatic film cutting and clamping system
• Heavy-duty mild steel structure
• Rubber-coated support rollers for smooth coil rotation
• Low maintenance and vibration-free operation
• Compatible with stretch film, PE film, HDPE film, paper, and woven tape

Working Principle

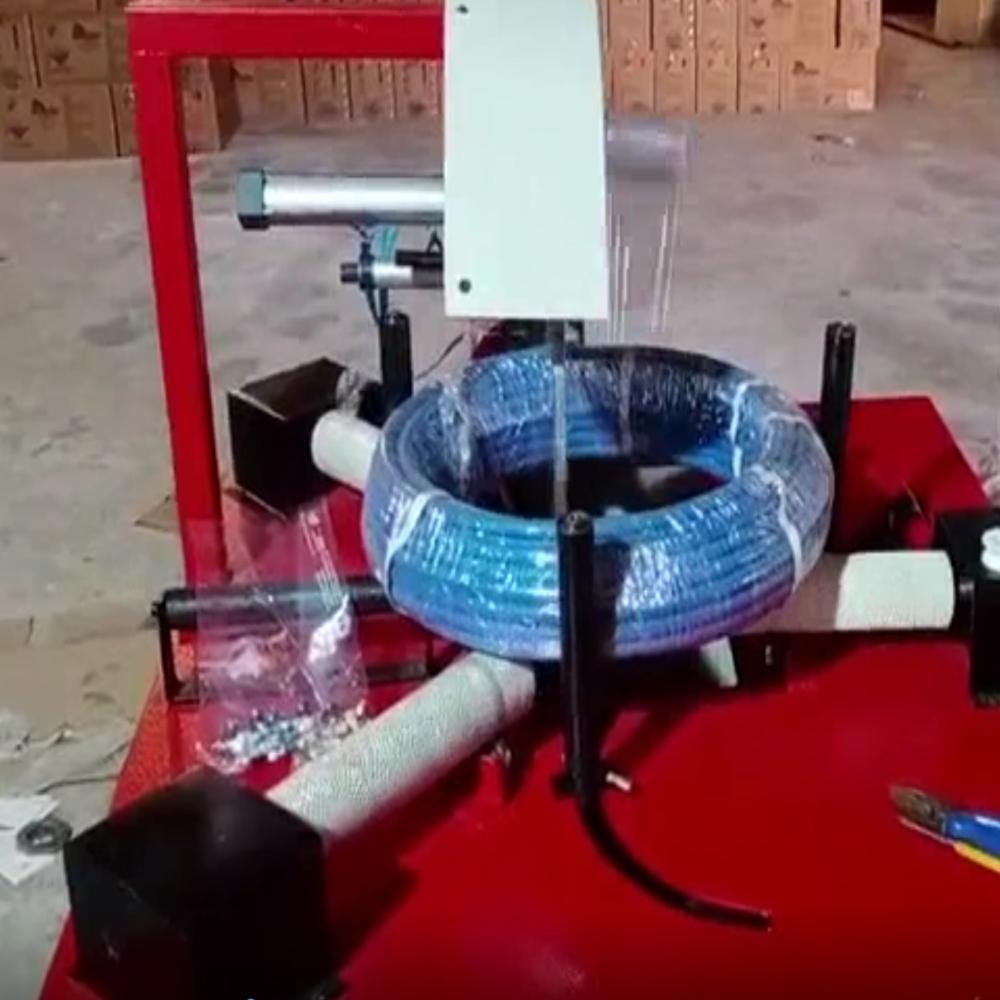

The cable coil is placed on powered support rollers or a wrapping station. During operation, the rollers rotate the cable coil while a rotating ring carries the wrapping material around the coil in a spiral motion. The wrapping material overlaps evenly with controlled tension to provide compact and secure packaging that protects the cable from dust, moisture, abrasion, and transit damage.

Applications

• Electrical cable coil packaging
• Telecom cable wrapping
• Wire and hose coil packaging
• Fiber optic cable coil wrapping
• PVC and flexible pipe packaging
• Industrial wire bundle packaging
• Export packaging for cable industries

Advantages

• Provides tight and uniform wrapping
• Protects cable coils from moisture, dust, and scratches
• Reduces manual labor and packaging time
• Improves packaging appearance and handling safety
• Minimizes packaging material wastage
• Increases packaging productivity and consistency
• Suitable for high-speed industrial packaging lines

Types of Cable Coil Wrapping Machines

1. Vertical Cable Coil Wrapper Suitable for lightweight and medium cable coils.
2. Horizontal Cable Coil Wrapper Designed for larger and heavier cable coils.
3. Semi-Automatic Cable Wrapper Manual loading with automatic wrapping cycle.
4. Automatic Cable Coil Wrapping Machine Fully automated with conveyor integration.
5. Cable Coiling and Wrapping Machine Combined coiling and wrapping solution for production lines.

Typical Technical Specifications
