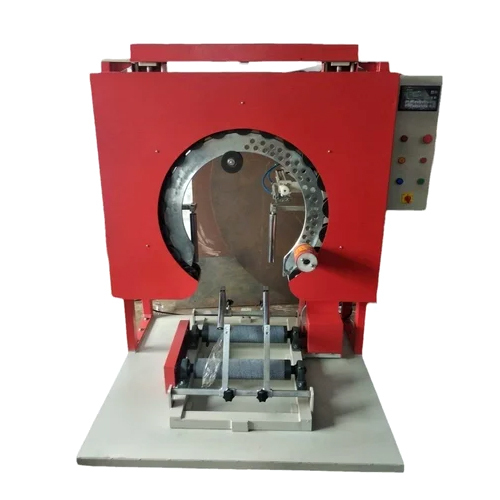

Vertical Coil Wrapping Machine

Vertical Coil Wrapping Machine with Motorized Ring Up-Down

A Vertical Coil Wrapping Machine with Motorized Ring Up-Down is an advanced industrial packaging solution specially designed for wrapping coil-shaped products such as steel coils, wire coils, copper coils, hose coils, cable rolls, bearings, and tire coils in a vertical position. The machine is equipped with a motorized ring lifting mechanism that automatically moves the wrapping ring up and down during operation, ensuring uniform and complete wrapping coverage across the entire coil surface.

The machine operates through a vertically rotating wrapping ring while the coil rotates on powered support rollers or a trolley system. The synchronized movement of the motorized ring and rotating coil provides tight, even, and secure wrapping with adjustable overlap and tension control. This advanced mechanism improves packaging quality, reduces manual intervention, and ensures high-speed operation for industrial packaging applications.

The motorized ring up-down system enables automatic positioning according to different coil widths and diameters, making the machine highly suitable for variable-size products. The integrated trolley or movable coil carriage allows safe loading and unloading of heavy coils while minimizing operator effort and enhancing workplace safety.

Key Features

• Motorized ring up-down movement for uniform wrapping
• Heavy-duty vertical ring wrapping structure
• Automatic or semi-automatic operation
• Adjustable wrapping overlap and film tension
• PLC-based control system with touchscreen HMI
• Variable frequency drive for smooth speed control
• Compatible with stretch film, VCI film, woven tape, and paper
• Coil trolley system for easy loading and unloading
• Soft start and soft stop mechanism
• Emergency stop and safety interlock protection
• Low vibration and stable operation
• Reduced packaging material consumption

Applications

• Steel slit coils
• Copper and aluminum coils
• Wire and cable coils
• Hose and pipe coils
• Bearing and tire packaging
• Industrial ring-shaped products

---

Technical Specifications

Parameter	Specification
Machine Type	Vertical Coil Wrapping Machine with Motorized Ring Up-Down
Coil Weight Capacity	50 kg 6000 kg
Coil Inner Diameter (ID)	250 mm 1200 mm
Coil Outer Diameter (OD)	500 mm 2500 mm
Coil Width	50 mm 600 mm
Wrapping Material	LLDPE Stretch Film / VCI Film / Woven Tape / Paper
Film Width	Up to 200 mm
Film Thickness	23 50 Micron
Ring Movement	Motorized Up-Down System
Wrapping Speed	20 60 sec per coil
Ring Rotation Speed	Variable Frequency Controlled
Overlap Range	20% 90% Adjustable
Control System	PLC with Touchscreen HMI
Power Supply	380V 440V, 3 Phase, 50/60 Hz
Power Consumption	2 kW 7 kW
Drive System	AC Motor with VFD Control
Machine Structure	Heavy-Duty Mild Steel Fabrication
Safety Features	Emergency Stop, Safety Guard, Interlock System
Operation Mode	Semi-Automatic / Fully Automatic

Advantages

•  Provides uniform and complete coil wrapping
• Improves packaging speed and productivity
• Reduces manual handling and labor cost
• Ensures moisture-proof, dust-proof, and anti-corrosion protection
• Suitable for different coil sizes with automatic ring positioning
• Enhances operator safety and machine efficiency
• Ideal for export-quality industrial packaging

Vertical Coil Wrapping Machines with Motorized Ring Up-Down systems are widely used in steel processing plants, wire industries, cable manufacturing units, and industrial packaging lines where high-speed, reliable, and professional coil packaging is required.
